Chassis

  • Type: XXV20

Engine 2.5L 4-Cylinder DOHC

  • Recommended Oil viscosity: 0W-20

  • Recommended Engine Oil: API

  • Oil capacity: 4.8 qt

Spark Plug Gap

  • 2.5L 4-Cylinder: 0.031''

Engine 3.5L 6-Cylinder DOHC

  • Recommended Oil viscosity: 0W-20

  • Recommended Engine Oil: SN/RC

  • Oil capacity: 5.7 qt

Spark Plug Gap

  • 3.5L 6-Cylinder: 0.032''

Fuel

  • Capacity: 70L. (18.5 gal, 15.4 Imp. gal.)

Lubrication system

  • Capacity:  6.6 qt. (6.2 L, 5.5 Imp. qt.)

Cooling System

  • Type: TOYOTA Long Life Coolant” or equivalent,With ethylene−glycol type coolant for a proper corrosion protection of aluminum components

    • Do not use alcohol-type antifreeze or plain water alone
  • Capacity:

    • 5S−FE engine: 6.9 qt. (7.3 L, 6.1 Imp. qt.)
    • 1MZ−FE engine: 6.8 qt. (9.3 L, 7.7 Imp. qt.)

Clutch

  • Type: SAE J1703 or FMVSS No.116 DOT 3

Manual Transaxle

  • Type: Gear oil API GL−4 or GL−5 SAE 75W−90

  • Capacity:

    • Part-time 4WD models: 1.6 qt. (1.55 L, 1.4 Imp. qt.)

    • Full-time 4WD models: 1.5 qt. (1.40 L, 1.2 Imp. qt.)

Automatic Transaxle

  • Type: Automatic transmission fluid D−ll or DEXRON III (DEXRON II)
  • Capacity:

    • 1MZ−FE engine: 4.75 qt. (5.0 L, 4.2 Imp. qt.)

    • 5S−FE engine:2.5 qt. (2.6L, 2.2 Imp. qt.)

Steering

  • Type: Automatic transmission fluid D−ll or DEXRON III (DEXRON II

Brakes

  • Type: SAE J1703 or FMVSS No.116 DOT 3

Powertrain


Engine

  • 2.2 L 5S-FE I4 (gasoline)

  • 3.0 L 1MZ-FE V6 (gasoline)

  • 2.5 L 2MZ-FE V6 (gasoline)

Transmission

  • 5-speed S51 manual

  • 4-speed A140E automatic

  • 4-speed A541E automatic

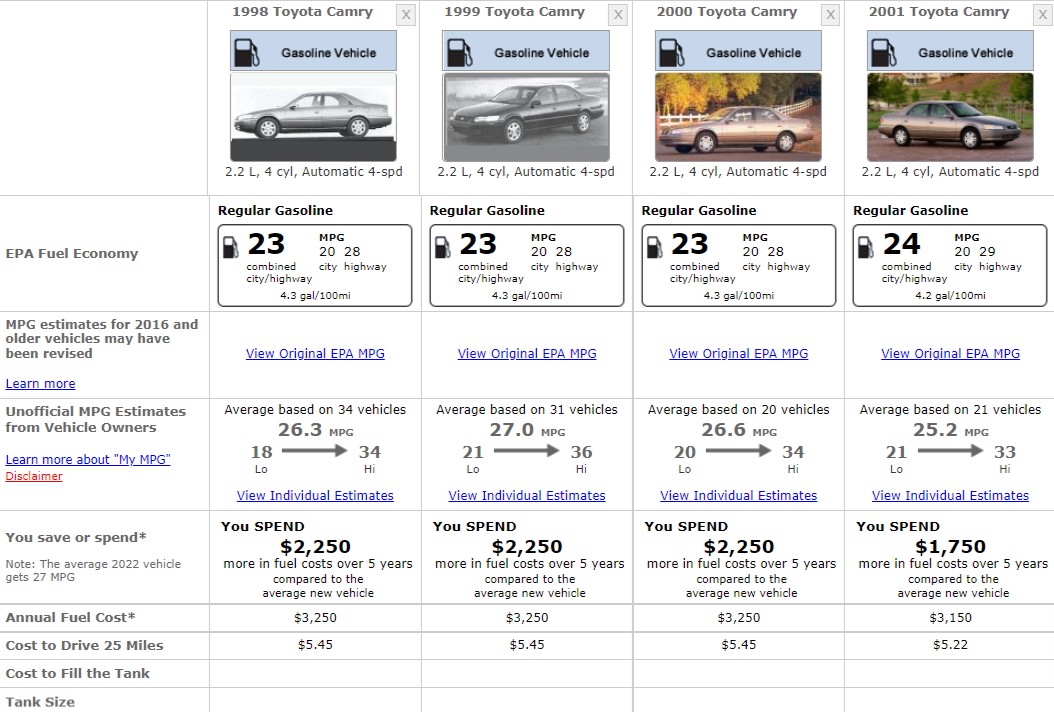

Fuel Consumption


TOYOTA CAMRY FUEL CONSUMPTION

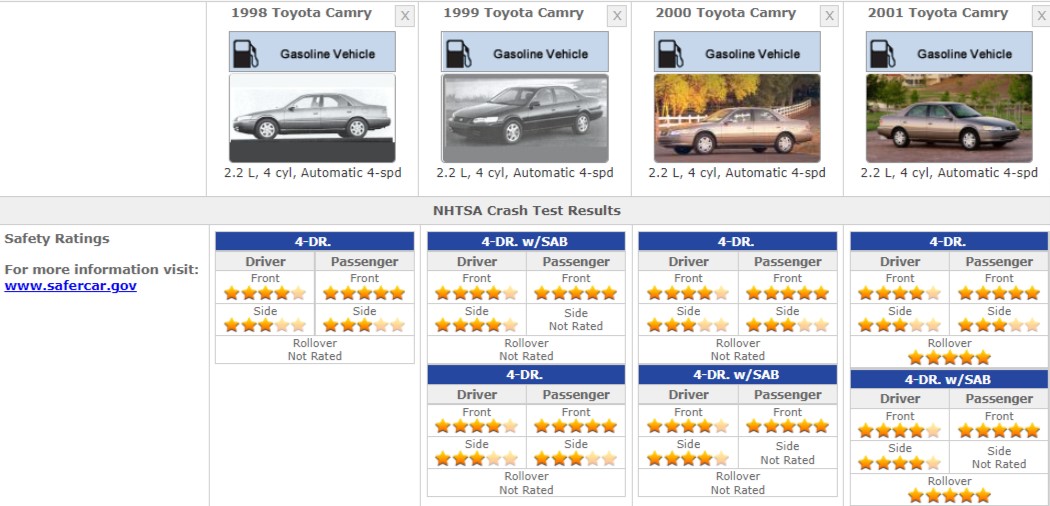

Safety Ratings


TOYOTA CAMRY SAFETY RATINGS

References


  1. 2001 Toyota Camry Owners Manual

  2. 2001  Toyota Camry  - Class Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSA

Lights

Front Lights

  • Front Sidemarker Light Bulb:

    • 3157-SCK

    • 3157NA

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    • 3157NA
  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb: 9006

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb:

    • 3157-SCK

    •  3157

  • Center High Mount Stop Light Bulb: 921

  • License Plate Light Bulb: 2825

  • Parking Light Bulb:

    • 3157-SCK

    • 3157NA

  • Rear Sidemarker Light Bulb: 194

  • Rear Turn Signal Light Bulb: 3156

  • Tail Light Bulb:

    • 3157-SCK

    • 3157

Interior Lights

  • Courtesy Light Bulb:

    • DE3021

    • DE3175

  • Dome Light Bulb: DE3175

  • Glove Box Light Bulb: 74

  • Instrument Panel Light Bulb:

    • 194

    • 74

  • Trunk Light Bulb: 194
