Chassis

  • Type: XXV30

Engine 2.4L 4-Cylinder DOHC

  • Recommended Oil viscosity: 0W-20

  • Recommended Engine Oil: API

  • Oil capacity: 4.8 qt

Spark Plug Gap

  • 2.4L 4-Cylinder: 0.031''

Engine 3.0L 6-Cylinder DOHC

  • Recommended Oil viscosity: 0W-20

  • Recommended Engine Oil: SN/RC

  • Oil capacity: 5.7 qt

Spark Plug Gap

  • 3.0L 6-Cylinder: 0.032''

Engine 3.3L 6-Cylinder DOHC

  • Recommended Oil viscosity: 5W-20

  • Recommended Engine Oil: API

  • Oil capacity: 5.0 qt

Spark Plug Gap

  • 3.3L 6-Cylinder: 0.044''

Fuel

  • Capacity: 70L. (18.5 gal, 15.4 Imp. gal.)

Lubrication system

  • Capacity:  6.6 qt. (6.2 L, 5.5 Imp. qt.)

Cooling System

  • Type: TOYOTA Long Life Coolant” or equivalent,With ethylene−glycol type coolant for a proper corrosion protection of aluminum components

    • Do not use alcohol-type antifreeze or plain water alone

  • Capacity:

    • 2.4 L 4−cylinder (2AZ−FE) engine: 6.2 qt. (6.6 L, 5.4 Imp. qt.)

    • 3.0 L V6 (1MZ−FE) and 3.3 L V6 (3MZ− FE) engines: 9.2 qt. (9.8 L, 8.1 Imp. qt.)

Clutch

  • Type: SAE J1703 or FMVSS No.116 DOT 3

Manual Transaxle

  • Type: Gear oil API GL−4 or GL−5 SAE 75W−90

  • Capacity:  2.5 qt. (2.6 L, 2.2 Imp. qt.)

Automatic Transaxle

  • Type: Toyota Genuine ATF Type T−IV
  • Change automatic transmission fluid only as necessary. Generally, it is necessary to change automatic transmission fluid only if your vehicle is driven under one of the Special Operating Conditions listed in your “Scheduled Maintenance Guide” or “Owner’s Manual Supplement”. When changing the automatic transmission fluid, use only “Toyota Genuine ATF Type T−IV” (ATF JWS3309 or NWS6500) to aid in assuring optimum transaxle performance. Notice: Using automatic transmission fluid other than “Toyota Genuine ATF Type T−IV” may cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ultimately damage the automatic transmission of your vehicle.

  • Capacity: 3.5 L (3.7 qt, 3.1 Imp. qt.)

Steering

  • Type: Automatic transmission fluid D−ll or DEXRON III (DEXRON II

Brakes

  • Type: SAE J1703 or FMVSS No.116 DOT 3

Powertrain


Engine

  • 2.0 L 1AZ-FE I4, 144 hp

  • 2.4 L 2AZ-FE I4, 157 hp

  • 3.0 L 1MZ-FE V6, 192 hp without VVT-i (2002), 210 hp with VVT-i (2003–2006)

  • 3.3 L 3MZ-FE V6 SE (2004–2006), 225 hp

Transmission

  • 5-speed manual

  • 4-speed U241E automatic

  • 5-speed U151E automatic

  • 4-speed U140E automatic

  • 5-speed U250E automatic

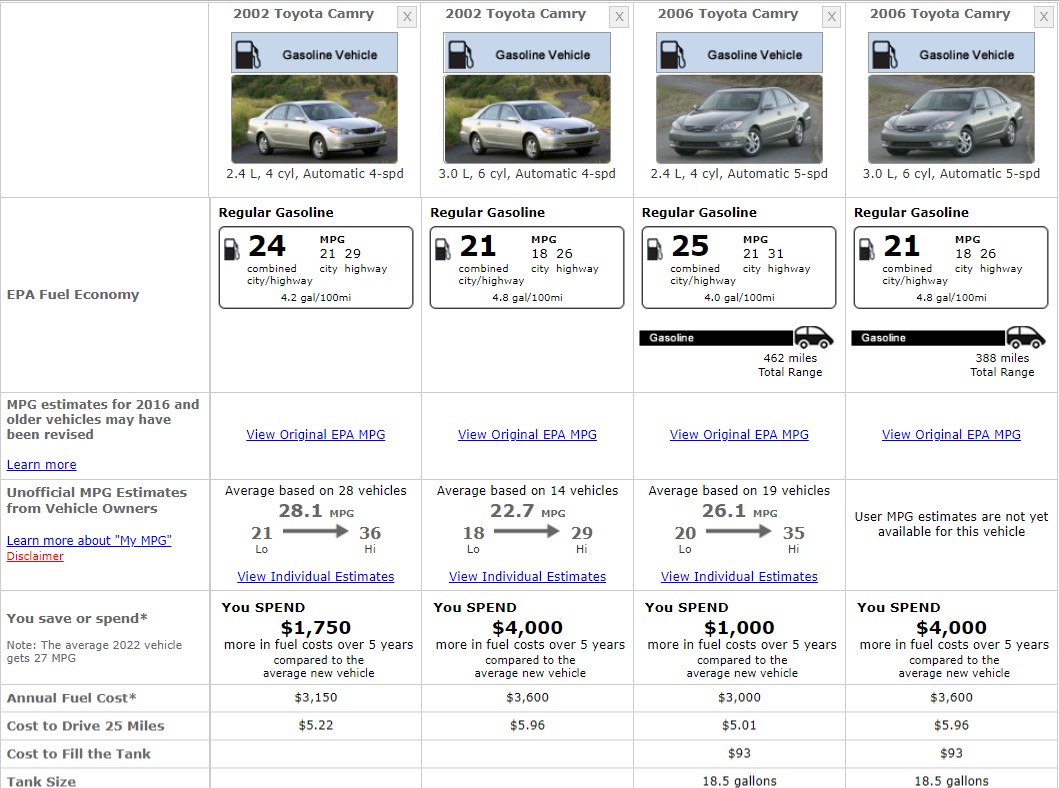

Fuel Consumption


TOYOTA CAMRY FUEL CONSUMPTION

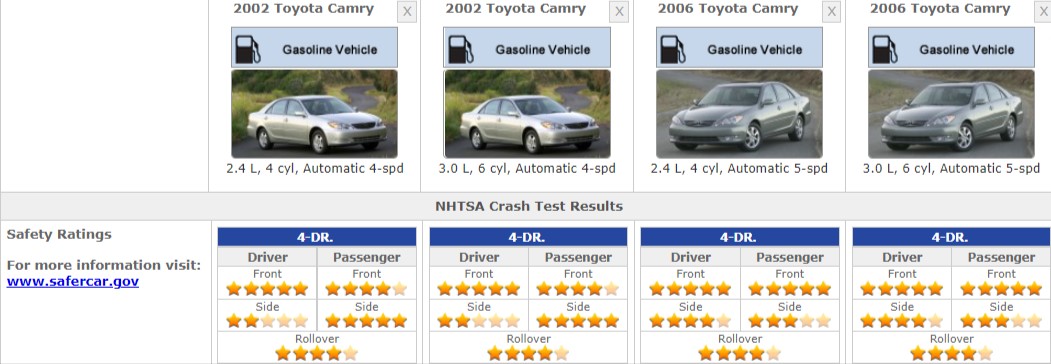

Safety Ratings


TOYOTA CAMRY FUEL CONSUMPTION

References


  1. 2006 Toyota Camry Owners Manual

  2. 2006  Toyota Camry  - Class Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSA

Lights

Front Lights

  • LED Driving Lights & Fog Lights: FDC-MB1

  • Front Fog Light Bulb: 9006

  • Front Sidemarker Light Bulb:

    • 2825

    • 168

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    • 4157K

  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb: 9006

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb:

    • 3157-SCK

    • 3057

  • Center High Mount Stop Light Bulb: 921

  • License Plate Light Bulb: 2825

  • Parking Light Bulb:

    • 2825

    • 168

  • Rear Sidemarker Light Bulb:

    • 2825

    • 168

  • Rear Turn Signal Light Bulb:

    • 4157K

    • 3157-SCK

    • 3157NAK

  • Tail Light Bulb:

    • 3157-SCK

    • 3057

Interior Lights

  • Ash Tray Light Bulb: 74

  • Dome Light Bulb: 578

  • Glove Box Light Bulb: 74

  • Map Light Bulb: 168

  • Trunk Light Bulb: 168

  • Vanity Mirror Light Bulb: 7065
