Chassis

  • Type: XV50

Engine 2.5L 4-Cylinder DOHC

  • Recommended Oil viscosity: 5W-30

  • Recommended Engine Oil: API

  • Drain Plug Torque: 30FT-LBS

  • Oil capacity: 6.4 qt

Spark Plug Gap

  • 2.4L 4-Cylinder: 0.044''

Engine 3.5L 6-Cylinder DOHC

  • Recommended Oil viscosity: 0W-20

  • Recommended Engine Oil: GF-5

  • Oil capacity: 6.4 qt

Spark Plug Gap

  • 3.5L 6-Cylinder: 0.044''

Fuel

  • Capacity:17.0 gal. (64.35 L, 14.2 Imp. gal.)

Lubrication system

  • Capacity:
    • X 2.5 L 4-cylinder (2AR-FE) engine: 4.6 qt. (4.4 L, 3.9 Imp. qt.)

    • 3.5 L V6 (2GR-FE) engine: 6.4 qt. (6.1 L, 5.4 Imp. qt.)

Cooling System

  • Type: “Toyota Super Long Life Coolant”

  •  Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology

    Capacity:

    • 2.5 L 4-cylinder (2AR-FE) engine:7.7 qt. (7.3 L, 6.4 Imp. qt.

    • 3.5 L V6 (2GR-FE) engine:9.6 qt. (9.1 L, 8.0 Imp. qt.)

Automatic Transaxle

  • Type: Toyota Genuine ATF WS
  • Capacity: 6.9 qt. (6.5 L, 5.7 Imp. qt.)

Brakes

  • Type: SAE J1703 or FMVSS No.116 DOT 3

Powertrain


Engine

  • 2.0 L 1AZ-FE I4 145 hp

  • 2.0 L 6AR-FSE I4 VVTi-W 165 hp (Malaysia, Thailand, Russia, and China)

  • 2.5 L 2AR-FE I4 178–181 hp

  • 2.5 L 5AR-FE I4 173 hp (China)

  • 3.5 L 2GR-FE V6 268 hp

  • 2.5 L 2AR-FXE I4 154 hp Hybrid electric

Transmission

  • 4-speed automatic

  • 6-speed automatic

  • 6-speed manual

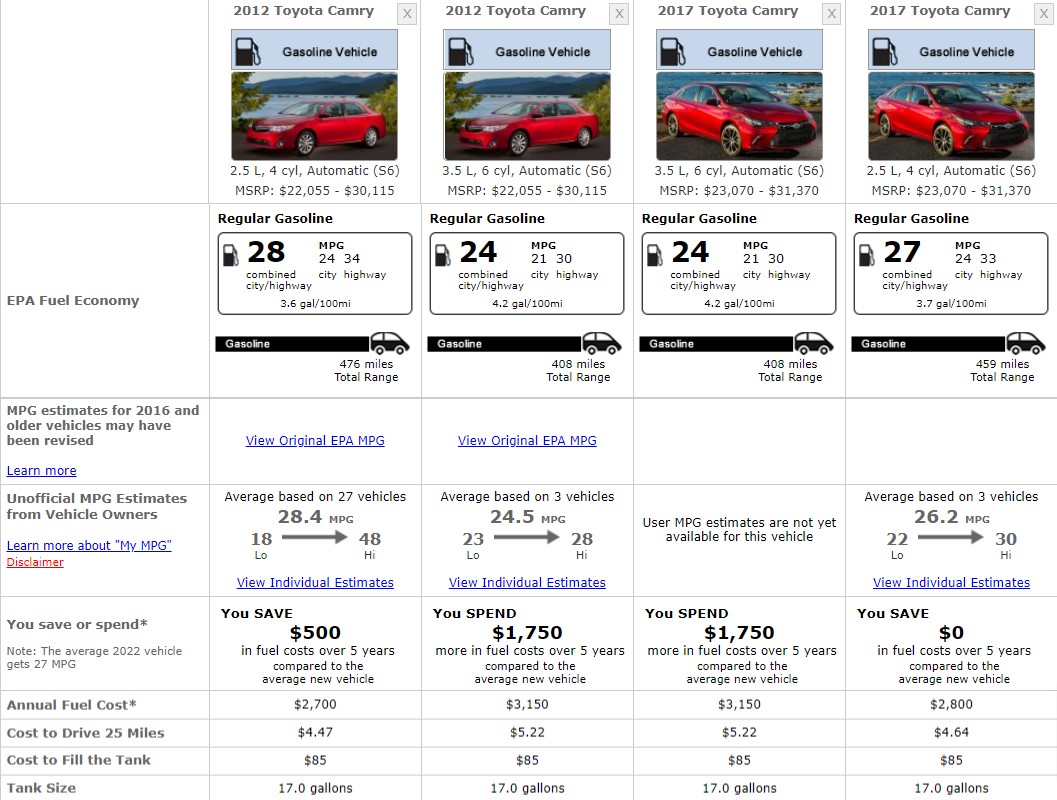

Fuel Consumption


TOYOTA CAMRY FUEL CONSUMPTION

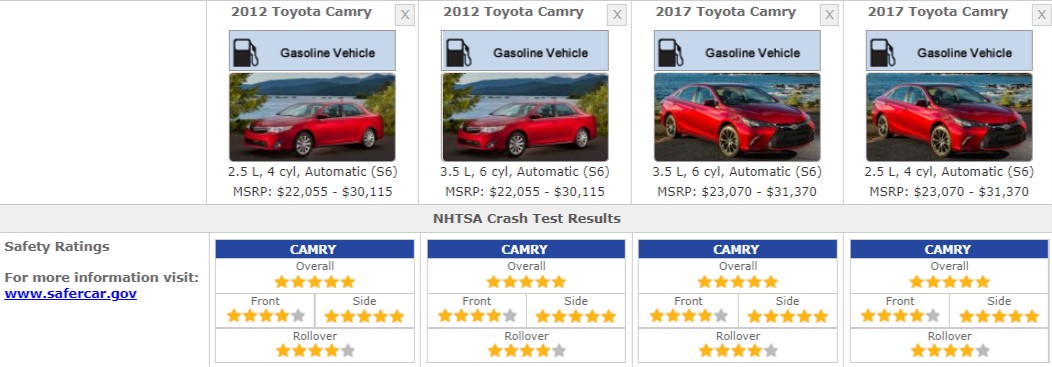

Safety Ratings


TOYOTA CAMRY SAFETY RATINGS

References


  1. 2017 Toyota Camry Owners Manual

  2. 2017 Toyota Camry  - Class Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSA

Lights

Front Lights

  • Daytime Running Light Bulb:

    • 9005

    • LED

  • Front Sidemarker Light Bulb: 168

  • Front Turn Signal Light Bulb:

    • 7444NA

    • LED

  • High Beam Headlight Bulb:

    • 9005

    • LED

  • Low Beam Headlight Bulb:

    • H11-55W

    • LED

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb: 7443

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 168

  • Parking Light Bulb:

    • 7444NA

    • LED

  • Rear Sidemarker Light Bulb: 7443

  • Rear Turn Signal Light Bulb: 7440NA

  • Tail Light Bulb: 7443

Interior Lights

  • Dome Light Bulb: DE3175

  • Interior Door Light Bulb: 168

  • Map Light Bulb: 168

  • Trunk Light Bulb: 194

  • Vanity Mirror Light Bulb: 175
