Engine 1.8L 4-Cylinder 1ZZ-FE

  • Recommended Oil viscosity: 5W-20

  • Recommended Engine Oil: API

  • Drain Plug Torque: 28FT-LBS

  • Oil capacity: 4.0 qt

Spark Plug Gap

  • 1.8L 4-Cylinder: 0.044''

Engine 1.8L 4-Cylinder 2ZZ-GE

  • Recommended Oil viscosity: 5W-30

  • Recommended Engine Oil: API

  • Drain Plug Torque:  28FT-LBS

  • Oil capacity: 4.5 qt

Spark Plug Gap

  • 1.8L 4-Cylinder: 0.044''

Fuel

  • Capacity: 55 L (14.5 gal., 12.1 lmp. gal.)

Lubrication system

  • Capacity:
    • 1ZZ−FE engine: 3.7 L. (3.9 qt, 3.3 Imp. qt.)

    • 2ZZ−GE engine: 4.4 L. (4.8 qt, 4.0 Imp. qt.)

Cooling System

  • Type

    • “Toyota Super Long Life Coolant”

    •  Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology

  • Capacity:
    • 1ZZ−FE engine Manual transaxle: 5.7 L. (6.0 qt, 5.0 Imp. qt.)

    • 1ZZ−FE engine Automatic transaxle: 5.6 L. (5.9 qt, 4.9 Imp. qt.)

    • 2ZZ−GE engine Manual transaxle: 5.9 L. (6.2 qt, 5.2 Imp. qt.)

    • 2ZZ−GE engine Automatic transaxle: 5.8 L. (6.1 qt, 5.1 Imp. qt.)

Clutch

  • Type: SAE J1703 or FMVSS No.116 DOT 3

Manual Transaxle

  • Type: Gear oil API GL−4 or GL−5 SAE 75W−90
  • Capacity:

    • 1ZZ−FE engine: 1.9 L. (2.0 qt, 1.7 Imp. qt.)

    • 2ZZ−GE engine: 2.3 L. (2.4 qt, 2.0 Imp. qt.)

Automatic Transaxle

  • Type: Toyota Genuine ATF Type T−IV
  • Capacity:

    • 1ZZ−FE engine: 2.9 L. (3.1 qt, 2.6 Imp. qt.)

    • 2ZZ−GE engine: 3.5 L. (3.7 qt, 3.1 Imp. qt.)

Brakes

  • Type: SAE J1703 or FMVSS No.116 DOT 3

Steering

  • Type: Automatic transmission fluid DEXRON II or III

Powertrain


Engine

  • 1.8 L 1ZZ-FE I4

  • 1.8 L 2ZZ-GE I4

Transmission

  • 4-speed automatic

  • 5-speed manual

  • 6-speed manual

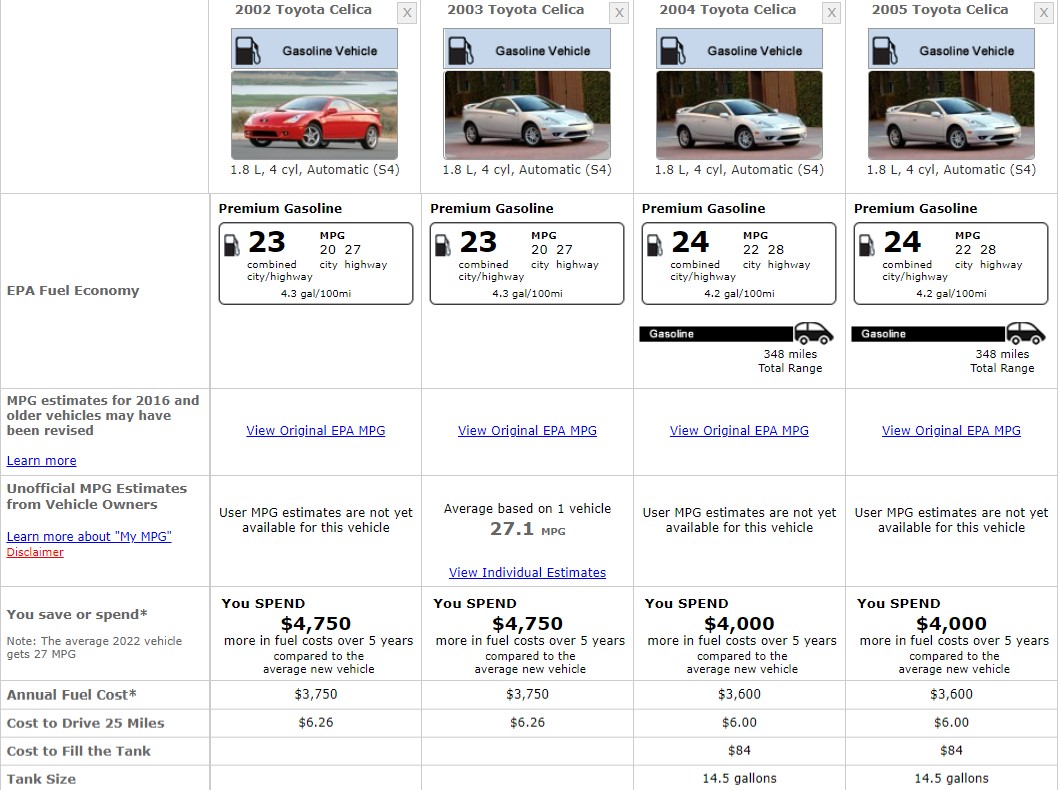

Fuel Consumption


TOYOTA CELICA FUEL CONSUMPTION

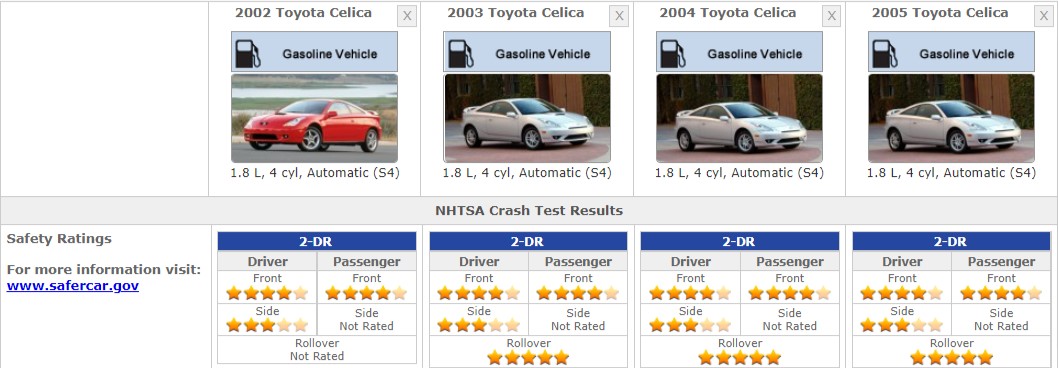

Safety Ratings


TOYOTA CELICA SAFETY RATINGS

References


  1. 2005 Toyota Celica Owners Manual

  2. 2005 Toyota Celica Class Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSA

Lights

Front Lights

  • Front Fog Light Bulb: H3-55W

  • Front Inner Turn Signal Light Bulb: 12496

  • Front Outer Turn Signal Light Bulb: 194

  • Front Sidemarker Light Bulb: 194

  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb:

    • H7-55W

    • HID-D2S

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb:

    • 7443-SCK

    • 7443

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 168

  • Parking Light Bulb: 168

  • Rear Sidemarker Light Bulb:

    • 7443-SCK

    • 7443

  • Rear Turn Signal Light Bulb: 7440NA

  • Tail Light Bulb:

    • ​​​​​​​7443-SCK

    • 7443

Interior Lights

  • Ash Tray Light Bulb: 74

  • Dome Light Bulb: DE3175

  • Glove Box Light Bulb: 74

  • Map Light Bulb: DE3175

  • Trunk Light Bulb: DE3022
