Chassis

  • Type: XK60

Engine 4.7L 8-Cylinder DOHC

  • Recommended Oil viscosity: 5W-30

  • Recommended Engine Oil: API

  • Drain Plug Torque: 29FT-LBS

  • Oil capacity: 6.5 qt

Spark Plug Gap

  • 4.7L 8-Cylinder: 0.044''

Fuel

  • Capacity:  26.4 gal. (100.0 L, 22.0 lmp.gal.)

Cooling System

  • Type

    • “Toyota Super Long Life Coolant” is used in your Toyota vehicle at factory fill. In order to avoid technical problems, only use “Toyota Super Long Life Coolant” or similar high-quality ethylene glycol-based non-silicate, non- amine, non- nitrite, and non- borate coolant with long-life hybrid organic acid technology. (Coolant with long-life hybrid organic acid technology is a combination of low phosphates and organic acids.) Do not use plain water alone.

  • Capacity:
    • Vehicles without towing package: 13.1 qt. (12.4 L, 10.9 Imp.qt.)

    • Vehicles with towing package: 14.1 qt. (13.3 L, 11.7 Imp.qt.)

Automatic transmission

  • Type: Toyota Genuine ATF WS
  • Capacity: 11.7 qt. (11.1 L, 9.8 Imp.qt.)

Transfer (4WD models)

  • Type: Gear oil API GL-5
  • Capacity: 1.43 qt. (1.35 L, 1.19 Imp.qt.)

Differential

  • Type: Toyota Genuine Differential gear oil LT 75W-85 GL-5 or equivalent
  • Capacity:

    • Front (4WD models): 2.17 qt. (2.05 L, 1.80 Imp.qt.)

    • Rear: 1.64 qt. (1.55 L, 1.36 Imp.qt.)

Brakes

  • Type: FMVSS No.116 DOT 3 or SAE J1703

Steering

  • Type: Automatic transmission fluid DEXRON® II or III

Powertrain


Engine

  • Gasoline:

    • 4.6 L 1UR-FE V8 (UPK60/65; 2010–2012)

    • 4.7 L 2UZ-FE VVT-i V8 (UCK60/65; 2008–2009)

    • 5.7 L 3UR-FE V8 (USK60/65; 2008–2022)

  • Gasoline flex-fuel:

    • 5.7 L 3UR-FBE V8 (USK65)

Transmission

  • 310 hp (231 kW; 314 PS) (1UR-FE)

  • 276 hp (206 kW; 280 PS) (2UZ-FE)

  • 381 hp (284 kW; 386 PS) (3UR-FE/3UR-FBE)

Fuel Consumption

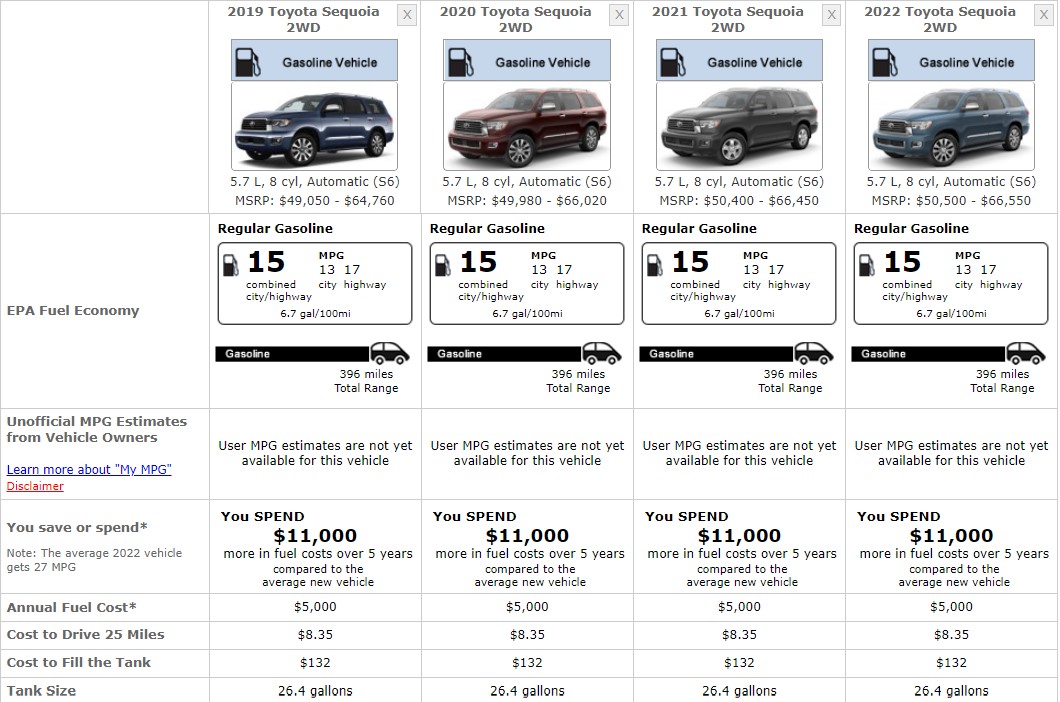

TOYOTA SEQUIOA FUEL CONSUMPTION

References


  1. 2019 Toyota Sequioa Owners Manual

  2. 2019 Toyota Sequioa - Class Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSA

Lights

Front Lights

  • Daytime Running Light Bulb: LED

  • Door Mirror Illumination Light Bulb: LED

  • Front Fog Light Bulb: LED

  • Front Sidemarker Light Bulb: LED

  • Front Turn Signal Light Bulb: LED

  • High Beam Headlight Bulb: LED

  • Low Beam Headlight Bulb: LED

  • Stepwell Light Bulb: 74

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb: 7443

  • Center High Mount Stop Light Bulb: LED

  • Inner Tail Light Bulb: 194

  • License Plate Light Bulb: 168

  • Outer Tail Light Bulb: 7443

  • Parking Light Bulb: LED

  • Rear Turn Signal Light Bulb: 7440NA

Interior Lights

  • Dome Light Bulb: 168

  • Interior Door Light Bulb: 168

  • Luggage Compartment Light Bulb: 168

  • Map Light Bulb: 168

  • Vanity Mirror Light Bulb: 7065
