Chassis

  • Type: XL20

Engine 3.0L 6-Cylinder DOHC

  • Recommended Oil viscosity: 5W-30

  • Recommended Engine Oil: API

  • Drain Plug Torque: 33FT-LBS

  • Oil capacity: 5.0 qt

Spark Plug Gap

  • 4.7L 8-Cylinder: 0.044''

Fuel

  • Capacity: 20.9 gal. (79 L, 17.5 Imp.gal.)

Cooling System

  • Type

    • “Toyota Genuine Long Life Coolant”

    • Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology Do not use plain water alone

  • Capacity: 12.0 qt. (11.3 L, 10.0 Imp.qt.)

Automatic Transaxle

  • Type: Toyota Genuine ATF WS
    • Using automatic transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ultimately damage the transmission of your vehicle.

  • Capacity: 3.7 qt. (3.5 L, 3.1 Imp.qt.)

Rear differential (AWD models)



  • Type: Hypoid gear oil API GL-5
  • Capacity: 1.0 qt. (0.9 L, 0.8 Imp.qt.)

Transfer (AWD models)

  • Type: Hypoid gear oil API GL-5
  • Capacity: 1.0 qt. (0.9 L, 0.8 Imp.qt.)

Brakes

  • Type: FMVSS No.116 DOT 3 or SAE J1703

Steering

  • Type: Automatic transmission fluid DEXRON II or III

Powertrain


Engine

  • 3.3 L 3MZ-FE V6 (gasoline, MY2004–2006)
  • 3.5 L 2GR-FE V6 (gasoline, MY2007–2010)

Transmission

  • 5-speed U151E automatic (FWD)

  • 5-speed U151F automatic (AWD)

Fuel Consumption

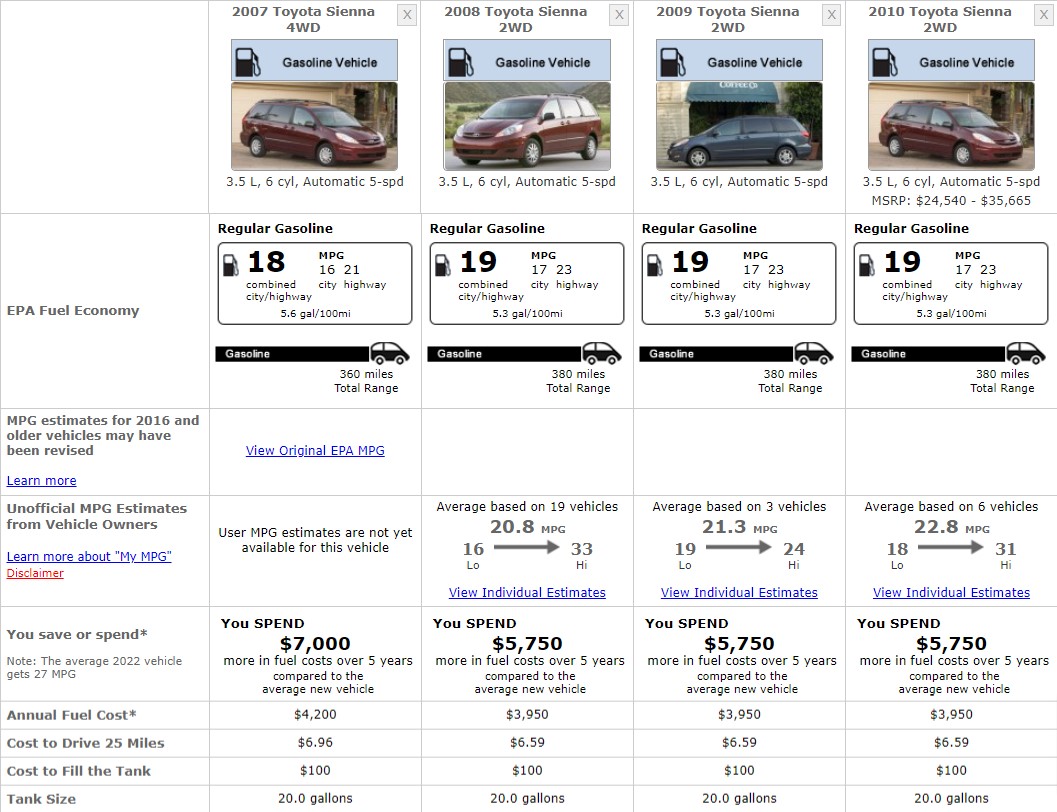

TOYOTA SIENNA FUEL CONSUMPTION

Safety Ratings

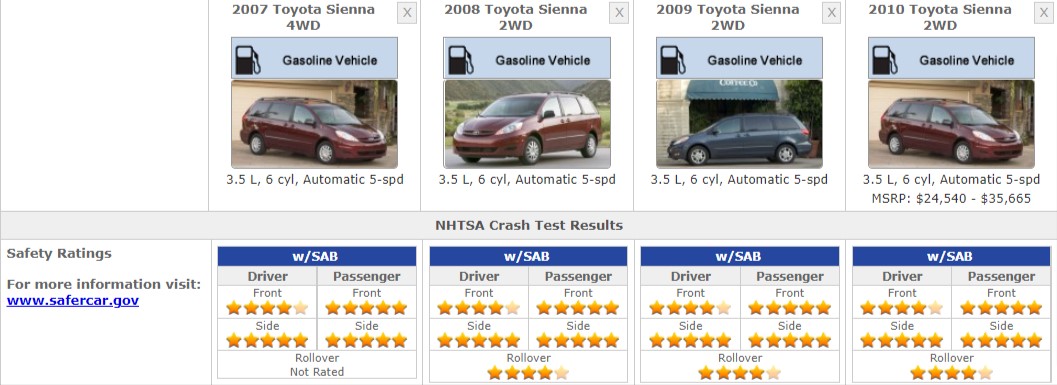

TOYOTA SIENNA 2MD GEN SAFETY RATINGS

References


  1. 2010 Toyota Sienna Owners Manual

  2. 2010 Toyota Sienna - Class Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSA

Lights

Front Lights

  • Front Fog Light Bulb: 9006

  • Front Sidemarker Light Bulb: 168NA

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    • 3457NAK

  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb:

    • 9006

    • HID-D2R

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb:

    • 7443-SCK,

    • 443

  • Center High Mount Stop Light Bulb: LED

  • Inner Tail Light Bulb: 194

  • License Plate Light Bulb: 168

  • Outer Tail Light Bulb:

    • 7443-SCK

    • 7443

  • Parking Light Bulb:

    • 3157-SCK

    • 3457NAK

  • Rear Sidemarker Light Bulb:

    • 7443-SCK

    • 7443

  • Rear Turn Signal Light Bulb: 7440

Interior Lights

  • Interior Door Light Bulb: 194

  • Luggage Compartment Light Bulb: DE3022

  • Map Light Bulb: 168
