Chassis

  • Type: XK30/XK40

Engine 4.0L 6-Cylinder DOHC

  • Recommended Oil viscosity: 5W-20

  • Recommended Engine Oil: API

  • Drain Plug Torque: 30FT-LBS

  • Oil capacity: 4.8 qt

Spark Plug Gap

  • 4.8L 6-Cylinder: 0.044''

Engine 4.7L 8-Cylinder DOHC

  • Recommended Oil viscosity: 5W-20

  • Recommended Engine Oil: API

  • Drain Plug Torque: 29FT-LBS

  • Oil capacity: 6.5 qt

Spark Plug Gap

  • 4.7L 8-Cylinder: 0.44''

Fuel

  • Capacity: 100L (26.4 gal, 22.01 Imp. gal.)

Cooling System

  • Type

    • “Toyota Super Long Life Coolant”

    • Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology Do not use plain water alone

  • Capacity:
    • With manual transmission: 10.4L (11.0 gal, 9.2 Imp. gal.)

    • With automatic transmission:

      • 4.0 L V6 (1GR−FE) engine: 10.3L (10.9 gal, 9.1 Imp. gal.)

      • 4.7 L V8 (2UZ−FE) engine (Standard and access cab models): 12.6L (13.0 gal, 11.1 Imp. gal.)
      • 4.7 L V8 (2UZ−FE) engine (Double cab models): 12.8L (13.5 gal, 11.3 Imp. gal.)

Clutch

  • Type: SAE J1703 or FMVSS No.116 DOT 3

Manual Transmission

  • Type: Gear oil API GL−4 or GL−5
  • Capacity: 1.8L (1.9gal, 1.6 Imp. gal.)

Automatic transmission

  • Type: Toyota Genuine ATF WS
  • Capacity: 3.0L (3.2gal, 2.6 Imp. gal.)

Transfer

  • Type: SAE J1703 or FMVSS No.116 DOT 3/SAE 75W−90
  • Capacity: 1.0L (1.1gal, 0.9 Imp. gal.)

Front Differential

  • Type:

    • Standard differentialHypoid gear oil API GL−5

    • Limited−slip differential: Hypoid gear oil for limited−slip differential API GL−5
  • Capacity: 1.15L (1.2qt, 1.0 Imp. qt.)

Rear Differential

  • Type:

    • Standard differentialHypoid gear oil API GL−5

    • Limited−slip differential: Hypoid gear oil for limited−slip differential API GL−5
  • Capacity:

  • Standard and access cab models
    • Two−wheel drive models /Standard differential: 1.15L (1.2qt, 1.0 Imp. qt.)

    • Two−wheel drive models/Limited−slip differential: 3.15L (3.3 qt, 2.8 Imp. qt.)

    • Four−wheel drive models/Standard differential: 3.50L (3.7 qt, 3.1 Imp. qt.)
    • Four−wheel drive models/Limited−slip differential: 2.85L (3.0 qt, 2.5 Imp. qt.)

    • Double cab models//Standard differential: 4.0L (4.2 qt, 3.5 Imp. qt.)
    • Double cab models/Limited−slip differential: 3.35L (3.5 qt, 2.9 Imp. qt.)

Chassis Lubrication (Four−wheel drive models)

  • Type:

    • Propeller shafts Spiders:Lithium base chassis grease, NLGI No.2

    • Double Cardan joint : Molybdenum−disulfide lithium base chassis grease, NLGI No.2
    • Slide yokes: Lithium base chassis grease, NLGI No.2 or Molybdenum−disulfide lithium base chassis grease, NLGI No.2

  • Capacity: 1.15L (1.2qt, 1.0 Imp. qt.)

Brakes

  • Type: FMVSS No.116 DOT 3 or SAE J1703

Steering

  • Type: Automatic transmission fluid DEXRON® II or III

Powertrain


Engine

TOYOTA TUNDRA FUEL CONSUMPTION

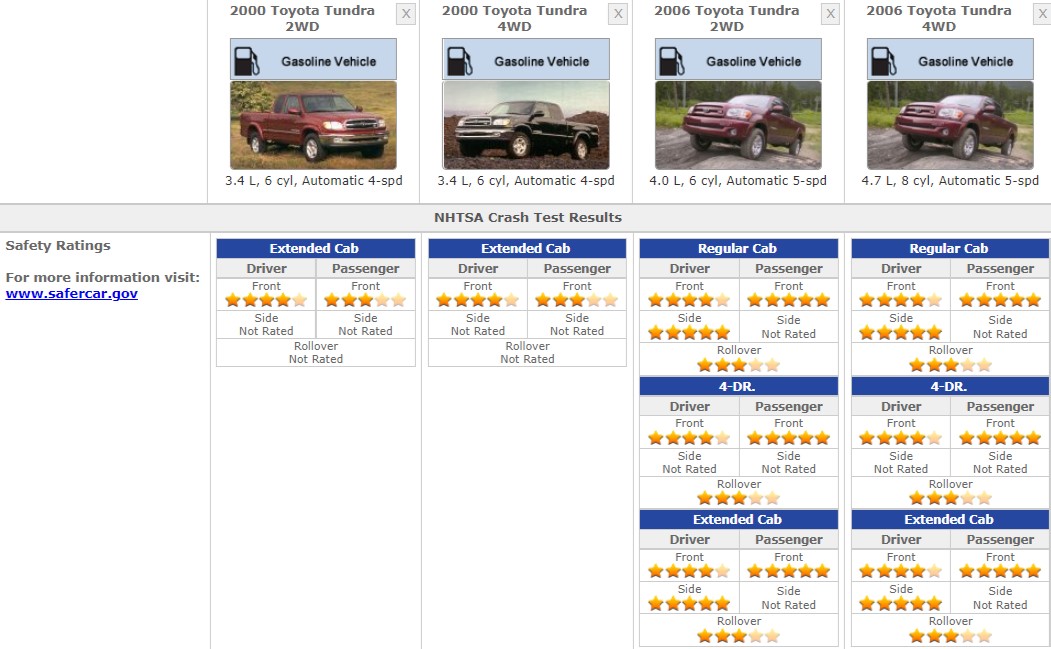

Safety Ratings


TOYOTA TUNDRA SAFETY RATINGS

References


  1. 2006 Toyota Tundra Owners Manual

  2. 2006 Toyota Tundra - Class Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSA

Lights

Front Lights

  • Front Fog Light Bulb: 9006

  • Front Sidemarker Light Bulb:

    • 3157-SCK

    • 3157NA

  • Front Turn Signal Light Bulb:

    • ​​​​​​​3157-SCK

    • 3157NA

  • High Beam and Low Beam Headlight Bulb: 9003

  • Stepwell Light Bulb: 74

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb:

    • 7443-SCK

    • 7443

  • Center High Mount Stop Light Bulb: 921

  • License Plate Light Bulb: 168

  • Parking Light Bulb: 168

  • Rear Turn Signal Light Bulb: 7440NA

  • Tail Light Bulb:

    • 7443-SCK

    •  7443

  • Tailgate Light Bars: vbf-tailgate-light

Interior Lights

  • Dome Light Bulb: DE3425

  • Glove Box Light Bulb: 37

  • Interior Door Light Bulb: 194

  • Luggage Compartment Light Bulb: 921

  • Map Light Bulb: 194
