Chassis

  • Type: XK50

Engine 4.0L 6-Cylinder DOHC

  • Recommended Oil viscosity: 0W-20

  • Recommended Engine Oil: API

  • Drain Plug Torque: 30FT-LBS

  • Oil capacity: 6.4 qt

Spark Plug Gap

  • 4.0L 6-Cylinder: 0.044''

Engine 4.6L 8-Cylinder DOHC

  • Recommended Oil viscosity: 0W-20

  • Recommended Engine Oil: API

  • Drain Plug Torque: 30FT-LBS

  • Oil capacity: 7.9 qt

Spark Plug Gap

  • 4.6L 8-Cylinder: 0.44''

Engine 5.7L 8-Cylinder DOHC

  • Recommended Oil viscosity: 0W-20

  • Recommended Engine Oil: API

  • Drain Plug Torque: 30FT-LBS

  • Oil capacity: 7.9 qt

Spark Plug Gap

  • 5.7L 8-Cylinder: 0.44''

Fuel

  • Capacity: 26.4 gal. (100.0 L, 22.0 lmp.gal.)

Cooling System

  • Type

    • “Toyota Super Long Life Coolant”

    • Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology Do not use plain water alone

  • Capacity:
    • 4.0L V6 (1GR-FE) engine: 11.3 qt. (10.7 L, 9.4 Imp.qt.)

    • 4.6L V8 (1UR-FE) engine (Vehicles without towing package, 2WD models): 12.8 qt. (12.1 L, 10.6 Imp.qt.)

    • 4.6L V8 (1UR-FE) engine (Vehicles with towing package,2WD models): 13.9 qt. (13.2 L, 11.6 Imp. qt.)

    • 5.7L V8 (3UR-FE, 3UR-FBE) engine (Vehicles without towing package): 12.8 qt. (12.1 L, 10.6 Imp.qt.)

    • 5.7L V8 (3UR-FE, 3UR-FBE) engine (Vehicles with towing package: 13.7 qt. (13.0 L, 11.4 Imp. qt.)

Front Differential

  • Type: Toyota Genuine Differential Gear Oil LT 75W-85 GL-5 or equivalent

  • Capacity: 2.2 qt. (2.05 L, 1.8 Imp.qt.)

Rear Differential

  • Type: Toyota Genuine Differential Gear Oil LT 75W-85 GL-5 or equivalent

  • Capacity:

  • 4.0L V6 (1GR-FE) and 4.6L V8 (1UR-FE) engines

    • Regular Cab models/With standard bed: 4.3 qt. (4.05 L, 3.6 Imp.qt.)

    • Regular Cab models//With long bedl: 4.9 qt. (4.60 L, 4.0 Imp.qt.)

    • Double Cab and Crew&Max models: 4.9 qt. (4.60 L, 4.0 Imp.qt.)

  • 5.7L V8 (3UR-FE, 3UR-FBE) engine

    • Regular Cab models/With standard bed: 3.7 qt. (3.50 L, 3.1 Imp.qt.)

    • Regular Cab models//With long bed:3.8 qt. (3.60 L, 3.2 Imp.qt.)

    • Double Cab and Crew&Max models/With standard bed: 3.8 qt. (3.60 L, 3.2 Imp.qt.)

    • Double Cab and Crew&Max models/With long bed: 4.0 qt. (3.75 L, 3.3 Imp.qt.)

    • Crew Max models/2WD models: 4.0 qt. (3.75 L, 3.3 Imp.qt.)

    • Crew Max models/4WD models: 3.8 qt. (3.60 L, 3.2 Imp.qt.

Automatic transmission

  • Type: Toyota Genuine ATF WS
  • Capacity:

    • 4.0L V6 (1GR-FE) engine: 11.1 qt. (10.5 L, 9.2 Imp.qt.)

    • 4.6L V8 (1UR-FE) engine

      • Vehicles without towing package 2WD models: 11.6 qt. (11.0 L, 9.7 Imp.qt.)

      • Vehicles without towing package 4WD models: 11.3 qt. (10.7 L, 9.4 Imp.qt.)

      • Vehicles with towing package 2WD models: 12.2 qt. (11.5 L, 10.1 Imp.qt.)

      • Vehicles with towing package  4WD models: 11.8 qt. (11.2 L, 9.9 Imp.qt.)

    • 5.7L V8 (3UR-FE, 3UR-FBE) engine

      • Vehicles without towing package: 11.7 qt. (11.1 L, 9.8 Imp.qt.)

      • Vehicles with towing package: 12.3 qt. (11.6 L, 10.2 Imp.qt.)

Transfer

  • Type: Gear oil API GL-4 or GL-5
  • Capacity:1.2 qt. (1.12 L, 1.0 Imp.qt.)

Brakes

  • Type: FMVSS No.116 DOT 3 or SAE J1703

Chassis Lubrication (Four−wheel drive models)

  • Type:

    • Propeller shafts Spiders: Lithium base chassis grease, NLGI No.2

Steering

  • Type: Automatic transmission fluid DEXRON® II or III



Powertrain


Engine

  • 4.0 L 1GR-FE V6 (VVT-i) 236 hp (2007 - 2010)

  • 4.0 L 1GR-FE V6 (Dual VVT-i) 270 hp (2011 - 2013)

  • 4.7 L 2UZ-FE V8 (VVT-i) 276 hp (2007 - 2009)

  • 4.6 L 1UR-FE V8 (VVT-i) 310 hp (2010 - 2019)

  • 5.7 L 3UR-FE V8 (Dual VVT-i) 381 hp (2007 - 2021)

Transmission

  •  5-speed automatic (A750E/F)

  • 6-speed automatic (AB60E/F)

  • 6-speed automatic (A760E/F)

Fuel Consumption

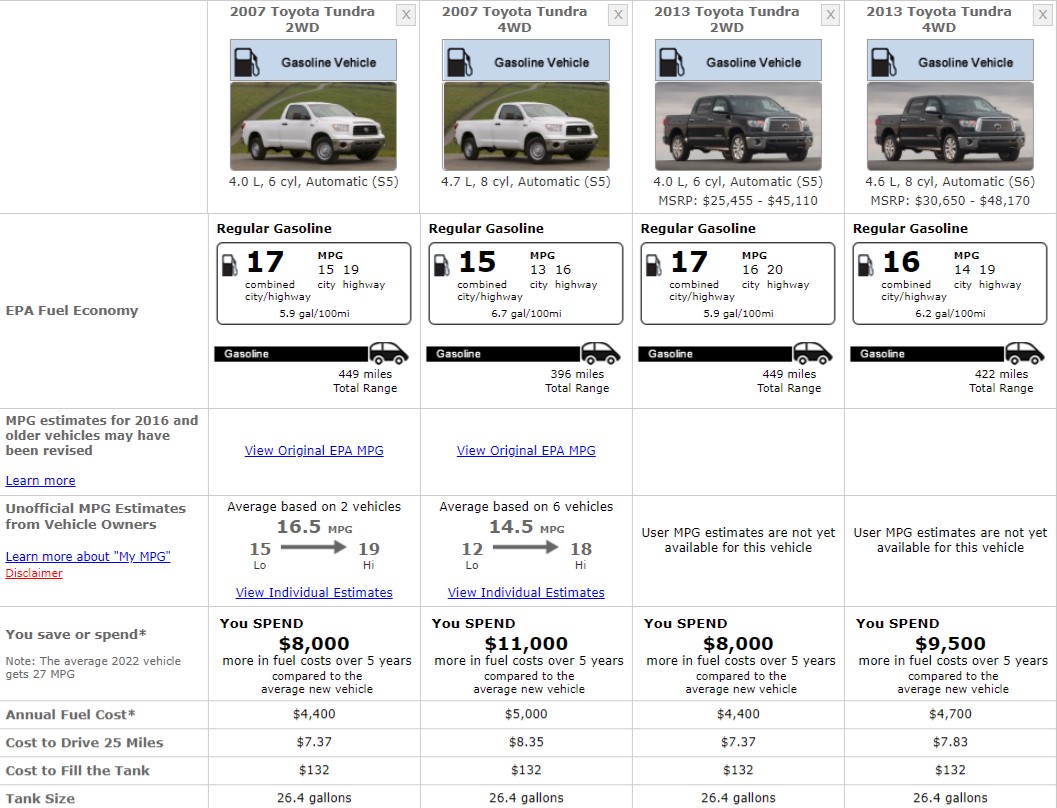

TOYOTA TUNDRA FUEL CONSUMPTION

Safety Ratings

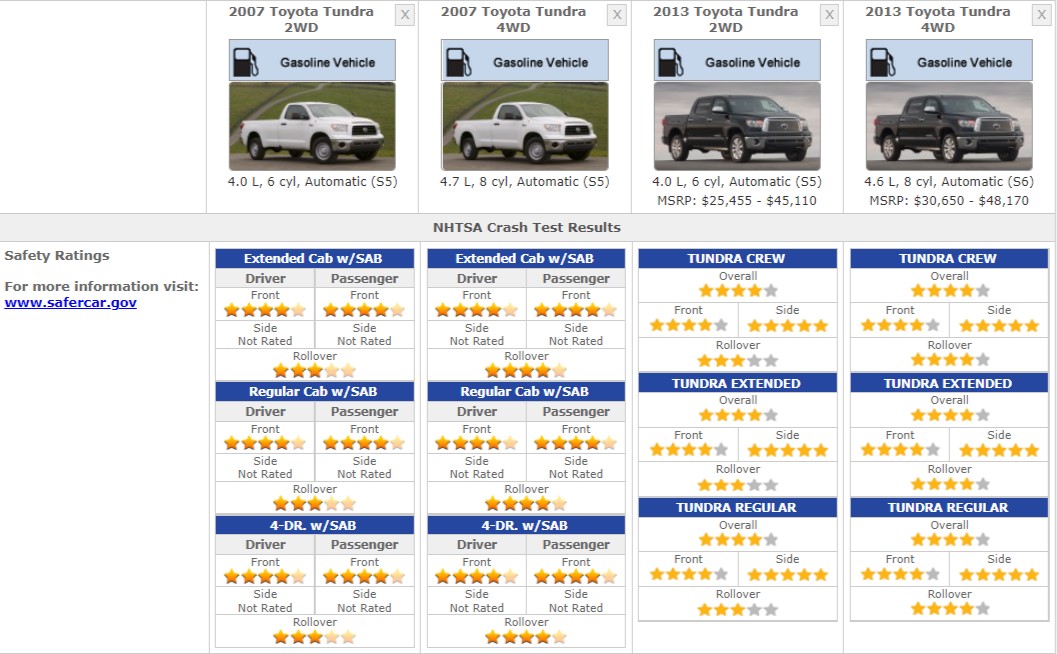

TOYOTA TUNDRA SAFETY RATINGS

References


  1. 2013 Toyota Tundra Owners Manual

  2. 2013 Toyota Tundra - Class Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSA

Lights

Front Lights

  • Daytime Running Light Bulb:

    • 3157-SCK

    • 4157NAK

  • Door Mirror Illumination Light Bulb: 168

  • Front Fog Light Bulb: 9145

  • Front Sidemarker Light Bulb: 168

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    • 4157NAK

  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb: H11-55W

  • Stepwell Light Bulb: 74

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb:

    •  3157-SCK

    • 3157K

  • Center High Mount Stop Light Bulb: 921

  • License Plate Light Bulb: 168

  • Parking Light Bulb:

    • 3157-SCK

    • 4157NAK

  • Rear Sidemarker Light Bulb:

    • 3157-SCK

    • 3157K

  • Rear Turn Signal Light Bulb:

    • 3157-SCK

    • 3157A

  • Tail Light Bulb:

    • 3157-SCK

    • 3157K

  • Tailgate Light Bars: vbf-tailgate-light

Interior Lights

  • Ash Tray Light Bulb: 74

  • Dome Light Bulb: 168

  • Glove Box Light Bulb: 74

  • Luggage Compartment Light Bulb: 921

  • Map Light Bulb: 168

  • Vanity Mirror Light Bulb: 7065
