Chassis

  • Type: A4, Typ 1J

Engine 1.8L 4-Cylinder DOHC

  • Recommended Oil viscosity: 5W-30

  • Recommended Engine Oil: VW50200

  • Drain Plug Torque:  22FT-LBS

  • Oil capacity: 5.0 qts

Spark Plug Gap

  • 1.8L 4-Cylinder: 0.032''

Engine 2.0L 4-Cylinder DOHC

  • Recommended Oil viscosity: 5W-30

  • Recommended Engine Oil: VW50200

  • Drain Plug Torque:  22FT-LBS

  • Oil capacity: 6.3 qts

Spark Plug Gap

  • 2.0L 4-Cylinder: 0.044''

Engine 2.5L 5-Cylinder DOHC

  • Recommended Oil viscosity: 5W-30

  • Recommended Engine Oil: VW50200

  • Drain Plug Torque:  22FT-LBS

  • Oil capacity: 6.3 qts

Spark Plug Gap

  • 2.0L 4-Cylinder: 0.044''

Engine 1.9L 4-Cylinder DOHC

  • Recommended Oil viscosity: 5W-30

  • Recommended Engine Oil: VW50200

  • Drain Plug Torque:  22FT-LBS

  • Oil capacity: 4.7 qts

Fuel

  • Capacity: The capacity of the tank is approximately 14.5 US gallons (55 liters). Reserve is approx. 1.9 US gallons (7 liters) of total capacity

Coolant

  • The cooling system has been filled at the factory with a permanent coolant which does not need to be changed. The coolant consists of a mixture of water and the manufacturer's coolant additive G 12 ASD - antifreeze on a glycol base with anti-corrosion additives (50% for USA and Canadian models).

Brake Fluid

  • Type: Use only brake fluid that meets SAE specification J 1703 and conforms to Federal Motor Vehicle Standard 116

Windshield Washer

  • Capacity: 3.2 qt ( 3 0 L)

Powertrain


Engine

  • 1.4 L I4 16V (petrol)

  • 1.6 L SR I4 8V (petrol)

  • 1.6 L I4 8V (petrol)

  • 1.6 L I4 16-valve (petrol)

  • 1.6 L FSi I4 (Petrol)

  • 1.8 L I4 20-valve (petrol)

  • 1.8 L I4 20-valve turbo (petrol)

  • 2.0 L I4 (petrol)

  • 2.3 L VR5 10-valve (petrol)

  • 2.3 L VR5 20-valve (petrol)

  • 2.8 L VR6 12-valve (petrol)

  • 2.8 L VR6 24-valve (petrol)

  • 1.9 L I4 SDI (diesel)

  • 1.9 L I4 TDI (diesel)

Transmission

  • 5-speed manual (02J)

  • 6-speed manual (02M)

  • 4-speed automatic (01M)

  • 5-speed automatic Tiptronic (09A)

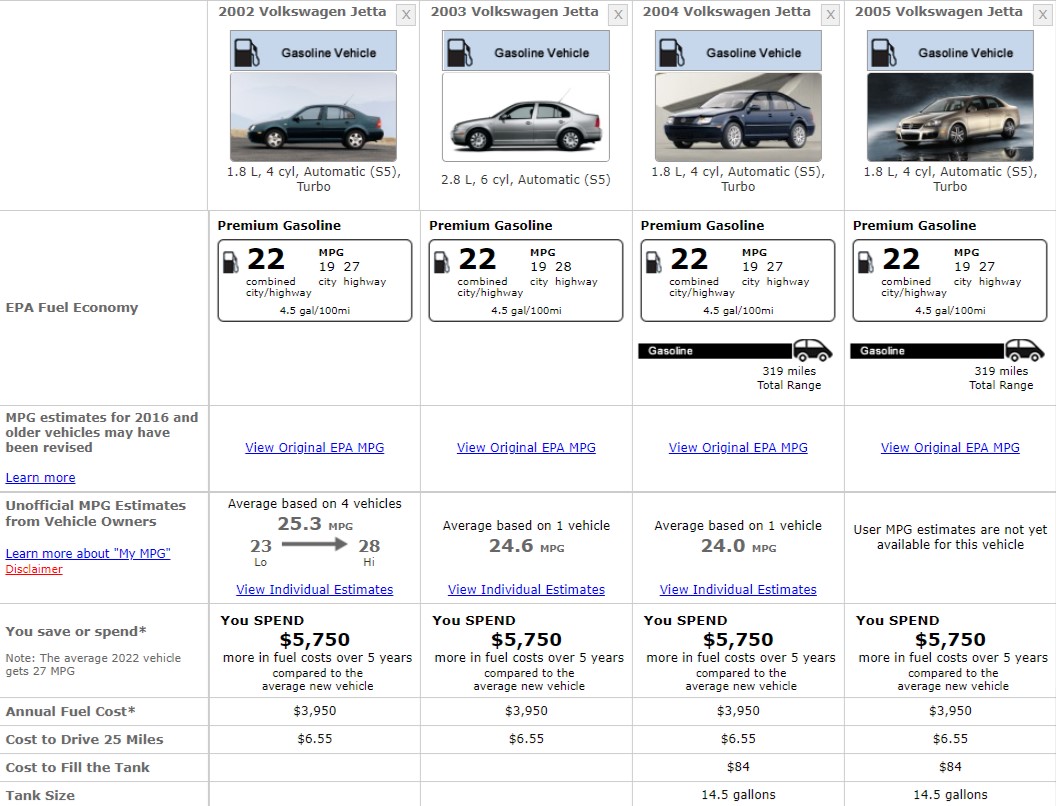

Fuel Consumption


Volkswagen Jetta Fuel Consumption

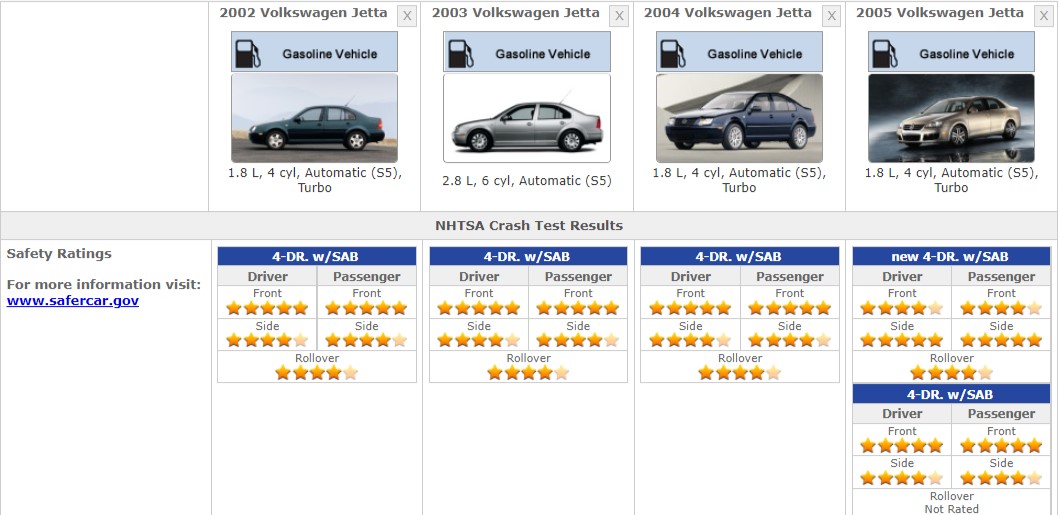

Safety Ratings


Volkswagen Jetta Fuel Consumption

References


  1. 2005 Volkswagen Jetta Owners Manual

  2. 2005 Volkswasgen Jetta- Class Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSA

Lights

Front Lights

  • Door Mirror Illumination Light Bulb: 2886X

  • Front Fog Light Bulb:

    • H3-55W

    • 9006

    • H11-55W

  • Front Inner Turn Signal Light Bulb:

    • 3157-SCK

    • 3457K

  • Front Outer Turn Signal Light Bulb: 2827

  • Front Sidemarker Light Bulb:

    • 2825

    • 2821

  • Front Turn Signal Light Bulb:

    • 1156A

    • 64136

  • High Beam and Low Beam Headlight Bulb: 9007

  • High Beam Headlight Bulb: H7-55W

  • Low Beam Headlight Bulb:

    • HID-D2S

    • H7-55W

  • Stepwell Light Bulb: 2821

Rear Lights

  • Back Up Light Bulb: 7506

  • Brake Light Bulb:

    • 7528

    • 7506

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 6418

  • Parking Light Bulb:

    • 2825L

    • 3157-SCK

    • 3457K

  • Rear Turn Signal Light Bulb:

    • 7506

    • 7528

  • Tail Light Bulb:

    • 7506

    • 5007

Interior Lights

  • Courtesy Light Bulb: 6418

  • Dome Light Bulb: 6411

  • Glove Box Light Bulb:

    • 2825L

    • 2821

  • Map Light Bulb: 2825

  • Trunk Light Bulb:

    • 6411

    • 2825

    • 6418

  • Vanity Mirror Light Bulb: 6418
