Volvo ABS Anti-skid Service Required Troubleshooting Guide

Volvo Anti-lock Brake System (ABS) control module may fail which results in ABS/Anti-skid Service Required warning message to come on. ABS module failure may also trigger check engine light, tracs off and speedometer to stop working.

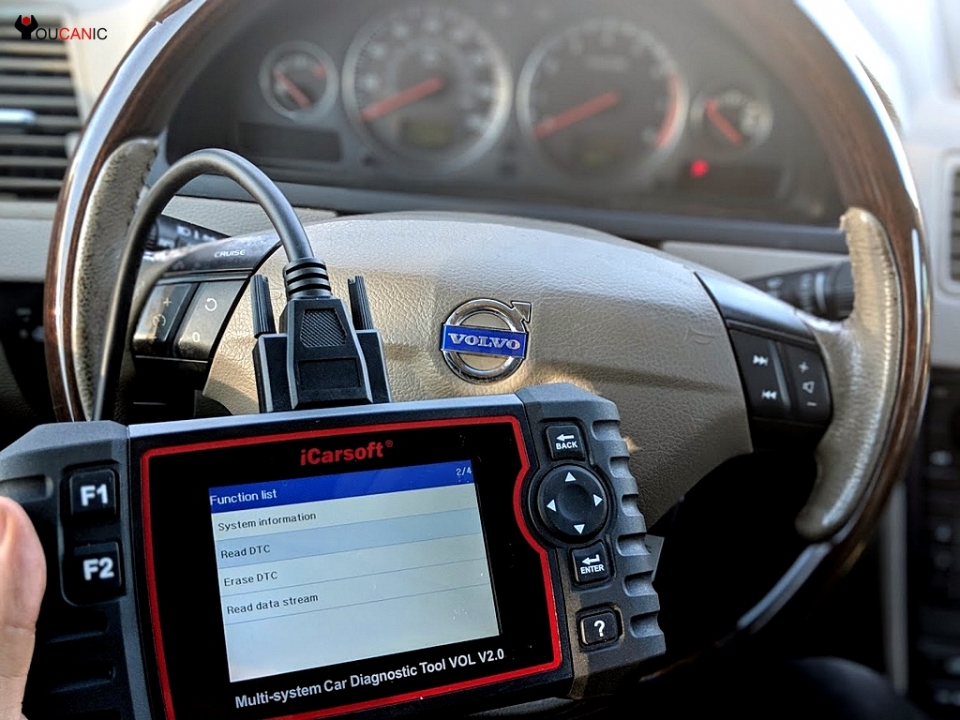

We used iCarsoft for Volvo to read fault codes from the ABS module.

ABS module failure on Volvo vehicles such as  XC70, V70, S60, S40, V40, V50, XC60, XC90, S60, S70, S80, C30, XC90 are quite common. Wheel speed sensors, ABS pump, clockspring, wiring short can also cause Volvo ABS system to malfunction.

🔺

What does Volvo ABS Anti Skid Service Required Mean?

volvo abs anti skid warning message

Volvo warning message ABS Anti-skid service required displays on the instrument cluster when ABS system malfunctions and anti-lock brakes stop working.

Your wheels may lock up during braking and lose tractive contact with the road. In other words, the vehicle may skid and require a longer distance to stop during hard braking situations.

If your Volvo has traction or stability control, those systems get disabled as well since they depend on the ABS to function properly.

🔺

 Try this

restart volvo to reset abs warning light

Park the car in a safe spot. Turn off the ignition. Wait 15 seconds and restart the car.

In many cases, this will temporarily reset Volvo ABS warning messages. Have your Volvo diagnosed as the problem will eventually return. Keep in mind that if you continue to drive with the ABS light on, the check engine light may come on as well, the car may even go into limp mode or even stall while driving.

🔺

Symptoms

In addition to the ABS light, you may experience one or more of the following symptoms.

  • ABS Service Required
  • Brake light on
  • Anti-skid disabled
  • Traction light on, STC light on
  • Tracs  Off
  • Check engine light
  • Car shuts off unexpectedly
  • Odometer shows ------ mileage
  • Cruise control stops working
  • Transmission shift light
  • Brake failure, stop asap
  • Speedometer works intermittently
  • Sluggish acceleration
  • Anti Skid Temporarily Off

Many of these symptoms are intermittent. You may experience these problems more frequently if the weather is extremely hot, humid or are driving in a bumpy road. They often disappear when the car is restarted. Similar issues are also caused by a defective Central Electronic Module

🔺

Diagnose Volvo ABS Module Problems

 Volvo ABS units have a very high failure rate due to faulty solder joints.

volvo abs pump issues pump and module removed from S60

When the ABS module fails,  in addition to the ABS light, the traction control light may come on as well. Once ABS module fails due to broken joints then it loses communication with the ABS pump, wheel speed sensors, and other modules.

A fault code is stored in the ABS module that describes what triggered the ABS error. You can use an iCarsoft for Volvo to diagnose Volvo ABS module. Keep in mind you can't use a generic OBD2 scanner to diagnose Volvo ABS problems. You can use any Volvo scanner that can read ABS module fault codes.

If you get a fault code for the high-pressure ABS pump or for a defective wheel speed sensor the issue may be the ABS module itself and not those components.

Common Volvo ABS Fault Codes

  • ECM-A02B Communication, the control module for ABS-faulty signal
  • CEM-1A5F Communication with ABS control module Signal missing
  • ABS-0070 Pump motor faulty signal
  • ABS-0080 Control Module faulty signal
  • ABS - 0115 Communication between control modules

Quite often mechanics who do not have experience working on Volvo vehicles may misdiagnose the problem. For example, they replace the ABS wheel speed sensor because the fault says a bad sensor. Replacing the ABS wheel speed sensor may not fix the problem because the issue is with the connections inside the ABS module.

🔺

How to fix Volvo ABS module?

volvo abs pump

There are a couple of ways to fix Volvo ABS module problems.

  1. You can have the Volvo dealer replace the ABS module which costs $1000+. The average cost for Volvo ABS module repair at the dealer ranges between $1500-$2000.
  2. A cheaper alternative is to remove the module and send it to a specialist that offers Volvo ABS Module Repair.  The specialist will disassemble the ABS module and repair the broken connections.

Replacing the module with a used unit works on older models. On newer Volvo models used modules no longer work due to the fact that the VIN number needs to be codded into the module itself and match that of the car.

🔺

Troubleshooting Volvo ABS problems

Volvo ABS warning light on instrument cluster should go out after starting the engine, indicating the system is okay. If the light stays on after starting the engine, it is an indication that there is a malfunction.

Check Fuses

check volvo fuses

The first step is to check the fuses for the ABS module. You don't need any special tools for this. Locate the fuse panel on the engine bay and side of the dashboard. Look at the chart for the fuse for ABS.

If the fuse is blown, replace the fuse.

ABS Relay

defective abs relay triggers abs warning message

Inspect the ABS relay typically located in the fuse box in the engine bay. It is difficult to visually verify if the relay is working properly. Replace the ABS relay with a working relay.

Wheel Speed Sensor

When you read the ABS codes with a Volvo scanner you may get a fault code for faulty wheel sensor signal circuit fault. The first step would be to remove one wheel at a time and check your wheel speed sensors for dirt or debris. Next, you will need to replace the ABS sensor. If the ABS light stays on after you replace the wheel ABS sensor, clear the fault codes from the ABS module. If you are not able to clear the ABS fault codes, the most likely issue is a defective ABS module.

Brake  Fluid Level

volvo brake fluid reservoir low brake fluid can trigger brake light

Low brake fluid level will trigger the brake light to come on and a warning message. Check the brake fluid level as soon as possible. Have your car diagnosed ASAP if you keep loose brake fluid. Your car should not lose any brake fluid. If you are losing brake fluid you have an issue that needs to be addressed immediately.

Read ABS Codes

read reset volvo abs fault code

The next step is to use a scanner such as iCarsoft for Volvo or Launch Creader that can read Volvo ABS module fault codes. Generic OBD2 scanners are not able to read Volvo ABS codes. Use a Volvo specific scanner.

🔺

Frequently Asked Questions

Can I continue to drive my Volvo is the ABS light is on?

When the anti-lock brake system fails, the brakes will still operate normally but without ABS. The wheels may lock up if you slam on the brakes during an emergency stopping situation.  If your Volvo is equipped with traction control, that system will also be disabled. You can continue to drive with extra caution. Get your Volvo diagnosed as soon as possible.

Where is Volvo ABS module located?

Abs Module is located on the left side of the engine compartment under the ABS pump. It has torx bolts but it can also be removed a 4mm socket.

Can I drive my car with no ABS module?

Most models, yes. We do not recommend it. ABS module can be removed and the pump left in place thus allowing the vehicle to be driven with normal brakes but no ABS..

Does Volvo make their own ABS module?

Volvo does not make its own ABS Control Module. They ate in most cases made by Bosch or ATE.
