Honda Fit Replace Window Regulator

Step-by-step procedure on how to replace the window regulator on a 2007-2013 Honda Fit 2nd Gen.

Honda Fit Replace  Window Regulator
ESTIMATED TIME 30 mins - 1 hour
DIY COST $ 150 - 300
DIFFICULTY Intermediate

What you will need

Procedure

  1. Remove the door panel. See the step-by-step procedure for removing the door panel and window.
Removing the door panel of the Honda Fit.



2. Remove the two 10mm bolts on the top part of the door.

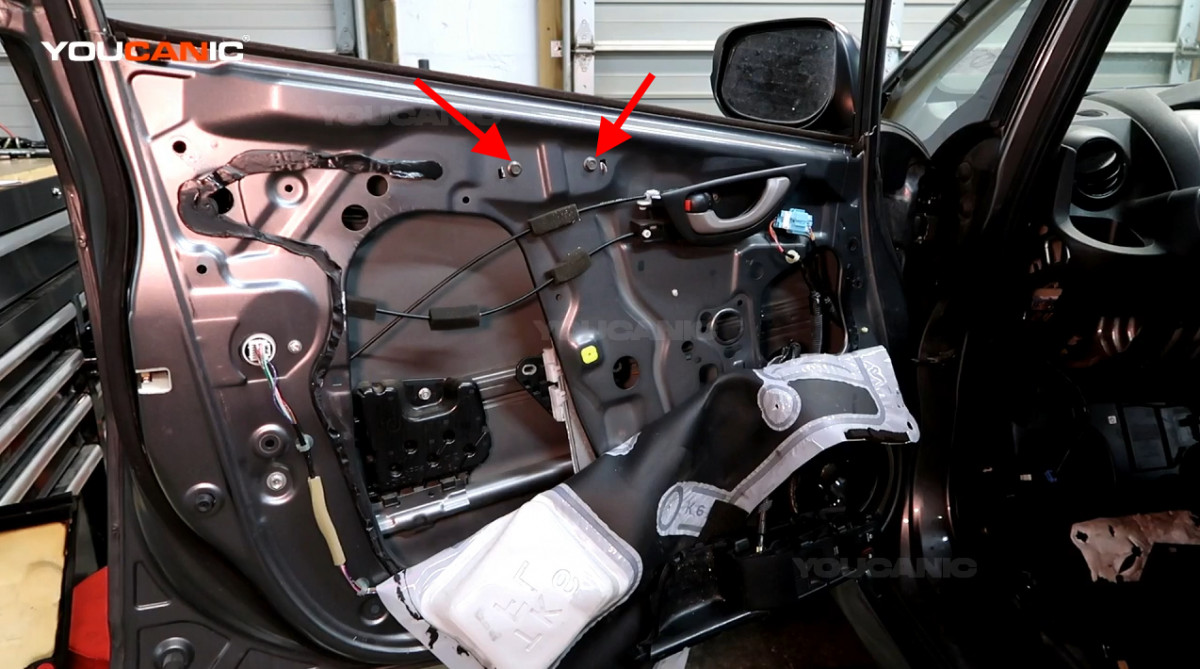

The two bolts on the top part of the door.



3. Remove the three 10mm bolts on the bottom part of the door. Use a 10mm socket wrench or 10mm nut driver to remove the bolts.

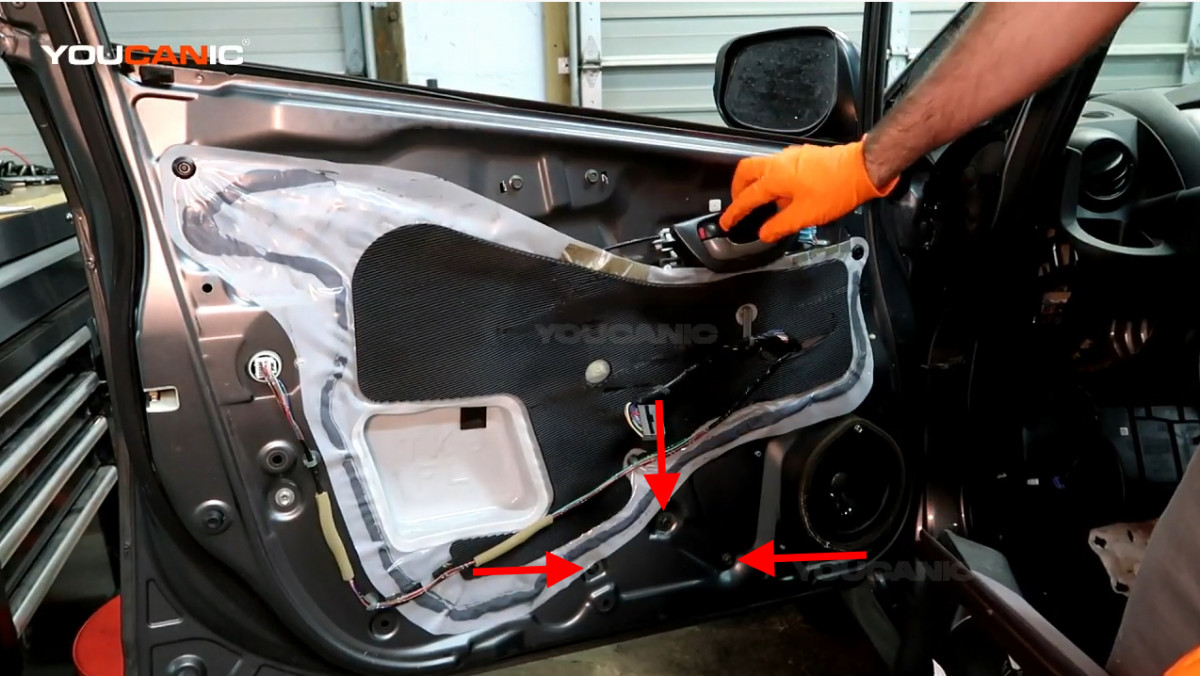

The three bolts on the bottom part of the door.



4. Disconnect the electrical connector of the window regulator motor by pushing the clip and pulling the connector out.

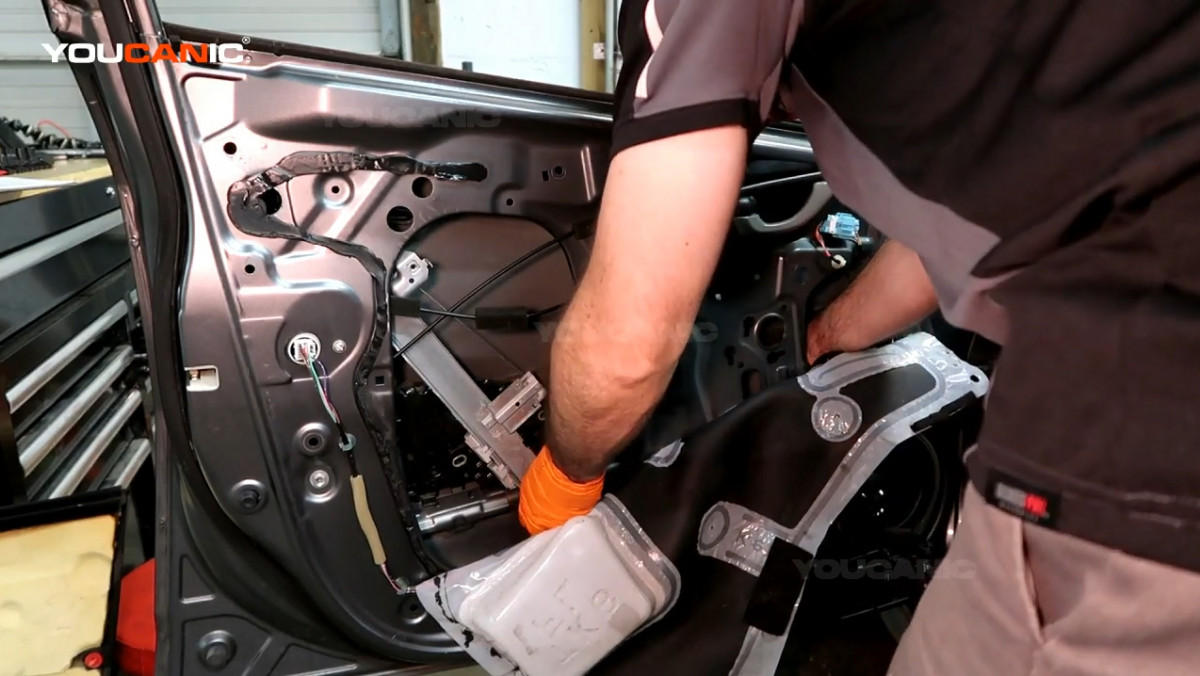

Disconnecting the electrical connector of the window regulator motor.



5. Carry the window regulator out of the door.

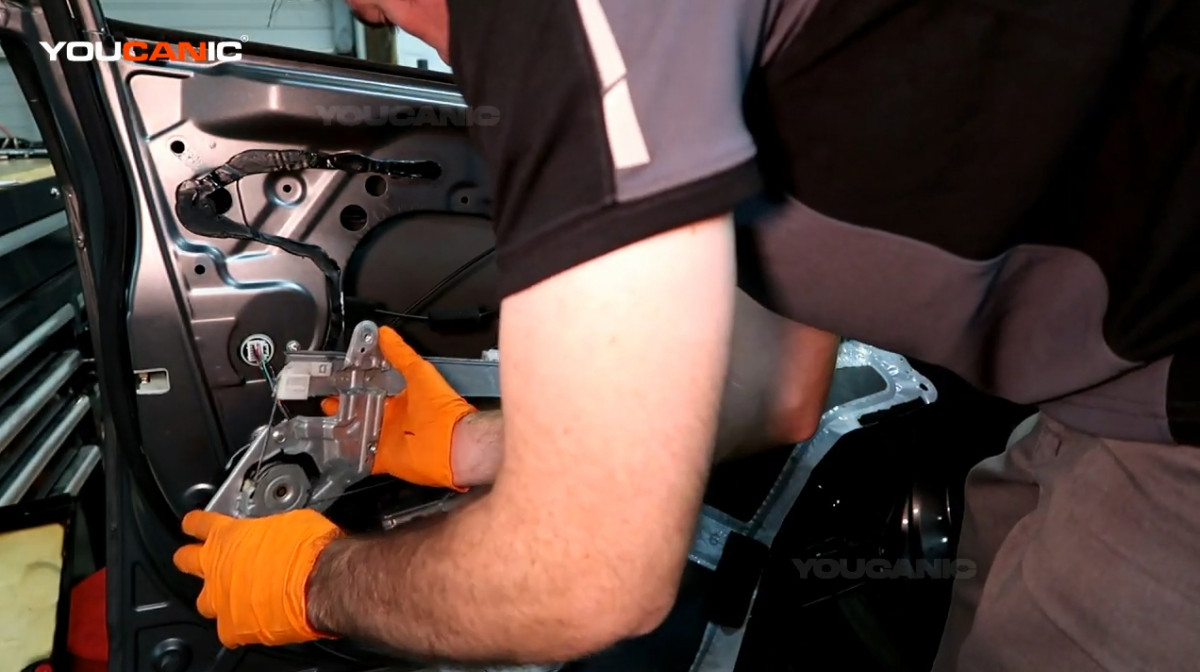

Removing the window regulator of the Honda Fit.

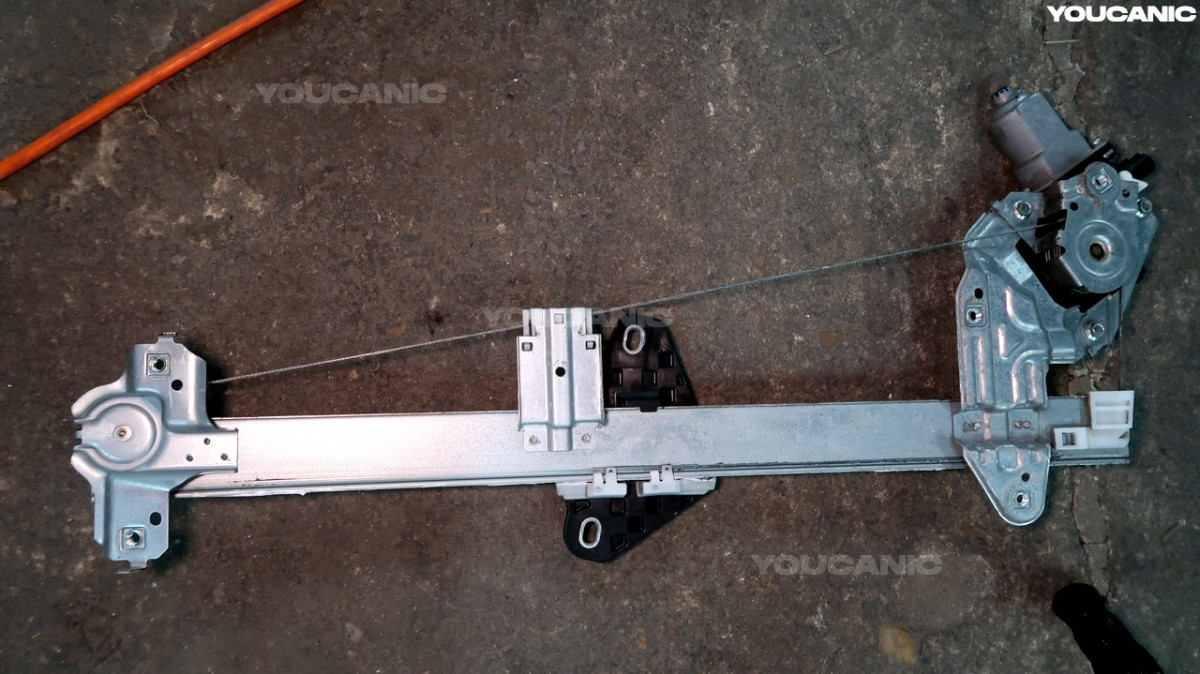

The window regulator of the Honda Fit.



6. Place the new/replacement window regulator inside the door and reconnect the motor's electrical connector.

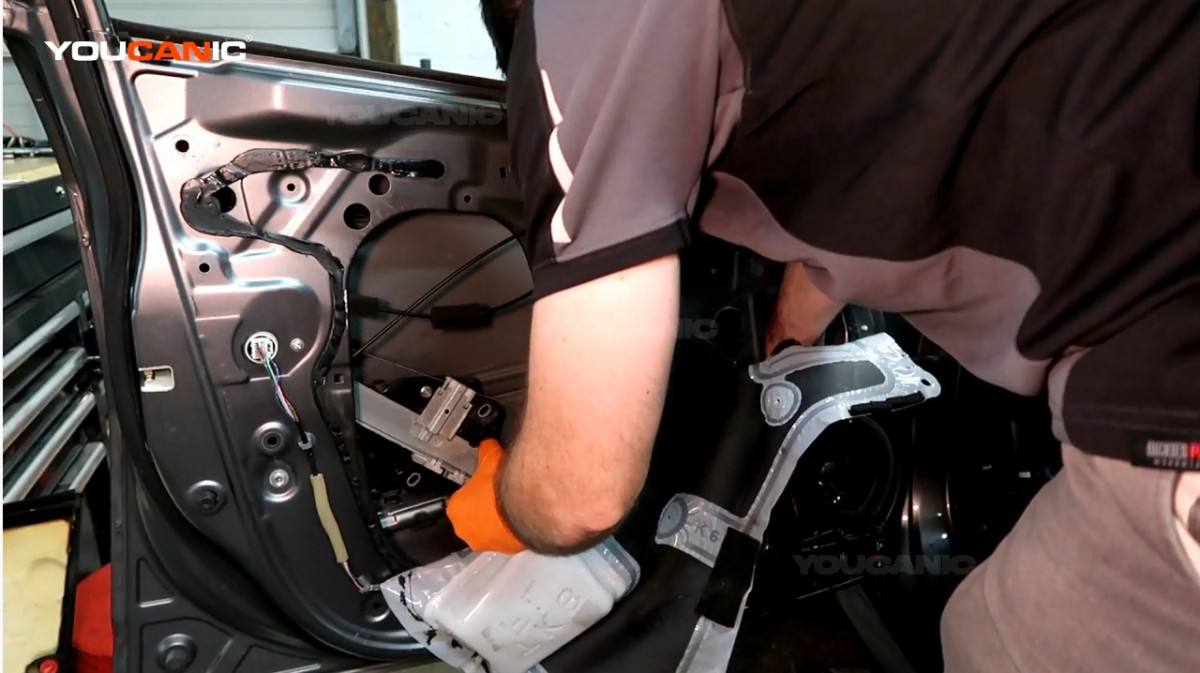

Reconnecting the electrical connector of the window regulator motor.



7. Line up the window regulator to its original position.

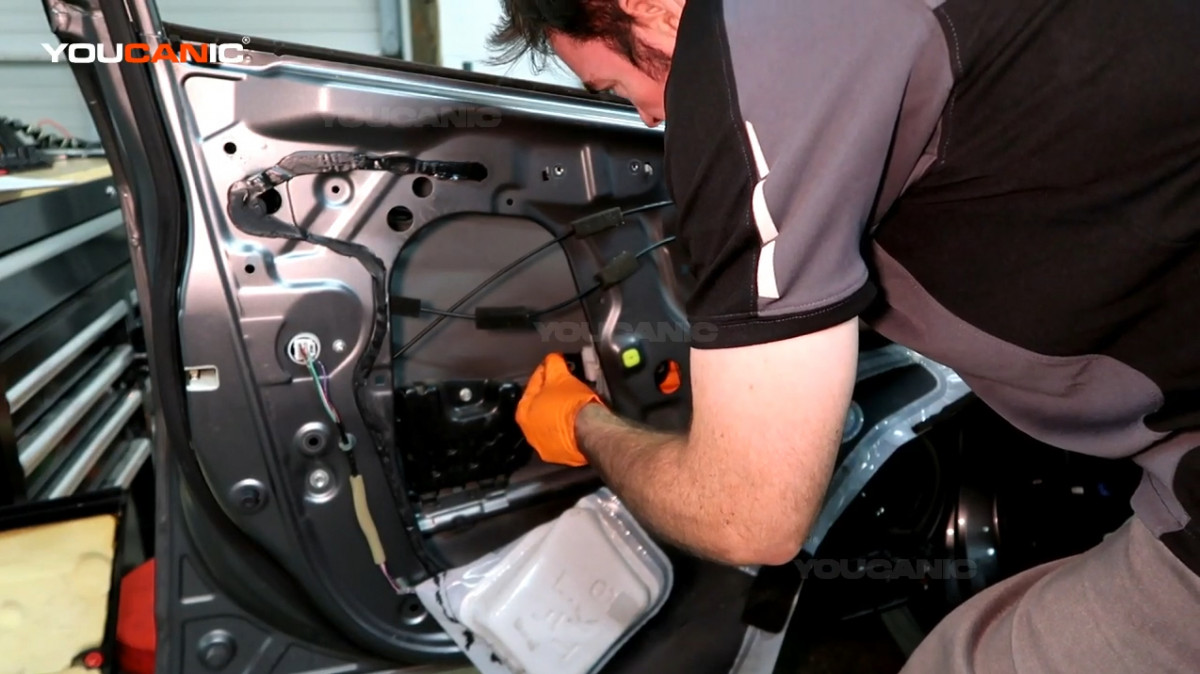

Placing the window regulator to its original position.



8. Reinstall the two 10mm bolts on top and three 10mm bolts on the bottom. Tighten the bolts by twisting them clockwise.

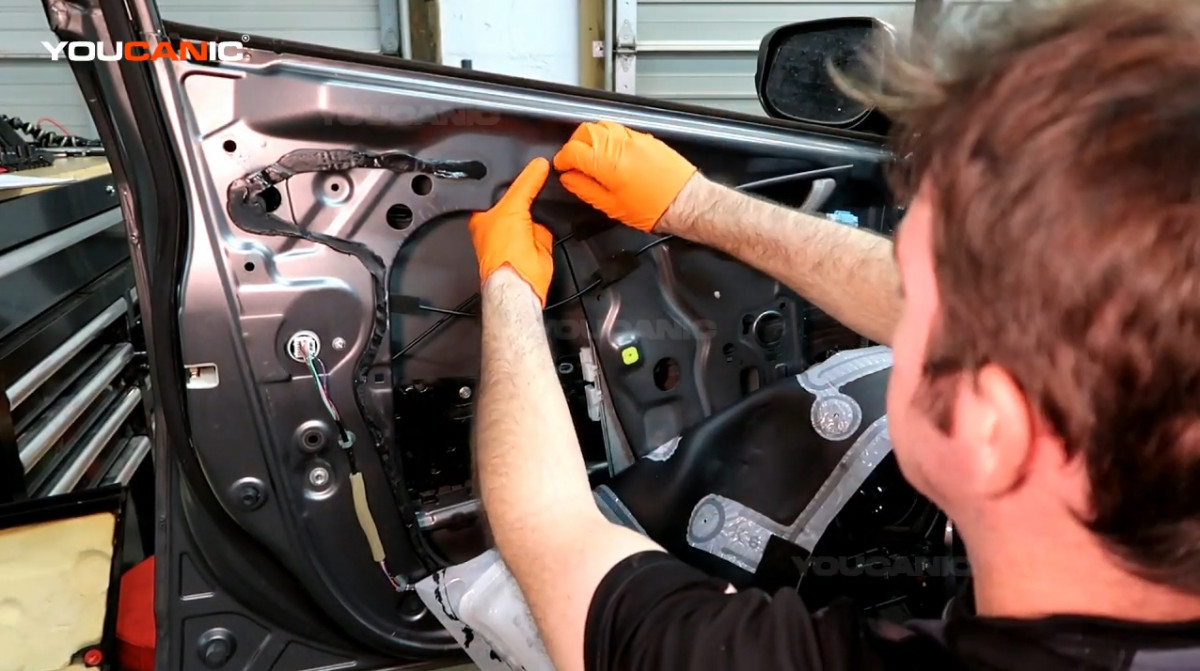

Reinstalling the two 10mm bolts on top.

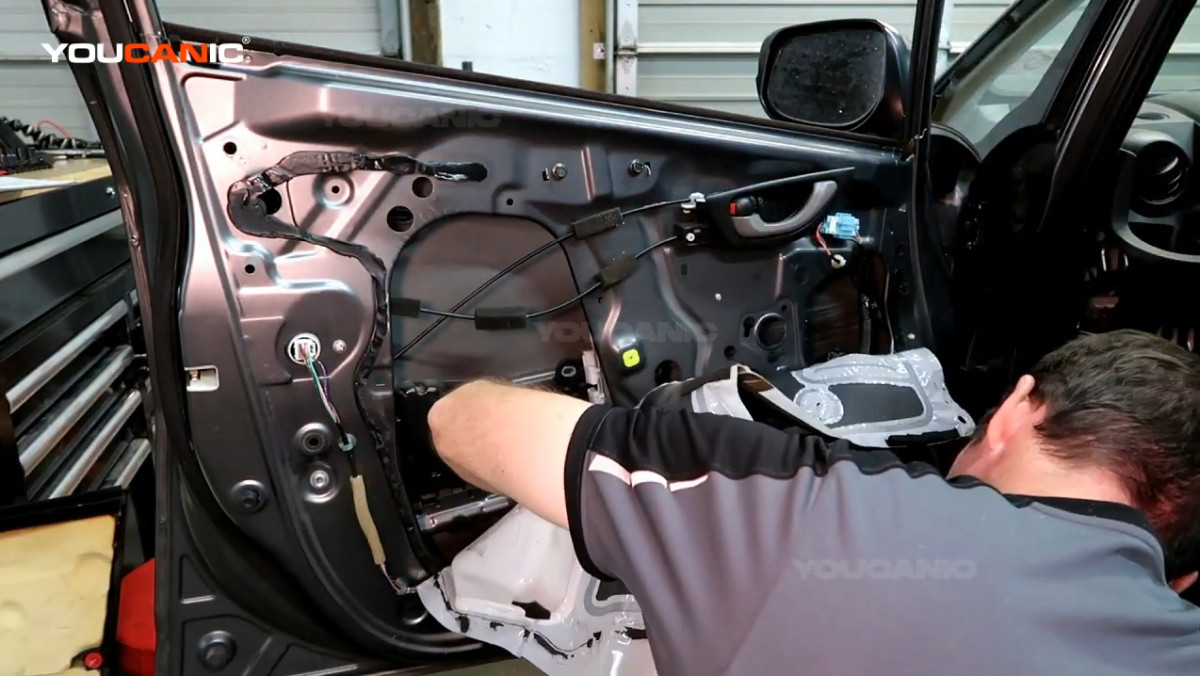

Reinstalling the three 10mm bolts on the bottom.



9. Reinstall the window and the door panel. Follow this guide.

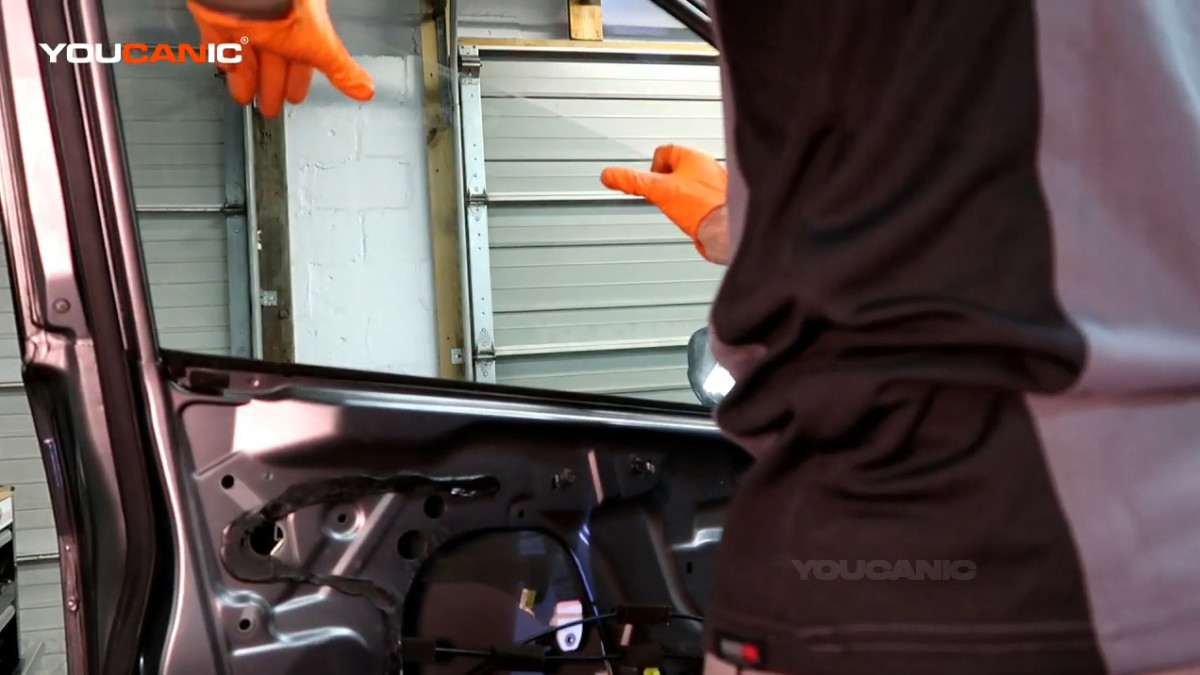

Reinstalling the window of the Honda Fit.

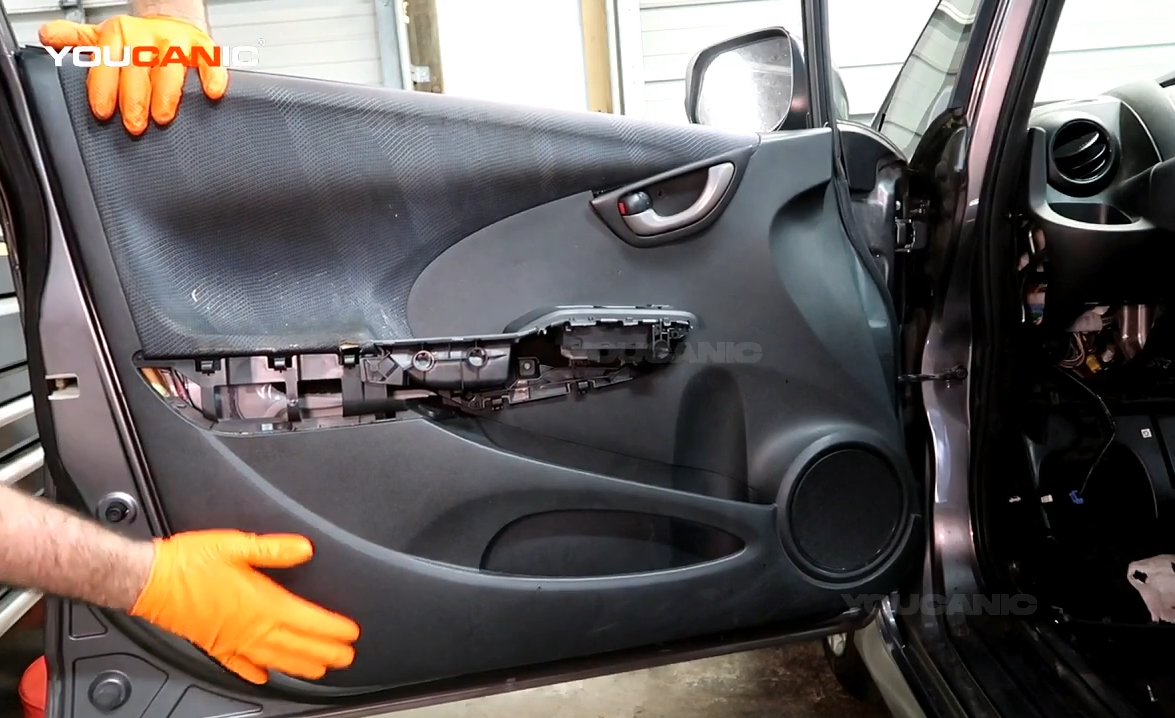

Reinstalling the door panel of the Honda Fit.
