Hyundai Sonata Back Up Light Bulb Replacement

DIY Cost: $5-$20
Est. Time: 5 min

Summary

You will be learning how to replace your reverse light bulb on a 2011-2015 Hyundai Sonata.

Contents



Symptoms

When you shift to reverse, reverse light would not illuminate.

What you will need

Parts

Tools

Procedure

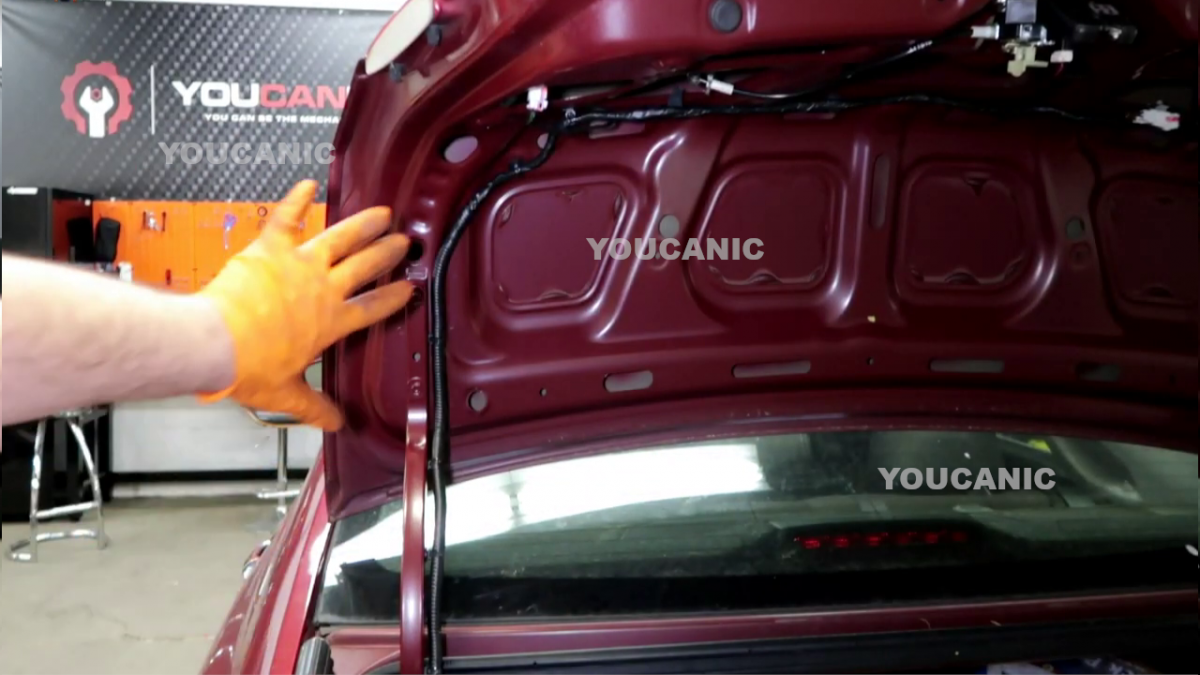

  1. Open the trunk.open-trunk

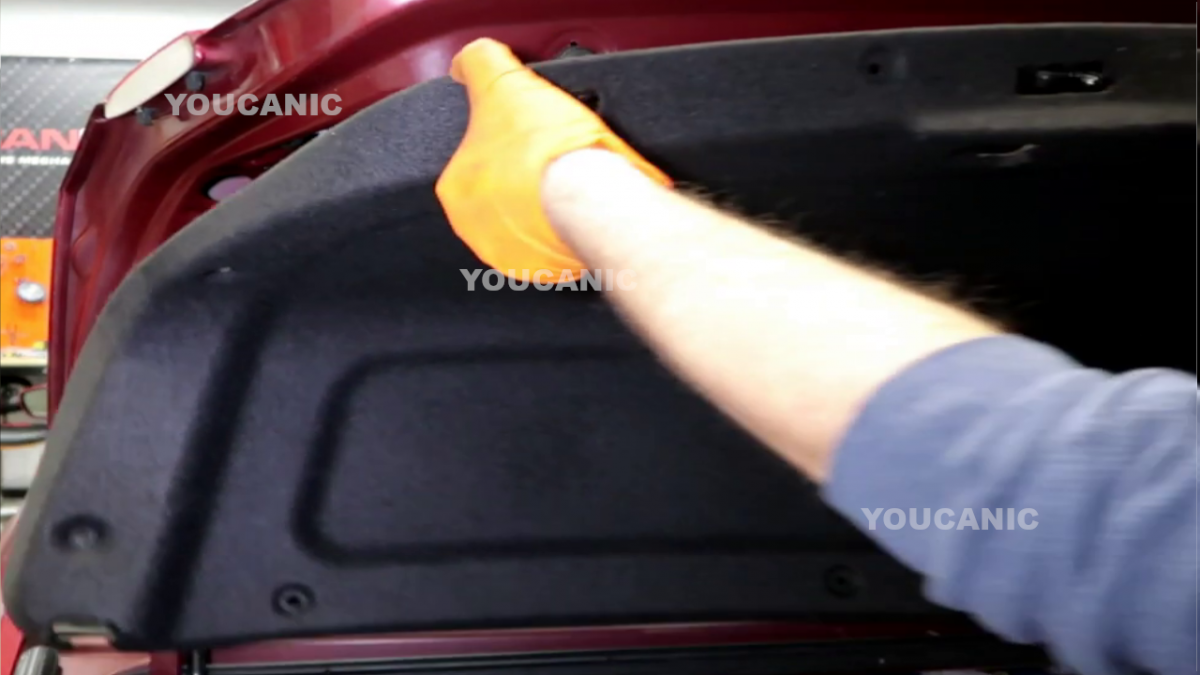

  2. Detach the trunk panel cover by removing plastic retainers, use a Philips screwdriver, turn then pull the retainers out.detach-panelremove-plastic-retainers
  3. You can find the reverse light socket location in the picture below.location

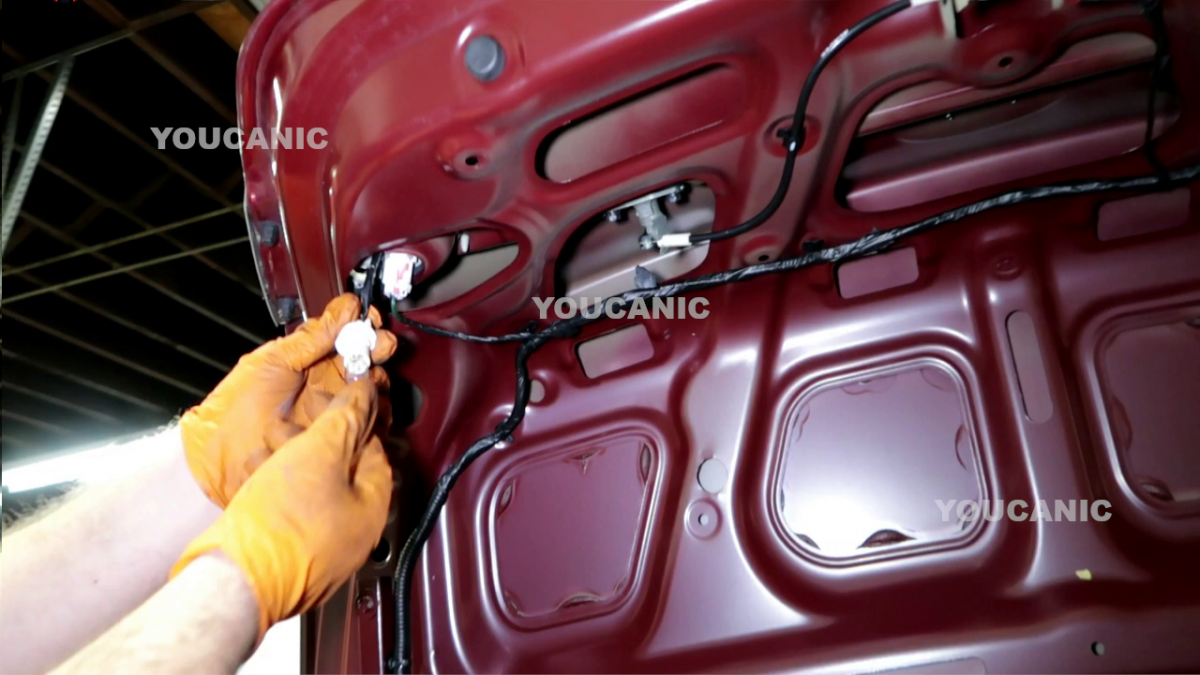

  4. To detach the bulb socket, turn the socket by hand a bit, then pull it out gently; take necessary precautions not to stretch the wire, which is locked in place by a holder. You may gently pull the wire out of the holder while taking the socket out.soketdetach-socket
  5. Remove the light bulb by pulling it by hand with clean gloves, to avoid scratching the bulb.remove-bulb

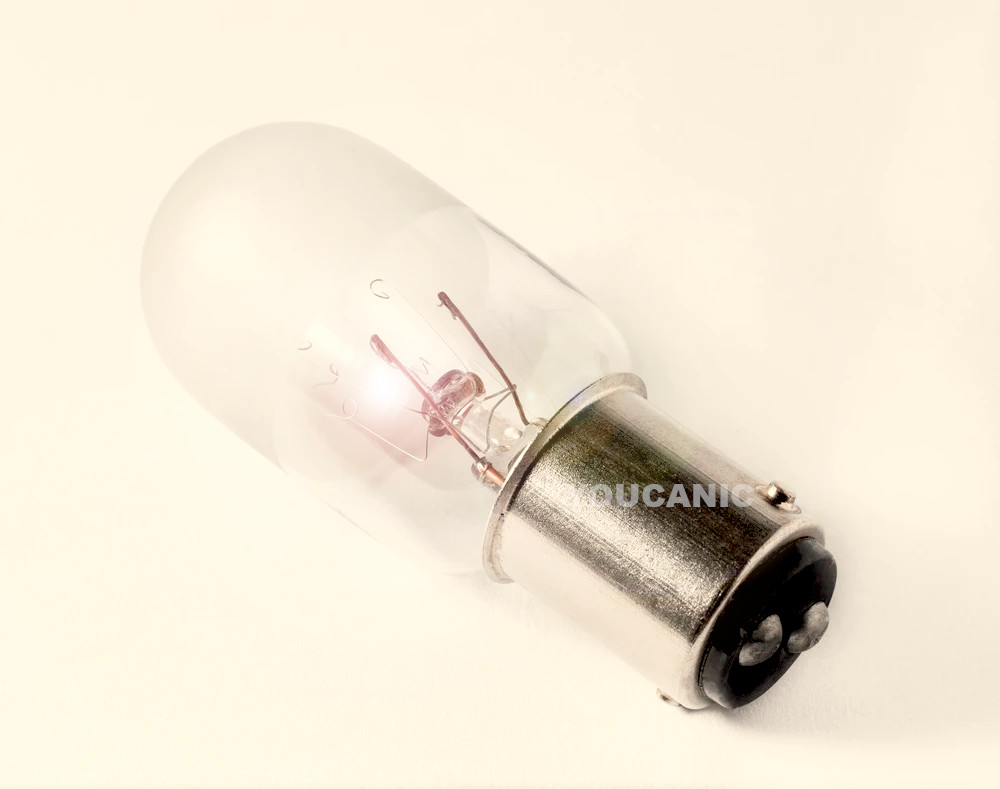

  6. Prepare the new light bulb.prepare-new-bulb
  7. Install the new bulb by gently pressing it into the socket.install-bulb
  8. Reinstall the socket by guiding the three (3) tabs while pushing the socket in; once in, lock the socket by turning it a bit.install-socket1
  9. Reinstall trunk panel.reinstall-panel-cover



  10. Secure the panel by re-installing plastic retainers.



Frequently Asked Questions

Is it legal for a car to have a reversing light?

  • They serve two purposes - to warn other road-users you are about to reverse, and to provide light if you are reversing in the dark.

How long will a new reverse light bulb last?

  • Reverse light bulbs are one of the least frequently employed lights on your car and often last much longer than other bulbs, even to 150,000km and beyond before requiring replacement.

How much would it cost to replace the reverse light bulb?

  • It’s an inexpensive task, usually costing around $5 to $25 to replace, although some specialty models can be costlier.
