Kia OBD2 Port Location

Wondering, where the OBD II port is located on Kia vehicles. You will find the OBD II port right under the dashboard.

Locate OBD-II Port on Kia Vehicles

The OBDII port on Kia vehicles is located on the driver's side, under the dashboard. Here are the steps on how to locate the OBD II port on a Kia.

  1. Open drivers door.
  2. Look under the dashboard on the driver's side.
  3. Some models require that you remove the rectangular fuse box cover if there is any.
  4. Locate the OBD2 port on your Kia. The OBD2 port is a black connector. It has 16 pins and it is distinguishable by its trapezoidal shape.

Examples of Kia OBD2 Port Location

Here are a few examples:

kia obd ii port location

Location of OBD2 port on 2016 Kia Optima

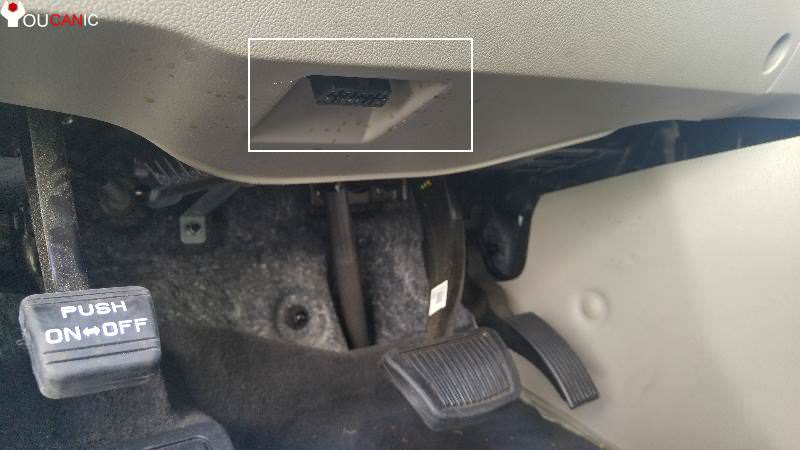

kia obd2 port location sedona

Location of OBD2 port on 2017 Kia Sedona

The OBD II port on a Kia (Sedona, Sorento, Rio, Optima, Forte etc) is used to plug in a diagnostic scanner to read codes and troubleshoot problems.

Using the OBD-II port you can diagnose the Check Engine Light, Airbag, Transmission, ECU, SRS, ABS. In this article, you will learn how to access the OBDII port on any Kia.

Can't find OBD2 port on my Kia

Open the driver's door and look under the dashboard. The OBD2 port should be right above the brake pedal hidden at the end of the dashboard trim.

Vehicle

Feedback

Profile picture for user Vicki Swan
GRANT PURSELL, 2017-07-20

I'm trying to locate the OBD2 port on my 2015 Sedona in order to attach a Progressive 'Snapshot' device. Their website shows a photo of one up under the dash. It is not there. Your website shows it just behind the fuse box cover. It is not there, either. Owner's manual is of no help. I am not an idiot, but I cannot locate it anywhere in that area.

Profile picture for user Vicki Swan
Howard Fitzgerald, 2019-01-14

After sometime I think I found it. 2017 Cadensa. I think it is on the inside cover of the fuse box this being the case I cannot plug in the insurance camera and put the cover back on. Any other chooses.

Profile picture for user Vicki Swan
Doug , 2019-05-05

Where is OBD2 port located on a 2012 Kia Sedona?

Profile picture for user Vicki Swan
Mike izatt, 2019-06-03

Still looking for OBD2 location. 2005 kia optima. Any picture available?
