How to Read Check Engine Light Codes Yourself

In this guide, you will find instructions on using a generic OBD II scanner to scan and clear check engine light codes.

Contents

Checking the check engine codes is very simple, and you can read the codes yourself using an OBD-II scanner. You will find the diagnostic port right under the dashboard on the driver's side.

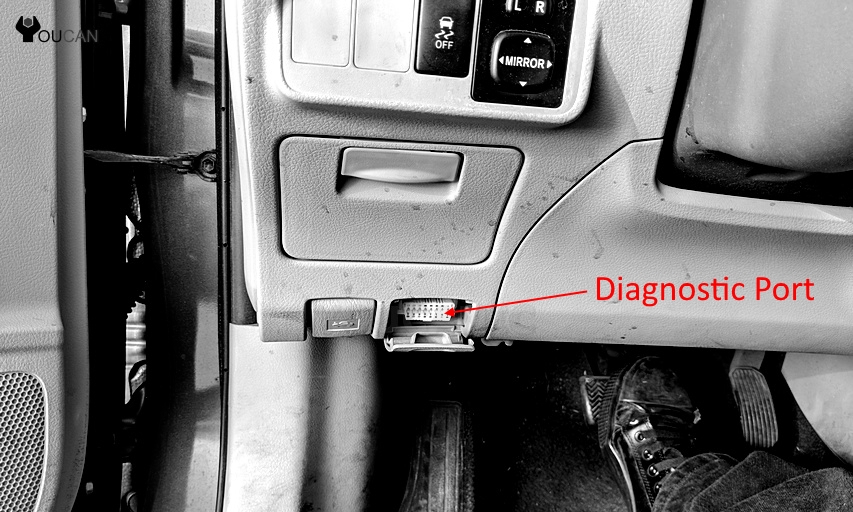

OBD-II port

How to Read OBD Codes

Below is a demonstration of how to read and clear fault codes and monitor Emission control devices' readiness using an OBD-II scanner

Procedures for reading and clearing check engine codes.

  1. Plug the scanner on and turn on the ignition.
  2. Select OBD-II and press ok.select-obd2



  3. The scanner would go through different protocols to find the communication protocol that your ECM uses for OBD communication.protocol-list



  4. Once communication is established, a screen will show the summary of fault codes found (DTC). You should pay attention to the item "Rediness Not Completed," the value should be zero if it is more than zero it means that one or more test has not been executed, Or one or more codes has been erased. This may cause your vehicle to fail an emission inspection.fault-summary



  5. Press okay to go to the Diagnostic Menu; this will redirect you to another screen with menu options like "Read Codes," "Erase Codes," ECU or ECM live data monitoring and others. diagnostic-menu



  6. To read codes, in Diagnostic Menu, choose "Read Codes" and press ok. There will be a next screen with the title "DTC" that would display all the thrown fault codes and a description of the code. These codes will be displayed one page at a time. Note: You may want to research the code for your specific car model to pinpoint the problem accurately.dtc



  7. Press the right button to navigate to the next trouble code.next-codenext-code2



  8. Press escape once to go back to the Diagnostic menu or multiple times to go back to the main menu.
  9. Once the problem is fixed, you can erase the code; you can do steps 1 to 4 to then choose to Erase Codes and press ok, press ok again on the next prompt to confirm code erasure. Note: erasing the codes without fixing the problem would cause the code to re-appear, thus turning on your check engine light.Erase-codes
  10. Once you have the code, write it down and visit our Diagnostic Trouble Code Database to learn what each code means.

Procedures for checking Immision Readiness:

  1. Repeat steps 2-4 on the section "Procedures for reading and clearing codes," then in the Diagnostic Menu, choose  I/M Readiness and press OK.Im-readiness



  2. If you have erased the codes, you may go to the "Since DTCs Were Cleared " and press ok.dtc-erased

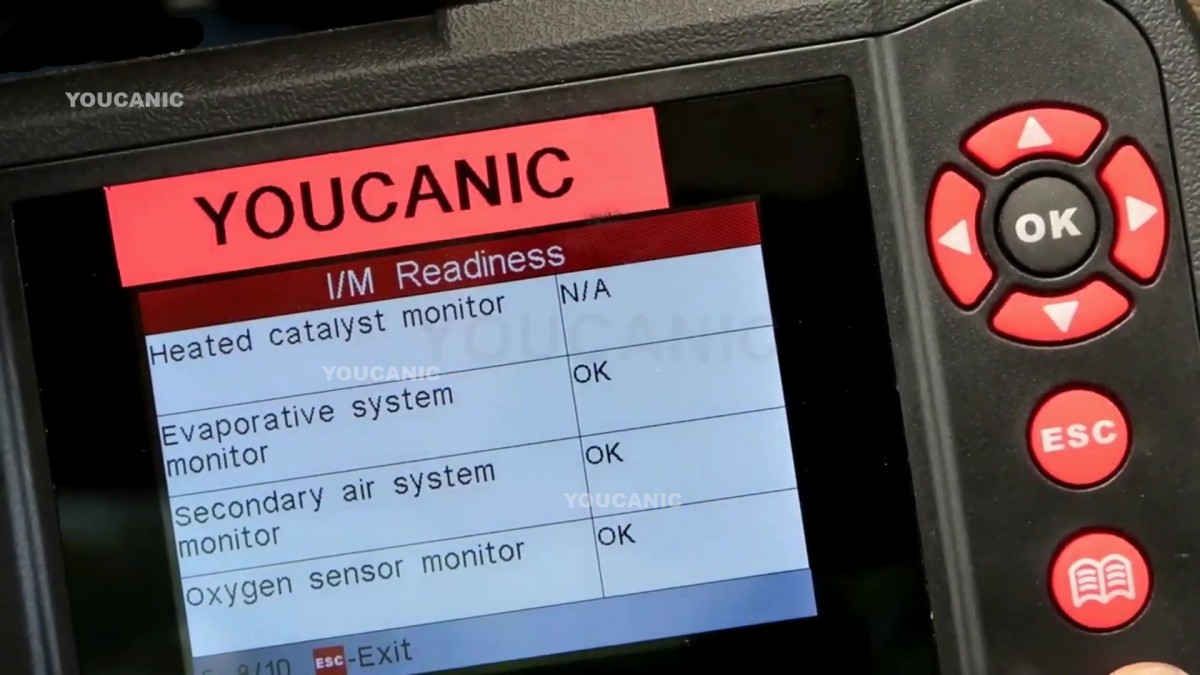

Navigate thru the "I/M Readiness" list by using the arrow down key and verify that no list item has a status of Not Ready. Note: If any list item has a "Not Ready" status, you may not pass the emission test.

E-List

Frequently Asked Questions

Does the car have to be running to use the OBD-II Scanner?

  • Always turn the ignition on or have the car running according to the instructions in the manual. Failure to do this might corrupt the scanning software.

What vehicles are OBD II compliant?

  • 1996 or newer model year vehicle sold in the United States. United States legislation requires all cars and light trucks model year (MY) 1996 and newer to be OBD2 compliant.
  • 2001 or newer model year gasoline vehicle sold in the European Union.
  • 2004 or newer model year diesel vehicle sold in the European Union.

How can I check my car code?

  • You can check the codes in your car using an OBD-II scanner that gets plugged in under the dashboard, driver's side.

Where can I get engine codes read for free?

  • You can get your codes read for free at auto parts stores such as AutoZone or Advance Auto Parts.

How can I read my car code without a scan tool?

The early internal combustion engines were tough and rugged, but fuel efficiency and performance are very low. To solve this, Engineers have hooked up an onboard computer to the engine to control efficiency and performance. With the help of sensors, which feed real-time data to the onboard computer, the Engineers were very successful.

However, additional sensors mean additional failure points; as a result, troubleshooting would become a nightmare for mechanics or technicians.

To solve the problem, the Engineers have designed an Onboard diagnostics dubbed as OBD-I. To access the error codes, the mechanic would short a terminal and count the blinks of the check engine light, then match the count to an error code chart. This was okay but still very hard to comprehend for most mechanics.

The car modules have multiplied ever since, and it would be very challenging to count the blinks, so the engineers have designed a new Onboard Diagnostics that requires a scanner or a code reader to extract the codes. This new technology is called OBD2 or OBD-II.

An OBD-II scanner allows you to read and clear Diagnostic Trouble Codes (also known as fault codes, DTCs) on vehicles 1996 and newer.

Your dealer and mechanic use an OBD-II scanner to diagnose most of the problems with today's vehicles.  While the scanners used at the dealership are the most advanced and expensive, aftermarket scanners are readily available for DIYers who want to troubleshoot their own vehicles.
