Window Regulator Removal Toyota Camry XV50 2012-2017

Step-by-step procedure on how to remove the window regulator on a 2012-2017 Toyota Camry XV50.

Window Regulator Removal Toyota Camry XV50 2012-2017
ESTIMATED TIME 30 - 40 mins
DIY COST $ 30 - 100
DIFFICULTY Intermediate

What you will need

Procedure

  1. Remove the door panel and window glass. See  2012-2017 Toyota Camry Door Window Glass Replacement (youcanic.com) for the removal procedure.

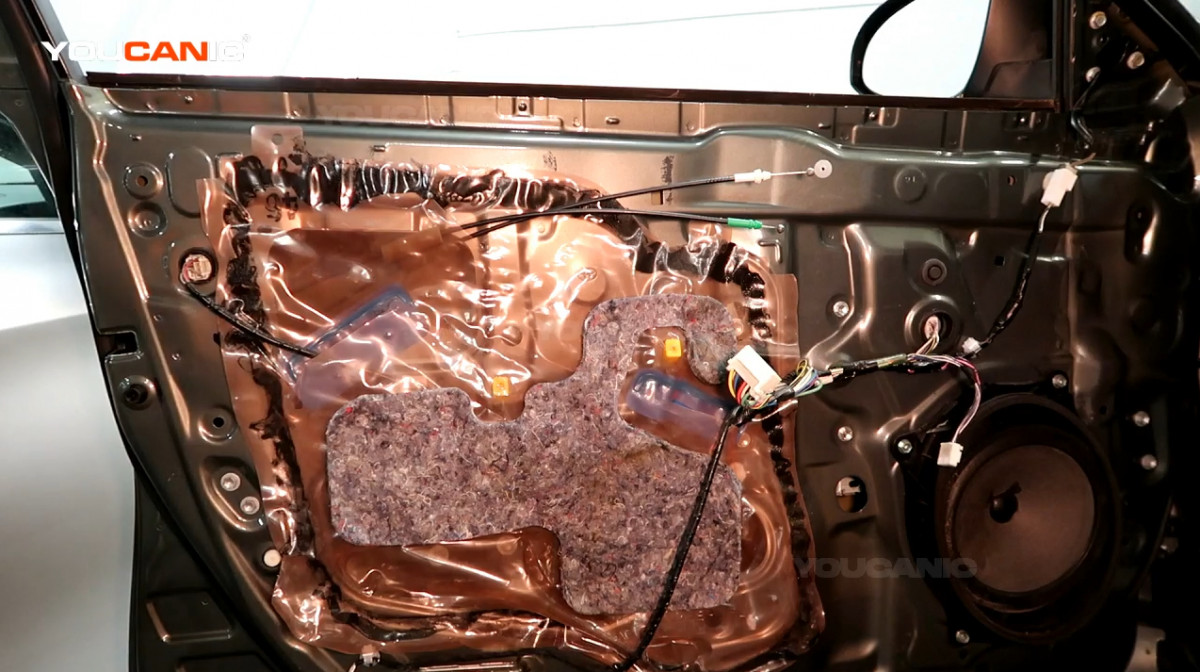

Removed door panel of the 2012 Toyota Camry.

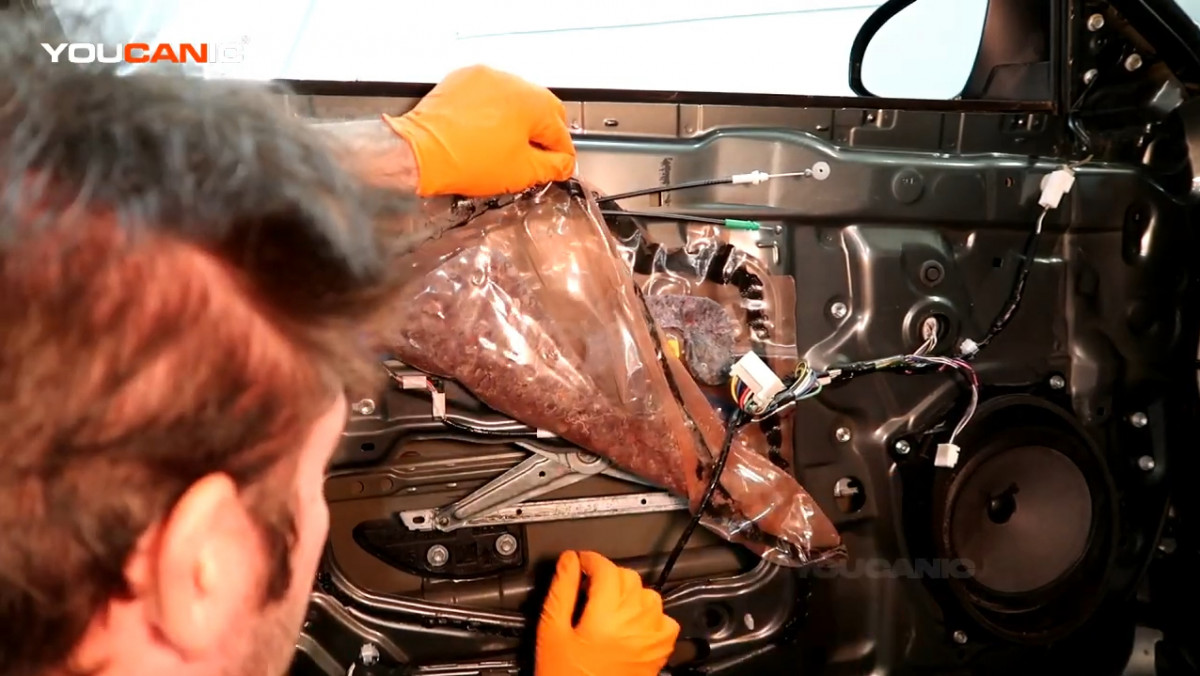

2.Pull the plastic cover out or pull up the lower part of the plastic cover.

Pulling the plastic cover on the door up.



3. Remove the two 10mm bolts on the center of the door. Use a 10mm socket wrench and twist it counterclockwise to remove the bolts.

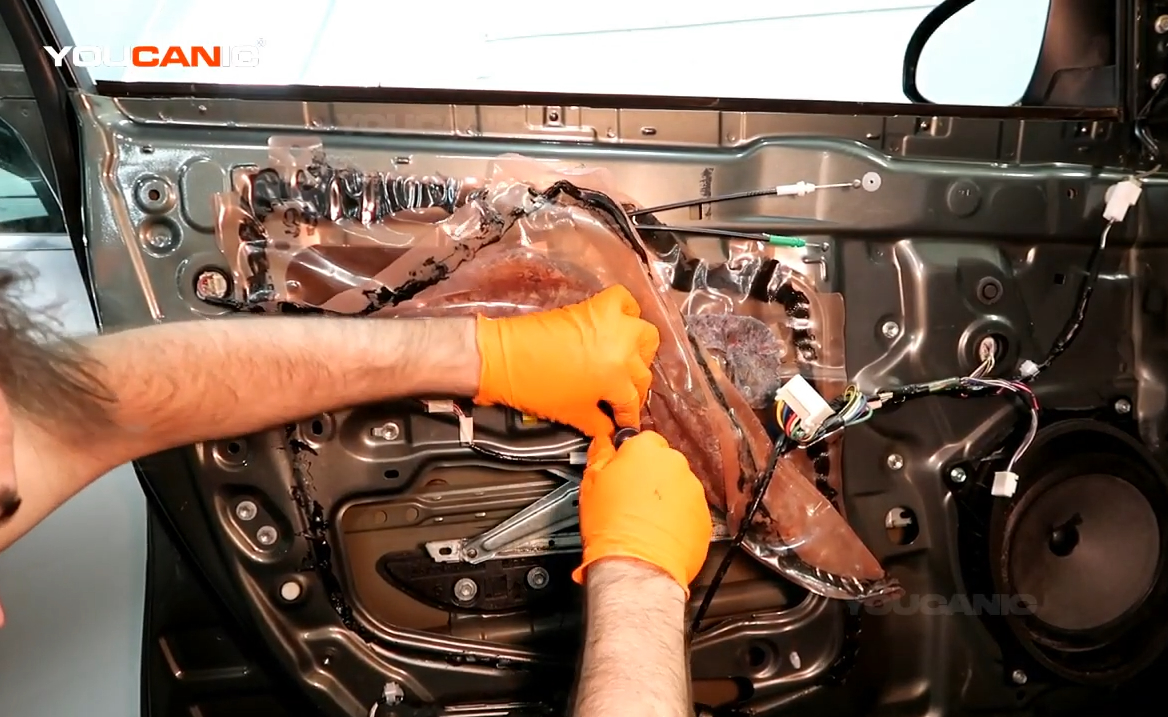

Removing the bolts holding the window regulator.

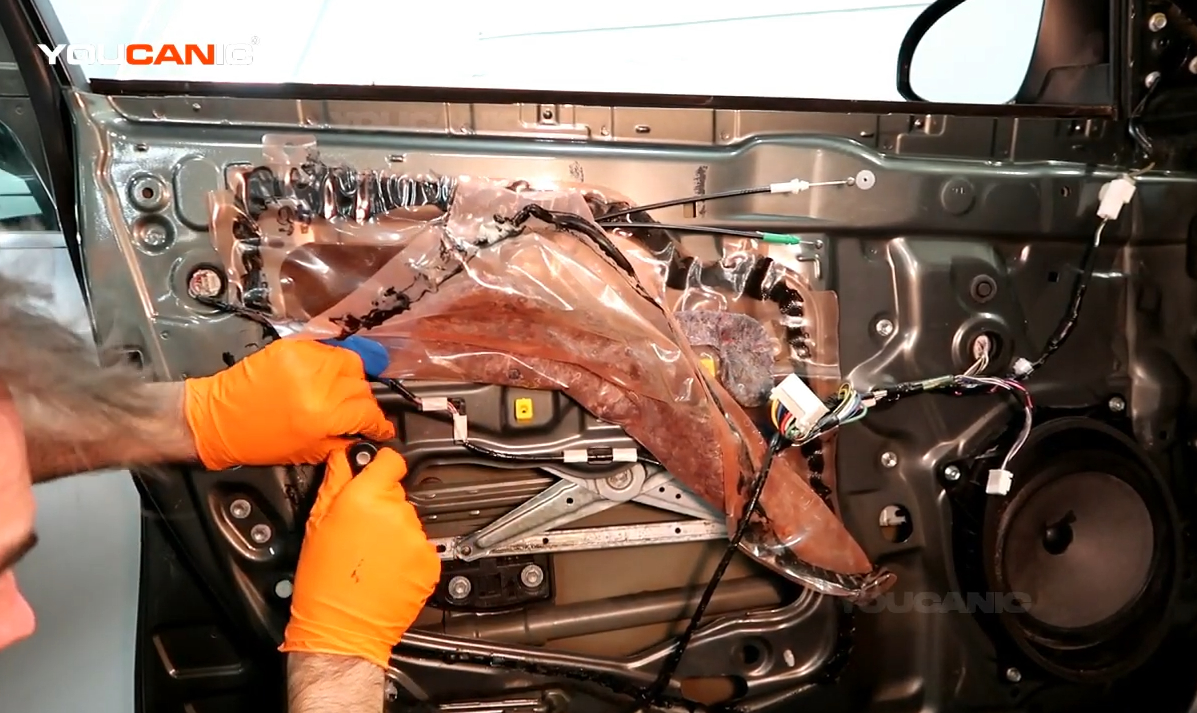

Removing the bolts holding the window regulator.

4. Disconnect the electrical connector of the window regulator by pushing the clip and pulling the connector out.

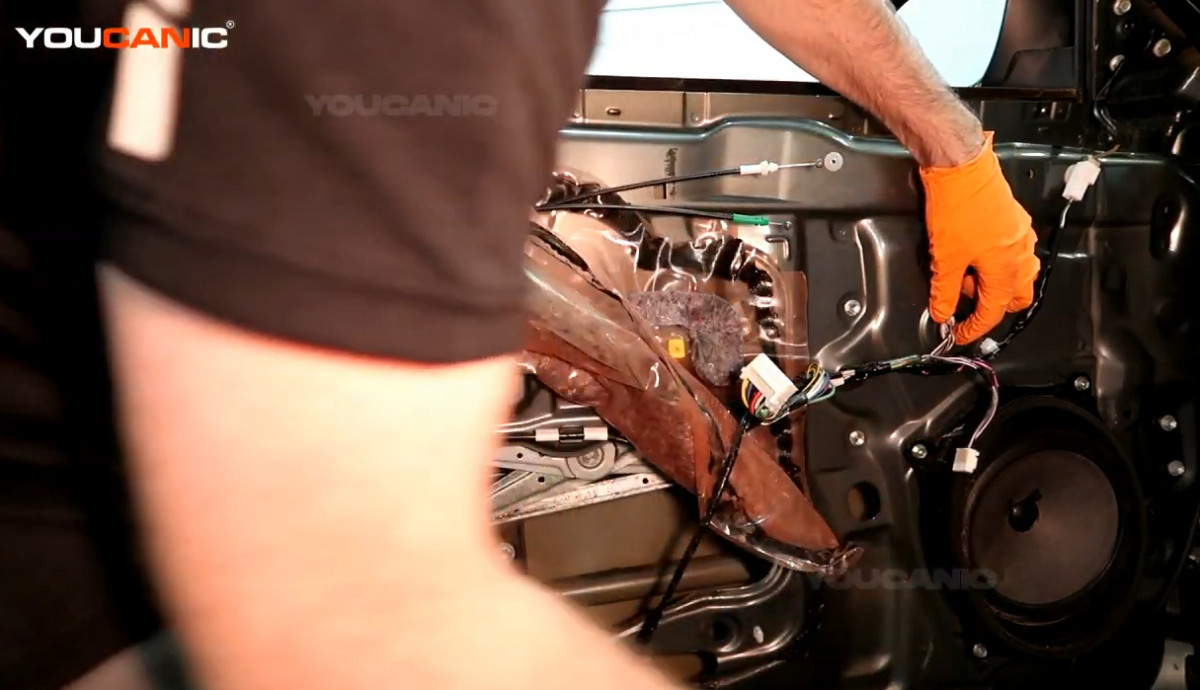

Disconnecting the connector of the window regulator.



5.Remove the three 10mm bolts on the right side of the window regulator.

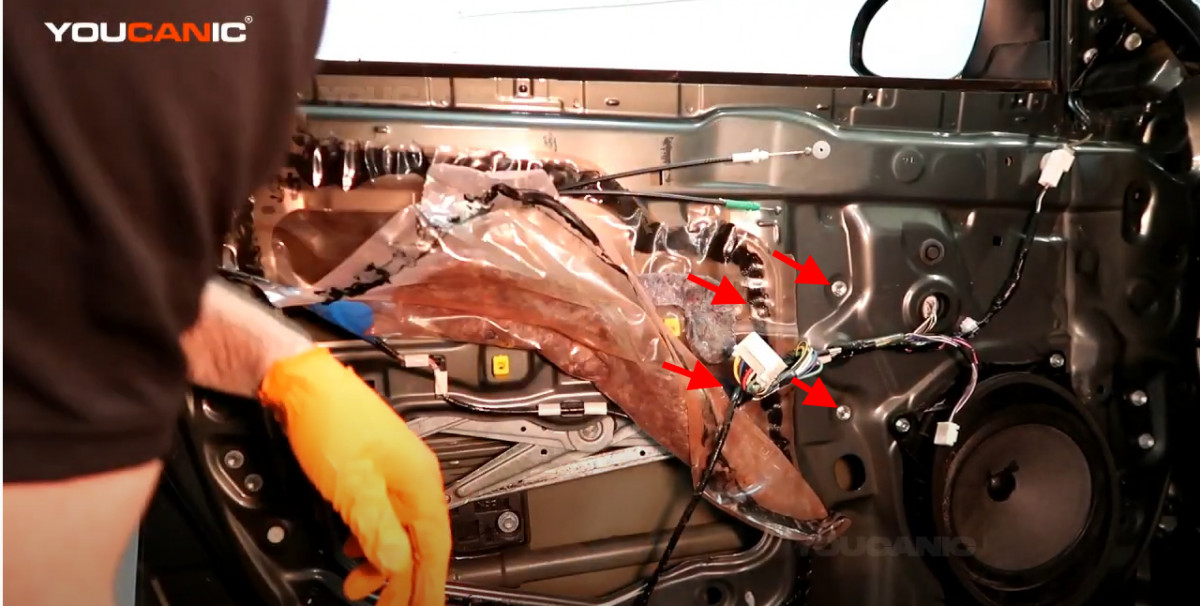

The bolts holding the window regulator.

6. The bolt pointed on the upper left arrow doesn't need to be removed but needs to be loosened.

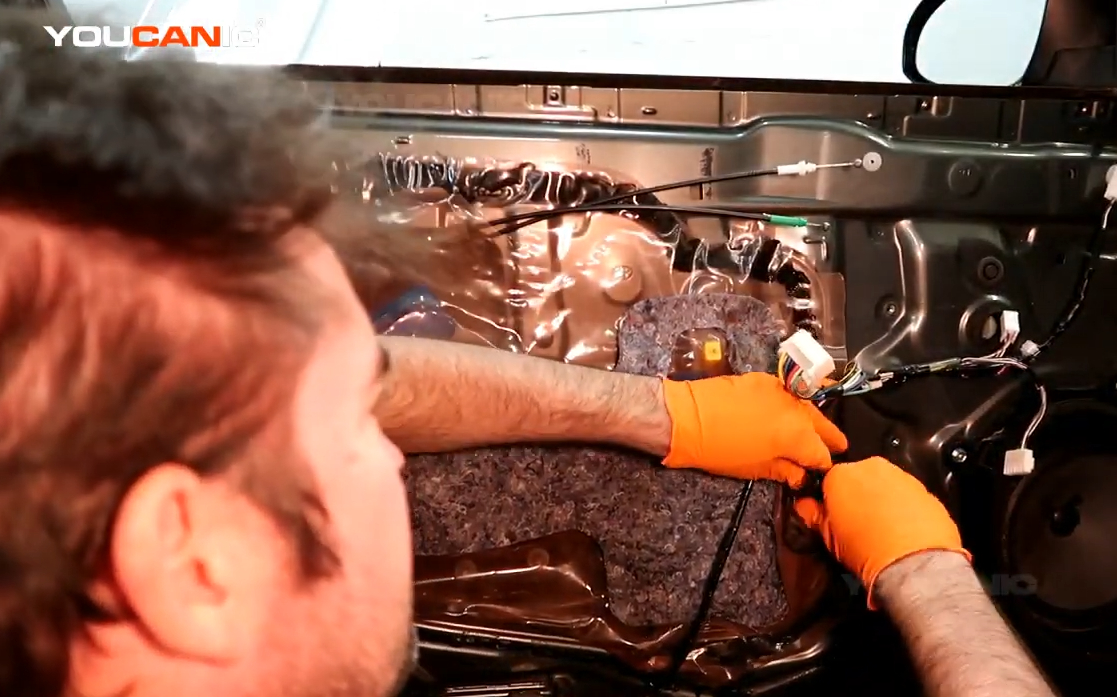

Removing the bolts holding the window regulator.



7.Push and remove the window regulator from the door.

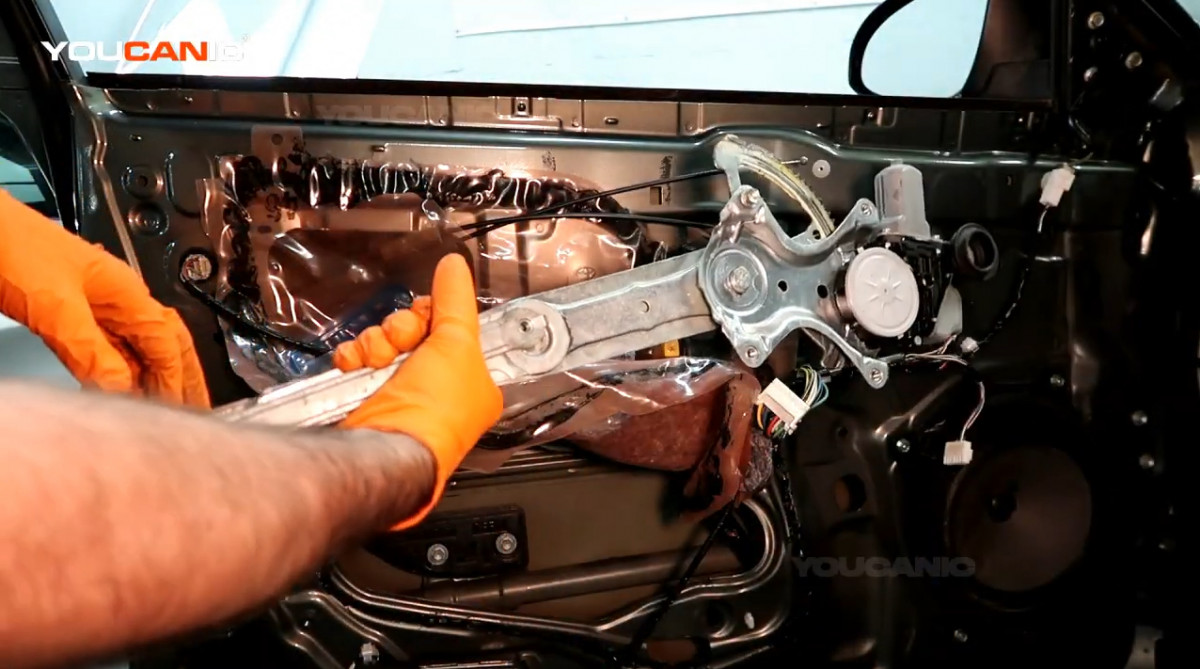

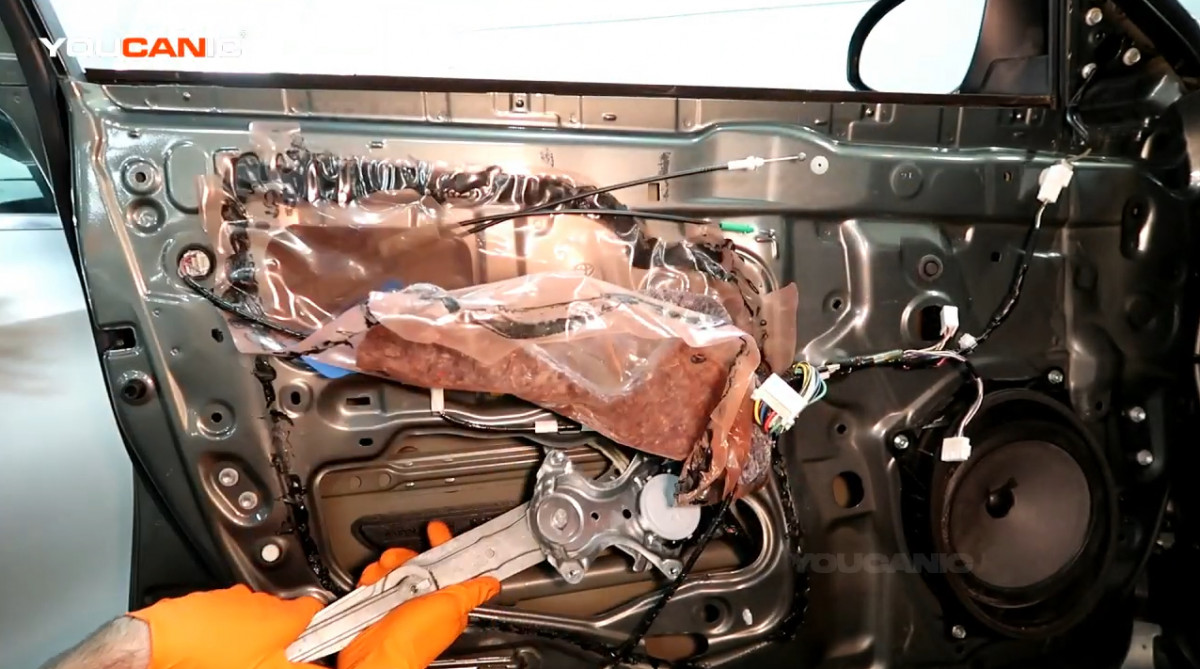

Carrying the window regulator out from the door.The window regulator on the driver's door.
