Regular brake checks are crucial for your safety on the road and the well-being of your car. By regularly checking your brake fluid, you are sparing yourself from costly repairs down the road. This step-by-step guide will show you how to check and, if needed, refill the brake fluid in your 2008-2017 Volvo XC60.
_______________________________________________________________________
⏱️When to check brake fluid level: Monthly or at every oil change.
_______________________________________________________________________
Required Brake Fluid Specifications
- Required Fluid Type: DOT 4 (p. 387).
- Volume: 0.63 QTS (0.6 Liters) (P. 387).
- Manufacturer-recommended brands: Volvo brand brake fluid
⚠️WARNING: Using the wrong DOT brake fluid type can cause a system failure. Check your car’s user manual for which DOT you need to use. - Never reuse old brake fluid.
Step-by-Step Guide
- Make sure the vehicle is turned off and cool.
- Find and pull the hood release lever on the driver’s side near the floor.
- Walk to the front of your vehicle, find the hood safety latch under the front hood, and lift upward after releasing it.
- Find the hood prop rod and pull it out to keep the hood open.

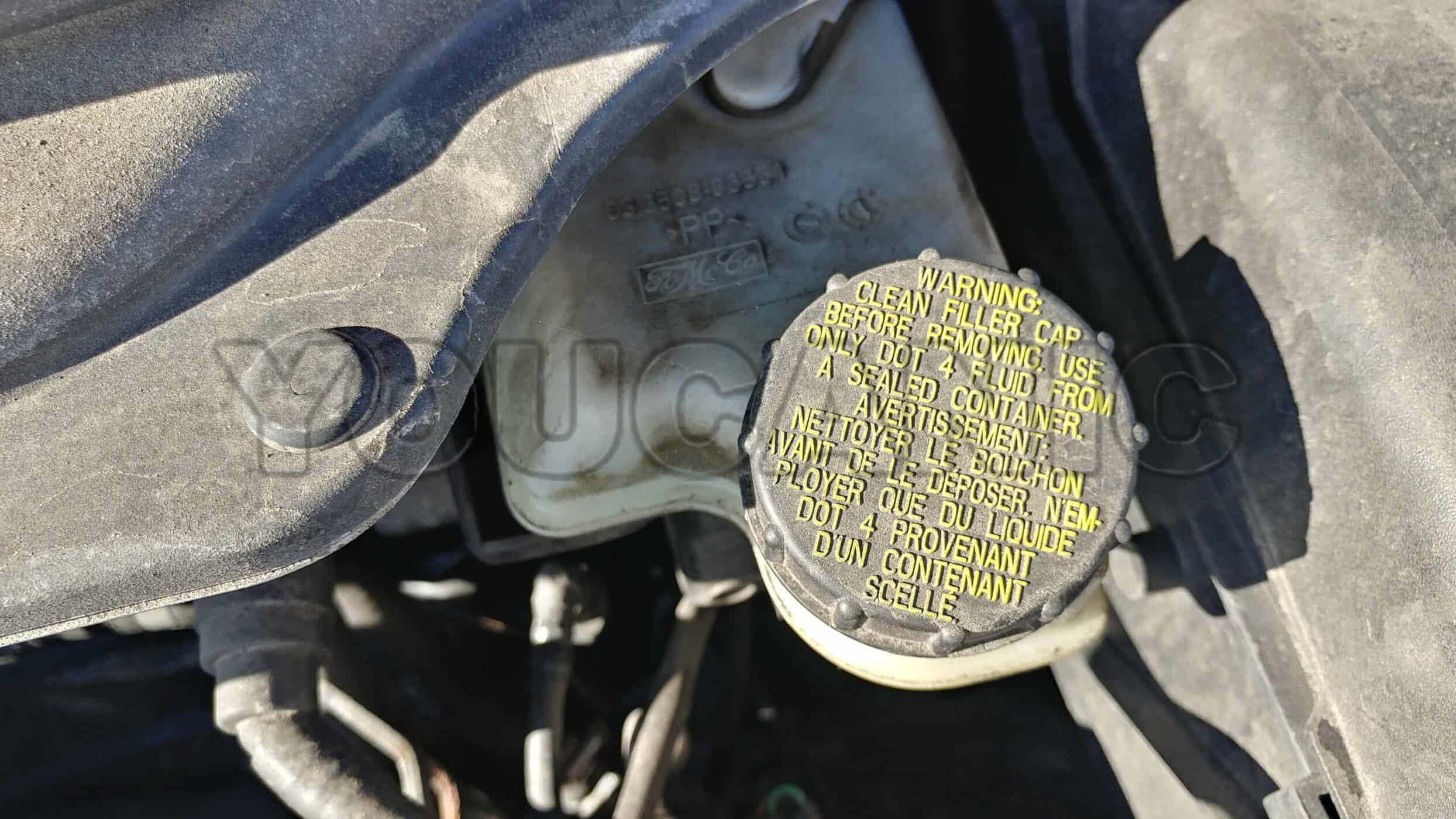

- Find the brake fluid reservoir. On the 2008-2017 Volvo XC60, the reservoir is located at the back of the engine bay, near the driver’s side.

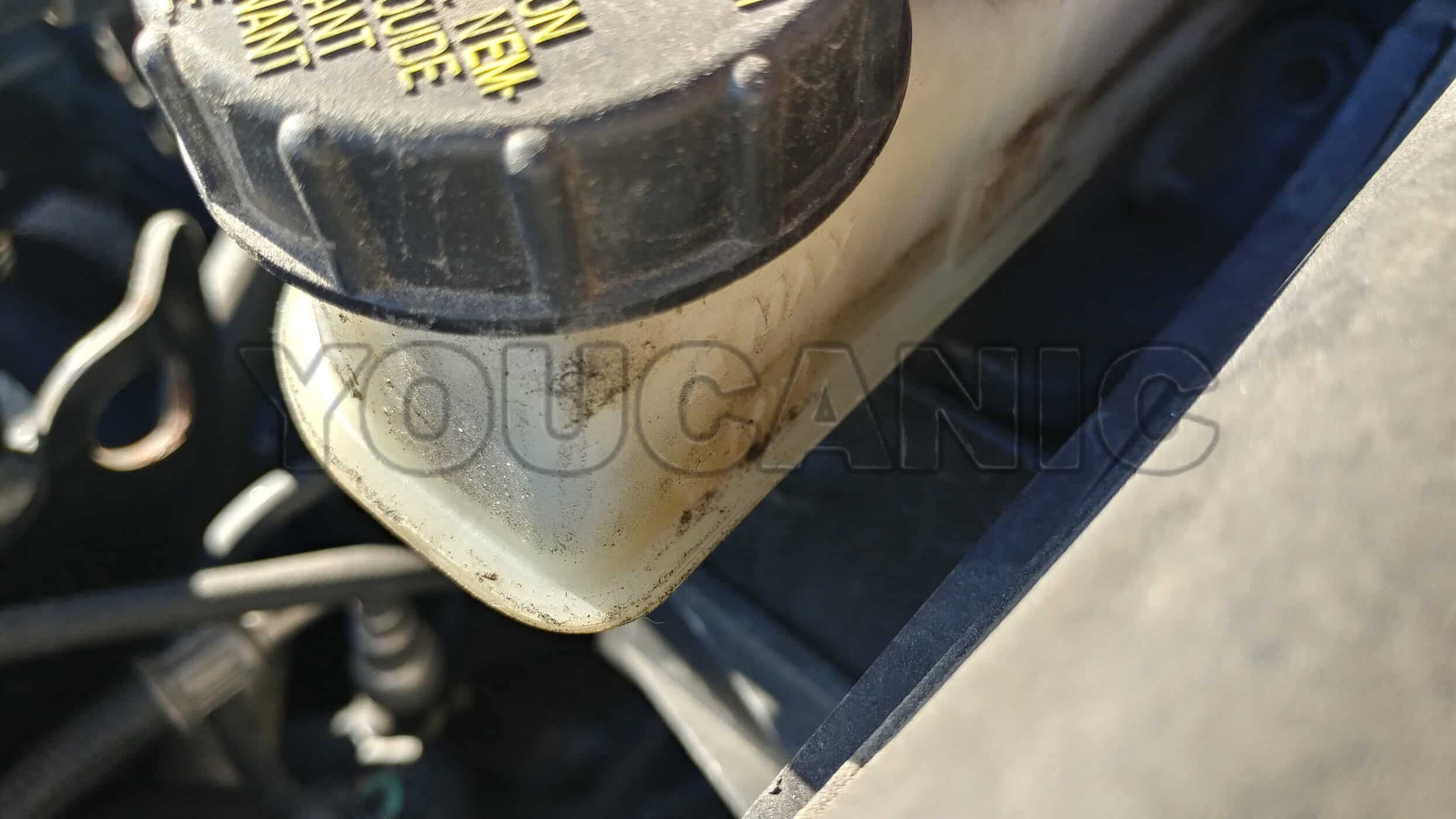

- The brake fluid reservoir should have “MIN” and “MAX” marks. Check your brake fluid level; ideally, it should be between those markers.
- If needed, add brake fluid:
- Clean around the cap to ensure no contaminants enter the reservoir.
- Pour in a little brake fluid at a time using a funnel to ensure you are not overfilling.
⚠️Warning: Ensure you use the correct DOT for your vehicle and do not overfill.
- Replace the Cap and Check. Ensure the cap is properly sealed.
Notes
- Professional Service: Topping up or replacing brake fluid should only be done by a trained and qualified Volvo service technician. If you notice a significant drop in brake fluid levels, it may indicate a leak or other issues in the braking system.
- Warning Signs: Do not drive the vehicle if the brake fluid level is below the MIN mark or if a warning message is displayed in the text window. Have it towed to a qualified technician for inspection (2015 Volvo XC60 Owner’s Manual, 347).
- Regular Maintenance: Regularly check the brake fluid level as part of your vehicle maintenance routine to ensure safe operation. The brake fluid might need to be filled or replaced more often if you are regularly driving in extreme conditions such as mountain driving (2015 Volvo XC60 Owner’s Manual, 347).
This information is based on the 2015 Volvo XC60 owner’s manual, and it is always best to refer to your specific manual for the most accurate and detailed instructions.
⚠️Important Warnings
- Low fluid may indicate worn-out brake pads.
- Never reuse old brake fluid.
- Avoid skin contact.
- Keep fluid off the paint.
- Do not overfill.
When to Seek Professional Help
- Fluid loss.
- Spongy brake pedal.
- Warning light on.
- Contaminated fluid.
- Brake system repairs are needed.
References
- 2015 Volvo XC60 Owner’s Manual. 2013.
