2016-2025 Volvo XC90 – How to Check and Add Engine Oil

on January 31, 2025 | Written by Olivia Zachman

Difficulty

Easy

Time

5-10 minutes

Unlike traditional vehicles, the 2016-2025 Volvo XC90 uses an electronic oil monitoring system instead of a dipstick. This guide shows you how to accurately check your engine oil level using the vehicle’s center display and maintain proper oil levels for optimal engine performance.

System Requirements

  • Engine: Must be off for checking
  • Vehicle Position: Level ground
  • Driving Distance: 20 miles (30 km) before checking
  • Wait Time: 5 minutes after parking
  • Temperature: Engine cold

Checking Oil Level

  1. Drive the vehicle for at least 20 minutes, then park it on level ground and allow it to cool down for at least 5 minutes. Pull over and shut off the engine immediately if the oil light comes on during this phase. Have the vehicle checked by a certified mechanic. Dashboard Warning Lights
  2. Turn the ignition to the OFF position and ensure the engine is not running. Ignition Off
  3. From the center display’s Home view, swipe right to left to access the App view. Dashboard

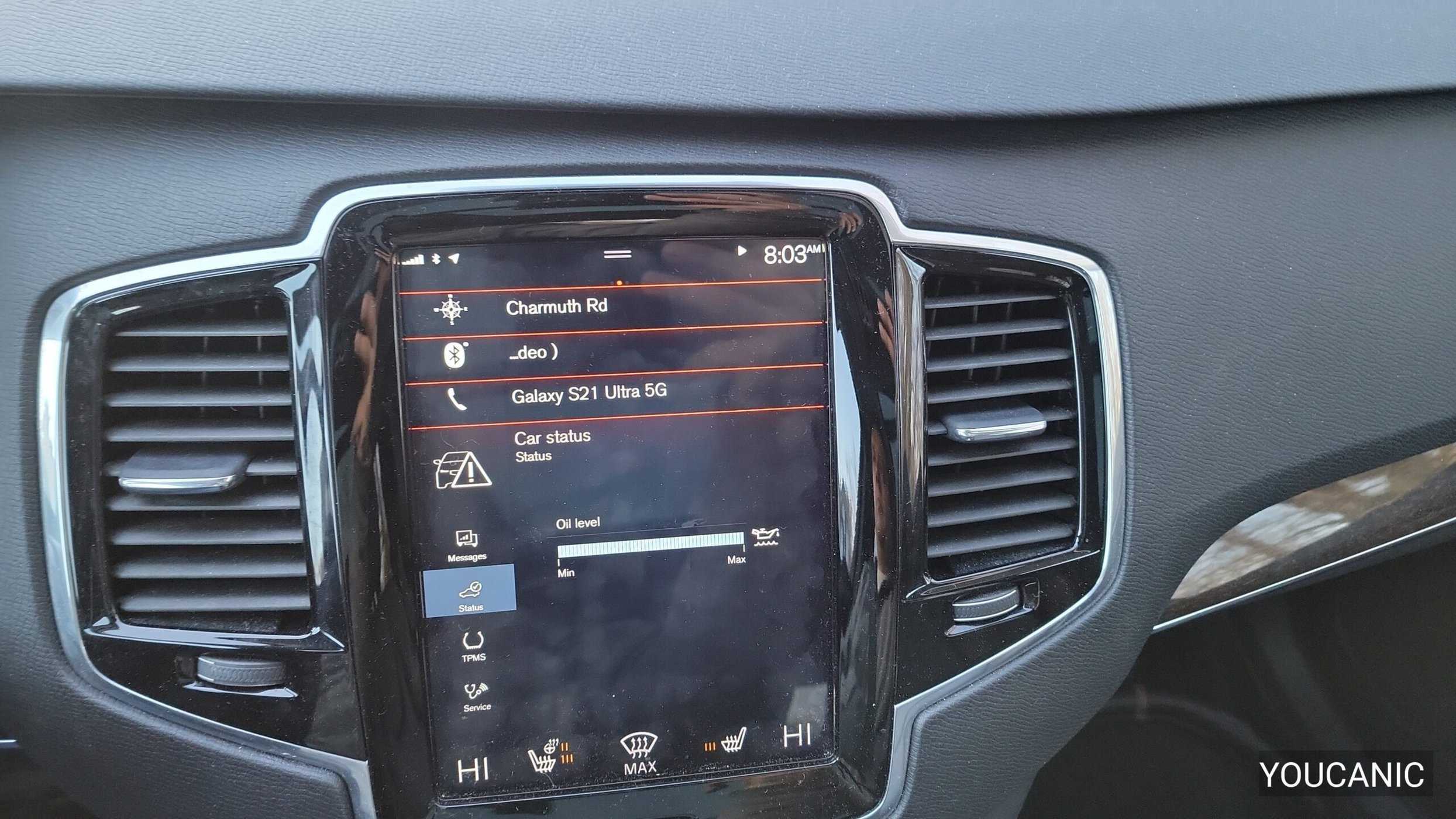

  4. Tap “Car status” then “Status” to view the electronic oil level reading. The oil level will show between the MIN and MAX mark. Volvo Xc90 Level

Adding Oil Step-by-Step

  1. Locate and pull the hood release handle under the dashboard on the driver’s side. Image Of The Lever Inside The Car Used To Release The Hood.
  2. Walk to the front of your vehicle and find the hood safety latch under the hood’s front edge. Push the latch to the side to fully release the hood. Hood Latch At Front
  3. Lift the hood and locate the the oil filler cap marked with the oil can symbol on top of the engine. Engine Bay Overview
  4. Clean the area around the cap to prevent debris from falling into the engine. 20250115 093330 Scaled - 2016-2025 Volvo Xc90 - How To Check And Add Engine Oil
  5. Unscrew the oil filler cap by turning it counterclockwise. Place the cap in a clean area. 20250115 093330 Scaled - 2016-2025 Volvo Xc90 - How To Check And Add Engine Oil
  6. Add oil slowly, no more than 1 quart (1 liter) at a time. Use a funnel to prevent spills. Engine Bay Overview
  7. Wait 5 minutes, then check the oil level using the center display. Dashboard Warning Lights
  8. Once you resume driving, monitor your dashboard for any warning messages during the process. Dashboard Error Lights
  9. Once the proper level is reached, securely replace the oil filler cap and ensure it’s fully tightened. 20250115 093330 Scaled - 2016-2025 Volvo Xc90 - How To Check And Add Engine Oil

Oil Specifications

  • Oil Type: Fully Synthetic ACEA A5/B5
  • Oil Viscosity: SAE 5W-30 (normal conditions)
  • Special Grade: VCC RBS0-2AE/SAE 0W20 (extreme conditions)
  • Oil Capacity: 5.6 liters (5.9 quarts)
  • Oil Filter: Part Number 32140029
  • Recommended Brands: Castrol, Edge, Professional
  • Change Interval: Per service schedule

Important Notes

  • Vehicle must be driven 20 miles for accurate reading
  • Wait 5 minutes after parking on level ground
  • Never overfill the oil level
  • Use only specified oil type
  • Document oil additions

Tools Required
