Scion xB 2008-2015

The Scion xB, produced from 2008 to 2015, represented the second generation of this distinctive compact wagon-like vehicle known for its unique design and practicality. The xB underwent a significant redesign, departing from its original boxy appearance to adopt a slightly more streamlined and modern exterior design. While still maintaining a squared-off shape, the xB II featured cleaner lines and a more polished look. The cabin continued to offer an impressively spacious and versatile environment, especially given its compact size. Passengers enjoyed ample headroom and legroom, making it a comfortable choice for short commutes and longer journeys. The interior design remained functional and user-friendly, with straightforward controls and a focus on utility. The rear seats were foldable, providing substantial cargo space and cementing the xB's reputation as a practical and adaptable vehicle for various transportation needs.

Regarding performance, the xB II aimed to provide a comfortable and efficient driving experience. It was equipped with a suitable engine for city driving, delivering reasonable fuel efficiency. While not a high-performance vehicle, the xB was appreciated for its maneuverability, making it well-suited for urban driving and parking.

Scion TC specification, engine oil capacity, spark plug gap, safety rating, fuel consumption, transmission, and light bulb sizes.

Engine 2.4L 4-Cylinder DOHC

• Recommended Oil viscosity: 0W-20
• Recommended Engine Oil: API
• Drain Plug Torque: 30FT-LBS
• Oil capacity: 6.4 qt

Spark Plug Gap

• 2.0L 4-Cylinder: 0.031′

Fuel

• Capacity: 14.5 gal. (55 L, 12.1 Imp.gal.)

Cooling System

• Type:
  • “Toyota Super Long Life Coolant”
  • Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology. Do not use plain water alone
• Capacity:
  • Manual transmission: 4.7 qt. (4.4 L, 3.9 Imp.qt.)
  • Automatic transmission: 4.5 qt. (4.3 L, 3.8 Imp.qt.)

Manual Transaxle

• Type:

Use either of the following:
• “TOYOTA Genuine Manual Transmission
Gear Oil LV”
• Other gear oil that meets API GL-4 and
SAE 75W specifications

• Capacity: 2.4 qt. (2.3 L, 2.0 Imp.qt.)

Automatic transaxle

• Type: Genuine ATF Type T−IV
• Capacity: 3.1 qt. (2.9 L, 2.6 Imp.qt.)

Clutch

• Type: SAE J1703 or FMVSS No. 116 DOT 3

Brakes

• Type: SAE J1703 or FMVSS No. 116 DOT 3

Steering

• Type: Automatic transmission fluid DEXRON II or III

Powertrain

Engine

• 1.5 L 1NZ-FE I4 (Rumion)
• 1.8 L 2ZR-FE I4 (Rumion)
• 2.4 L 2AZ-FE I4

Transmission

• 5-speed E351 manual transmission
• 4-speed U241E automatic transmission

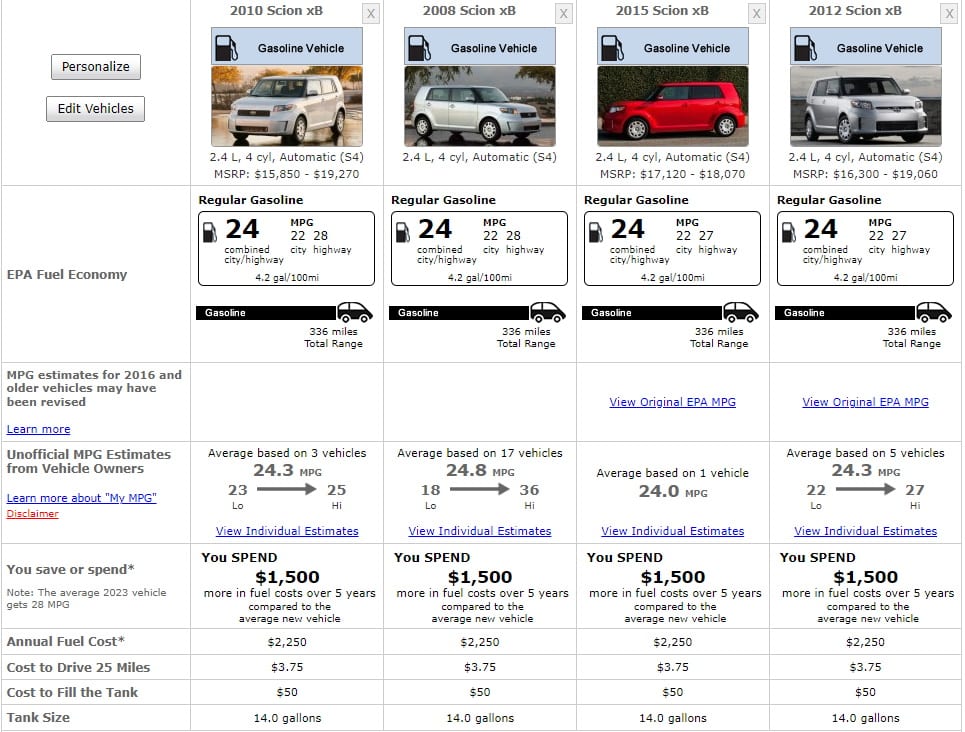

Fuel Consumption

Front Lights

• Daytime Running Light Bulb: 1156NA
• Front Sidemarker Light Bulb: 168
• Front Turn Signal Light Bulb: 1156NA
• High Beam and Low Beam Headlight Bulb: 9012

Rear Lights

• Back Up Light Bulb: 921
• Brake Light Bulb: LED
• Center High Mount Stop Light Bulb: LED
• License Plate Light Bulb: 168
• Parking Light Bulb: 168
• Rear Sidemarker Light Bulb: 168
• Rear Turn Signal Light Bulb: 7440NA

Interior Lights

• Dome Light Bulb DE3175
• Map Light Bulb: 168
• Trunk Light Bulb: DE3022
