Ford Escape 2020-Present

The current-generation Ford Escape, introduced in 2020, represents a significant departure from its predecessor, with a more modern and car-like design. It showcases a sleeker exterior with smoother lines and a stylish front grille. Inside the cabin, the Escape boasts improved materials and a spacious, comfortable environment for passengers and cargo. Technologically, it incorporates Ford's latest SYNC infotainment system with an intuitive touchscreen interface, smartphone integration, and advanced safety features such as adaptive cruise control, lane-keeping assist, and more. This Escape has various powertrains, including hybrid and plug-in options, catering to eco-conscious buyers.

The 2020-present Ford Escape offers a range of engine choices, catering to different driving preferences. It delivers a comfortable and composed ride, making it suitable for daily commutes and longer journeys. The hybrid variants bring excellent fuel efficiency to the lineup, making it a compelling choice for those seeking a greener driving experience. With its blend of technology, versatility, and efficient powertrains, the current-generation Escape remains a strong contender in the highly competitive compact SUV market.

Ford Escape specification, engine oil capacity, spark plug gap, safety rating, fuel consumption, transmission, and light bulb sizes.

Engine 1.5L 4-Cylinder DOHC

• Recommended oil viscosity: 5W-20
• Oil certification: API
• Oil capacity: 4.3 quarts

Spark Plug Gap

• 2.3L 4-Cylinder: 0.028’’

Engine 3.0L 6-Cylinder DOHC

• Recommended oil viscosity: 5W-30
• Oil certification: API
• Oil capacity: 5.7 quarts

Spark Plug Gap

•  2.0L 4-Cylinder: 0.032’’

Engine 3.0L 6-Cylinder DOHC

• Recommended oil viscosity: 5W-20
• Oil certification: API
• Oil capacity: 5.7 quarts

Spark Plug Gap

• 3.0L 6-Cylinder : 0.052’’

Fuel

• Capacity: 15.7 gal (59.4 L)

Coolant

• Type: Motorcraft® Orange Prediluted Antifreeze/Coolant WSS-M97B44-D2
• Capacity:
  • 2.3L engine (manual transaxle) :5.3 quarts (5.0L)
  • 2.3L engine (automatic transaxle) : 6.3 quarts (6.0L)\
  • 3.0L engine : 10.6 quarts (10.0L)

Lock Cylinders

• Type: Motorcraft Penetrating and Lock Lubricant XL-1

Windshield washer fluid

• Type: Motorcraft Premium Windshield Wash Concentrates (the U.S. only) / ZC-32-A (U.S.) CXC-37-(A, B, D, and F) (Canada) /WSB-M8B16-A2/
• Capacity: Filled as Required

A/C refrigerant

• Type: R-1234yf Refrigerant (U.S.) WSS-M17B21-A
• Capacity :1.65 lb (0.75 kg)

Automatic Transmission Fluid

• Type: Motorcraft MERCON LV ATF7  XT-10-QLV / MERCON LV
• Capacity: 9.0 quarts  (8.5L).

Manual transmission fluid (2WD)

• Type: Motorcraft SAE 75W-90  Gear Oil  XY-75W90-QGL /  XT-4 -QGL WSS-M2C203-A1 and GL-4
• Capacity: 2.4 quarts (2.3L)

Manual transmission fluid (4X4)

• Type: Motorcraft SAE 75W-90  Gear Oil XY-75W90-QGL / WSS-M2C203-A1 and GL-4
• Capacity: 8 2.5 quarts (2.4L)

A/C refrigerant compressor oil

• Type: Motorcraft® R-1234yf Refrigerant PAG Oil (U.S.) /WSS-M2C300-A2
• Capacity:2.7 fl oz (80 ml)

Rear Axle

• Type: Motorcraft SAE 80W-90 Premium Rear Axle 5 Lubricant XY-80W90-QLWSP-M2C197-A
• Capacity:2.4 pints (1.15L)

Brake Fluid and (clutch fluid, if equipped)

• Type: Motorcraft® DOT 4 Low Viscosity (LV) High-Performance Motor Vehicle Brake Fluid PM-20 / WSS-M6C65-A2
• Capacity: Fill to the line on the reservoir

Door Weatherstrips

• Type: Silicone Lubricant / XL-6 / ESR-M13P4-A

Power Steering Fluid

• Type: Motorcraft MERCON ATF XT-2-QDX / MERCON

Power Transfer Unit fluid (4×4)

• Type: Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL /WSL-M2C192-A.
• Capacity : 12 ounces (0.35L)

Body hinges, latches, door striker plates and rollers, seat tracks, fuel filler door hinge and spring, primary and auxiliary hood latches

• Type: Multi-Purpose Grease XG-4 or XL-5 / ESB-M1C93-B

Rear Differential Fluid (U.S.)

• Type:  Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL

Rear differential fluid (Canada)

• Type: Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant  CXY-80W90-1L

Powertrain

Engine

• 1.5 L Ecoboost I3-T (S, S.E. (non-sport only) and SEL)
• 2.0 L Ecoboost I4-T (Titanium only)
• 2.5 L Duratec iVCT Atkinson cycle I4 with two electric motors (S.E. Sport, SEL, and Titanium

Transmission

• Ford 8FM 8-speed automatic (not on models with Hybrid or PHEV)
• Ford PowerSplit electronic CVT (S.E. Sport, Hybrid, PHEV)

Fuel Consumption

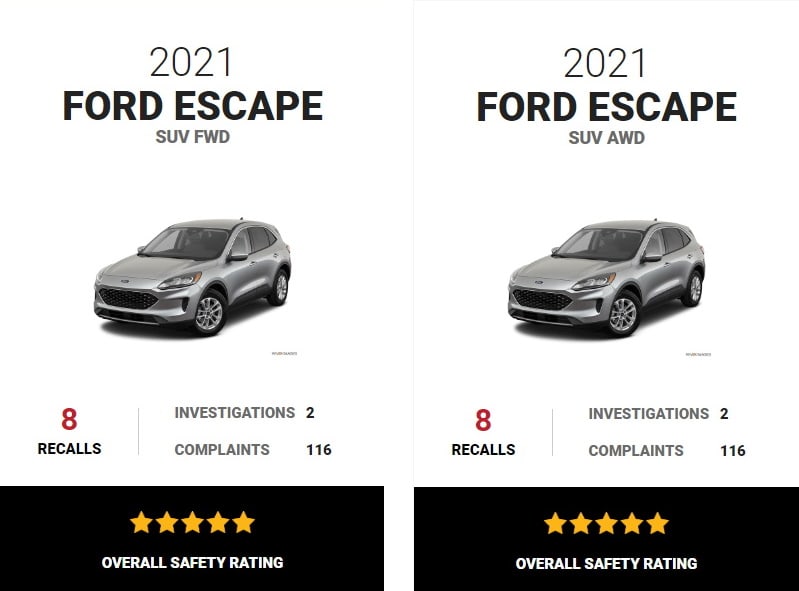

Safety Rating

Front Lights

• Cornering Light Bulb: H1-55W
• Front Fog Light Bulb: H11-55W
• Front Sidemarker Light Bulb: 168
• Front Turn Signal Light Bulb:
  • 7444NA,
  • 7443
• High Beam and Low Beam Headlight Bulb: HID-D3S
• High Beam Headlight Bulb:
  • H9-65W
  •  9005LL
• Low Beam Headlight Bulb:
  •  9005HL
  • , H11LL

Rear Lights

• Back Up Light Bulb: 921
• Brake Light Bulb: LED
• Center High Mount Stop Light Bulb: LED
• License Plate Light Bulb: 168
• Parking Light Bulb:
  • 7444NA
  • 7443
• Rear Sidemarker Light Bulb: 168
• Rear Turn Signal Light Bulb: 7440NA
• Tail Light Bulb: LED

Interior Lights

• Dome Light Bulb: LED
• Luggage Compartment Light Bulb: LED
• Map Light Bulb: LED
