Ford Escape 2013-2019

The third-generation Ford Escape, spanning from 2013 to 2019, marked a significant evolution in design and technology. This version featured a more stylish and aerodynamic exterior, moving further away from the boxy appearance of previous generations. Inside, it offered a modern, well-designed cabin with improved materials and a user-friendly infotainment system. The available features included Ford's SYNC system, advanced safety technologies, and a hands-free power liftgate for added convenience. With versatile seating and ample cargo space, the Escape remained a practical choice for families and commuters.

In terms of performance, the 2013-2019 Ford Escape offered a range of engines, including turbocharged options for enhanced power and efficiency. It also featured advanced drivetrain options like all-wheel drive. With its comfortable ride and responsive handling, this generation of Escape maintained its reputation for being a well-rounded and capable compact SUV. Its style, technology, and versatility made it a competitive choice in its segment.

Ford Escape specification, engine oil capacity, spark plug gap, safety rating, fuel consumption, transmission, and light bulb sizes.

Engine 1.5L 4-Cylinder DOHC

• Recommended oil viscosity: 5W-20
• Oil certification: API
• Oil capacity: 4.3 quarts

Spark Plug Gap

• 2.3L 4-Cylinder: 0.028’’

Engine 3.0L 6-Cylinder DOHC

• Recommended oil viscosity: 5W-30
• Oil certification: API
• Oil capacity: 5.7 quarts

Spark Plug Gap

•  2.0L 4-Cylinder: 0.032’’

Engine 3.0L 6-Cylinder DOHC

• Recommended oil viscosity: 5W-20
• Oil certification: API
• Oil capacity: 5.7 quarts

Spark Plug Gap

• 3.0L 6-Cylinder : 0.052’’

Fuel

• Capacity: 15.7 gal (59.4 L)

Coolant

• Type: Motorcraft® Orange Prediluted Antifreeze/Coolant WSS-M97B44-D2
• Capacity:
  • 2.3L engine (manual transaxle) :5.3 quarts (5.0L)
  • 2.3L engine (automatic transaxle) : 6.3 quarts (6.0L)\
  • 3.0L engine : 10.6 quarts (10.0L)

Lock Cylinders

• Type: Motorcraft Penetrating and Lock Lubricant XL-1

Windshield washer fluid

• Type: Motorcraft Premium Windshield Wash Concentrates (the U.S. only) / ZC-32-A (U.S.) CXC-37-(A, B, D, and F) (Canada) /WSB-M8B16-A2/
• Capacity: Filled as Required

A/C refrigerant

• Type: R-1234yf Refrigerant (U.S.) WSS-M17B21-A
• Capacity :1.65 lb (0.75 kg)

Automatic Transmission Fluid

• Type: Motorcraft MERCON LV ATF7  XT-10-QLV / MERCON LV
• Capacity: 9.0 quarts  (8.5L).

Manual transmission fluid (2wd)

• Type: Motorcraft SAE 75W-90  Gear Oil  XY-75W90-QGL /  XT-4 -QGL WSS-M2C203-A1 and GL-4
• Capacity: 2.4 quarts (2.3L)

Manual transmission fluid (4X4)

• Type: Motorcraft SAE 75W-90  Gear Oil XY-75W90-QGL / WSS-M2C203-A1 and GL-4
• Capacity: 8 2.5 quarts (2.4L

A/C refrigerant compressor oil

• Type: Motorcraft® R-1234yf Refrigerant PAG Oil (U.S.) /WSS-M2C300-A2
• Capacity:2.7 fl oz (80 ml)

Rear Axle

• Type: Motorcraft SAE 80W-90 Premium Rear Axle 5 Lubricant XY-80W90-QLWSP-M2C197-A
• Capacity:2.4 pints (1.15L)

Brake Fluid and (clutch fluid, if equipped)

• Type: Motorcraft® DOT 4 Low Viscosity (LV) High-Performance Motor Vehicle Brake Fluid PM-20 / WSS-M6C65-A2
• Capacity: Fill to the line on the reservoir

Door Weatherstrips

• Type: Silicone Lubricant / XL-6 / ESR-M13P4-A

Power Steering Fluid

• Type: Motorcraft MERCON ATF XT-2-QDX / MERCON

Power Transfer Unit fluid (4×4)

• Type: Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL /WSL-M2C192-A.
• Capacity : 12 ounces (0.35L)

Body hinges, latches, door striker plates and rollers, seat tracks, fuel filler door hinge and spring, primary and auxiliary hood latches

• Type: Multi-Purpose Grease XG-4 or XL-5 / ESB-M1C93-B

Rear Differential Fluid (U.S.)

• Type:  Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL

Rear differential fluid (Canada)

• Type: Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant  CXY-80W90-1L

Powertrain

Engine

• 1.5 L EcoBoost I4-T (petrol)
• 1.6 L EcoBoost I4-T (petrol)
• 2.0 L EcoBoost I4-T (petrol)
• 2.5 L Duratec I4 (petrol)
• 1.5 L Duratorq I4-T (Diesel)
• 2.0 L Duratorq I4-T (Diesel)

Transmission

• 6-speed manual
• 6-speed 6F35 automatic
• 6-speed PowerShift automatic

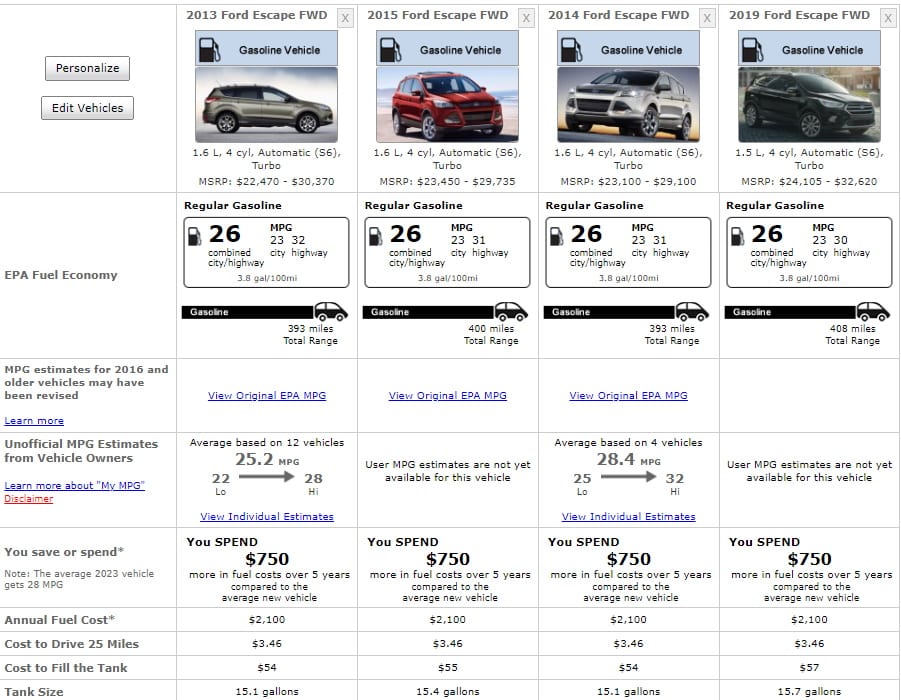

Fuel Consumption

 Safety Ratings

Front Lights

• Cornering Light Bulb: H1-55W
• Front Fog Light Bulb: H11-55W
• Front Sidemarker Light Bulb: 168
• Front Turn Signal Light Bulb:
  • 7444NA,
  • 7443
• High Beam and Low Beam Headlight Bulb: HID-D3S
• High Beam Headlight Bulb:
  • H9-65W
  •  9005LL
• Low Beam Headlight Bulb:
  •  9005HL
  • , H11LL

Rear Lights

• Back Up Light Bulb: 921
• Brake Light Bulb: LED
• Center High Mount Stop Light Bulb: LED
• License Plate Light Bulb: 168
• Parking Light Bulb:
  • 7444NA
  • 7443
• Rear Sidemarker Light Bulb: 168
• Rear Turn Signal Light Bulb: 7440NA
• Tail Light Bulb: LED

Interior Lights

• Dome Light Bulb: LED
• Luggage Compartment Light Bulb: LED
• Map Light Bulb: LED
