Ford Escape 2008-2012

The second-generation Ford Escape, produced from 2008 to 2012, saw significant advancements over its predecessor. It embraced a more modern and aerodynamic design, moving away from the boxy appearance of the first generation. The exterior was sleeker and refined, improving fuel efficiency and a quieter cabin. Ford also expanded the range of available features, with options like a power liftgate, Ford's SYNC infotainment system and advanced safety features becoming available. This model retained its five-passenger seating configuration, offering a spacious, comfortable interior with ample cargo space.

On the performance front, the second-generation Escape offered a variety of engines, including four-cylinder and V6 options, catering to different preferences and needs. All-wheel drive was also available for improved traction. The 2008-2012 Ford Escape was known for its comfortable ride, practicality, and balance between utility and efficiency. It remained a popular choice in the compact SUV segment, appealing to many drivers, from families to commuters, looking for a versatile and capable vehicle.

Ford Escape specification, engine oil capacity, spark plug gap, safety rating, fuel consumption, transmission, and light bulb sizes.

Engine 2.5L 4-Cylinder DOHC

• Recommended oil viscosity: 5W-20
• Oil certification: API
• Drain Plug Torque: 21FT-LBS
• Oil capacity: 5.3 quarts

Spark Plug Gap

• 2.3L 4-Cylinder: 0.052’’

Engine 3.0L 6-Cylinder DOHC

• Recommended oil viscosity: 5W-20
• Oil certification: API
• Drain Plug Torque:19FT-LBS
• Oil capacity: 6.0 quarts

Spark Plug Gap

•  2.0L 4-Cylinder: 0.048’’

Fuel

• Capacity: 17.5 gal (66.2 L)

Coolant

• Type: Motorcraft Premium Gold Engine Coolant with a bittering agent  (yellow-colored) VC-7-B /WSS-M97B51-A1
• Capacity:
  • 2.3L engine (manual transaxle) :5.3 quarts (5.0L)
  • 2.3L engine (automatic transaxle) : 6.3 quarts (6.0L)\
  • 3.0L engine : 10.6 quarts (10.0L)

Lock Cylinders

• Type: Motorcraft Penetrating and Lock Lubricant XL-1

Windshield washer fluid

• Type: Motorcraft Premium Windshield Wash Concentrates (the U.S. only) / ZC-32-A (U.S.) CXC-37-(A, B, D, and F) (Canada) /WSB-M8B16-A2/
• Capacity: Filled as Required

A/C refrigerant

• Type: R-1234yf Refrigerant (U.S.) WSS-M17B21-A
• Capacity :1.65 lb (0.75 kg)

Automatic Transmission Fluid

• Type: Motorcraft MERCON LV ATF7  XT-10-QLV / MERCON LV
• Capacity: 9.0 quarts  (8.5L).

Manual transmission fluid (2wd)

• Type: Motorcraft SAE 75W-90  Gear Oil  XY-75W90-QGL /  XT-4 -QGL WSS-M2C203-A1 and GL-4
• Capacity: 2.4 quarts (2.3L)

Manual transmission fluid (4X4)

• Type: Motorcraft SAE 75W-90  Gear Oil XY-75W90-QGL / WSS-M2C203-A1 and GL-4
• Capacity: 8 2.5 quarts (2.4L)

A/C refrigerant compressor oil

• Type: Motorcraft® R-1234yf Refrigerant PAG Oil (U.S.) /WSS-M2C300-A2
• Capacity:4.1 fl oz (120 ml)

Rear Axle

• Type: Motorcraft SAE 80W-90 Premium Rear Axle 5 Lubricant XY-80W90-QLWSP-M2C197-A
• Capacity:2.4 pints (1.15L)

Brake Fluid and (clutch fluid, if equipped)

• Type: Motorcraft High-Performance DOT 3 Motor Vehicle Brake Fluid/PM-1-C / WSS-M6C62-A or WSS-M6C65-A1
• Capacity: Fill to the line on the reservoir

Door Weatherstrips

• Type: Silicone Lubricant / XL-6 / ESR-M13P4-A

Power Steering Fluid

• Type: Motorcraft MERCON ATF XT-2-QDX / MERCON

Power Transfer Unit fluid (4×4)

• Type: Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL /WSL-M2C192-A.
• Capacity: 12 ounces (0.35L)

Body hinges, latches, door striker plates and rollers, seat tracks, fuel filler door hinge, and spring, primary and auxiliary hood latches

• Type: Multi-Purpose Grease XG-4 or XL-5 / ESB-M1C93-B

Powertrain

Engine

• 2.3 L Duratec 23 I4
• 2.5 L Duratec 25 I4
• 3.0 L Duratec 30 V6

Transmission

• 5-speed manual
• 4-speed CD4E automatic
• 6-speed 6F35 automatic
• Hybrid: Planetary gear

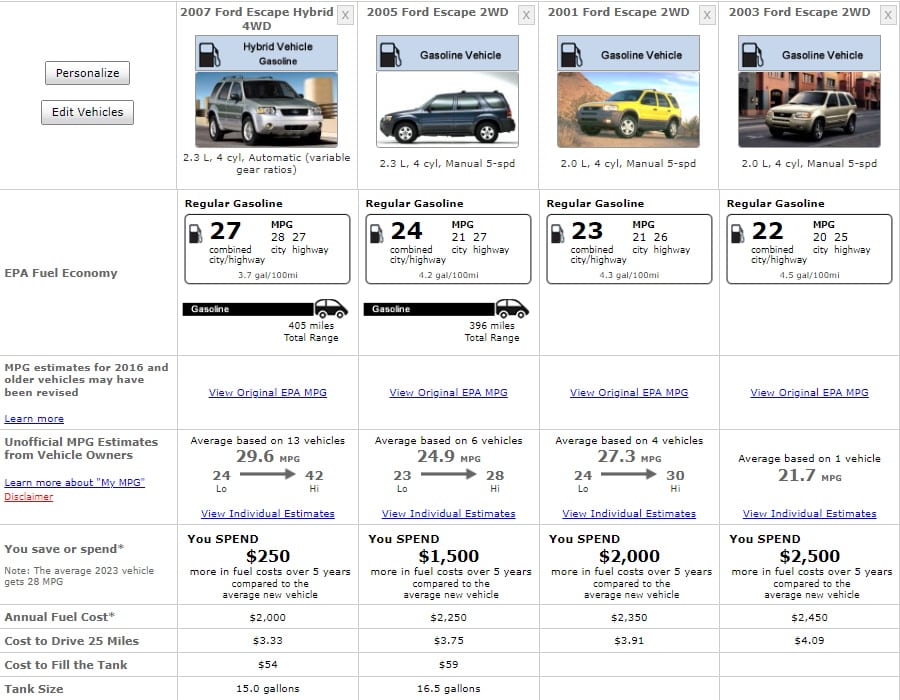

Fuel Consumption

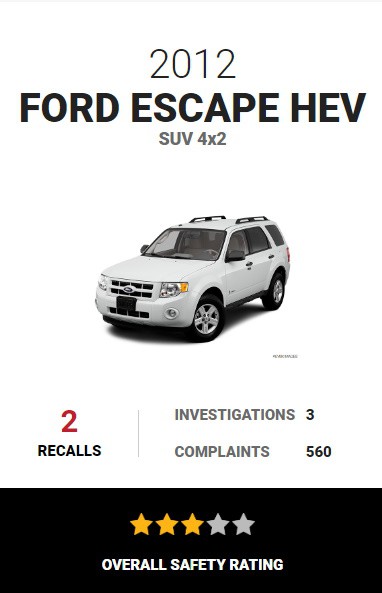

Safety Ratings

Front Lights

• Front Fog Light Bulb: 5202
• Front Sidemarker Light Bulb:194
• Front Turn Signal Light Bulb:
  •  3457AK
  •  3157-SCK
• High Beam and Low Beam Headlight Bulb: H13

Rear Lights

• Back Up Light Bulb: 921
• Brake Light Bulb:
  • 3157-SCK
  • 4157K
• Center High Mount Stop Light Bulb: 2825L
• License Plate Light Bulb: 168
• Parking Light Bulb:
  •  3457AK
  •  3157-SCK
• Rear Sidemarker Light Bulb:
  •  4157K
  •  3157-SCK
• Rear Turn Signal Light Bulb:
  •  4157K
  •  3157-SCK
• Tail Light Bulb:
  •  4157K,
  • 3157-SCK

Interior Lights

• Courtesy Light Bulb: 168
• Dome Light Bulb: 578
• Glove Box Light Bulb: 161
• Luggage Compartment Light Bulb: 5008
• Map Light Bulb: 2825
• Vanity Mirror Light Bulb: 6614F
