Honda Pilot 2009-2015

The second-generation Honda Pilot, produced from 2009 to 2015, brought significant upgrades and refinements to this midsize SUV. The exterior design was more streamlined, featuring a sleeker front end and improved aerodynamics. Inside, the Pilot boasted a spacious and well-crafted cabin, with comfortable seating for up to eight passengers. Its versatile interior allowed for various seating and cargo configurations, catering to the needs of families and travelers.

Underneath, the second-generation Pilot maintained a unibody construction for a smooth and comfortable ride, while advanced features like all-wheel drive and stability control improved handling and traction. Safety remained a top priority, including safety technologies like stability control, antilock brakes, and side-curtain airbags. The Pilot's overall reliability, spaciousness, and improved fuel efficiency compared to its predecessor made it a popular choice among midsize SUVs during its production years.

Honda Pilot specification, engine oil capacity, spark plug gap, safety rating, fuel consumption, transmission, and light bulb sizes.

Engine 3.5L 6-Cylinder SOHC

• Recommended oil viscosity: 5W-20
• Oil certification: API
• Drain Plug Torque: 29ft-lbs
• Oil capacity: 4.5 qt

Spark Plug Gap

• 3.5L 6-Cylinder: 0.044”

Fuel

• Capacity: 21.0 US gal (79.5 L)

Washer Fluid

• Capacity:
  • U.S.: 4.2 US qt (4.0 L)
  • Canada: 6.9 US qt (6.5 L)

Brake Fluid

• Type: Honda Heavy Duty Brake Fluid DOT 3 preferred, or a DOT 3 or DOT 4 brake fluid as a temporary replacement

Automatic Transmission Fluid

• Type: Honda ATF DW-1 (automatic transmission fluid)
• Capacity:
  • 4WD: 3.6 US qt (3.4 L)
  • 2WD: 3.2 US qt (3.1 L)

Rear differential fluid (4WD)

• Type: Honda VTM-4 Differential Fluid
• Capacity: 2.79 US qt (2.64 L)

Transfer Assembly Fluid

• Type: HYPOID GEAR OIL API GL4 or GL5 SAE75W-85 (SAE90 CAN BE USED)
• Capacity: 0.45 US qt (0.43 L)

Coolant

• Type: Honda Long-Life Antifreeze/Coolant Type2
• Capacity: 1.98 US gal (7.5 L) (change including the remaining 0.198 US gal (0.75 ℓ) in the reserve tank)

Refrigerant

• Type:  HFC-134a (R-134a)
• Capacity: 21.2 – 22.9 oz (600 – 650 g)

Lubricant

• Type:  ND-OIL8
• Capacity: 21.2 – 22.9 oz (600 – 650 g)

Powertrain

Engine

•     3.5 L J35Z4 V6

Transmission

• 5-speed automatic

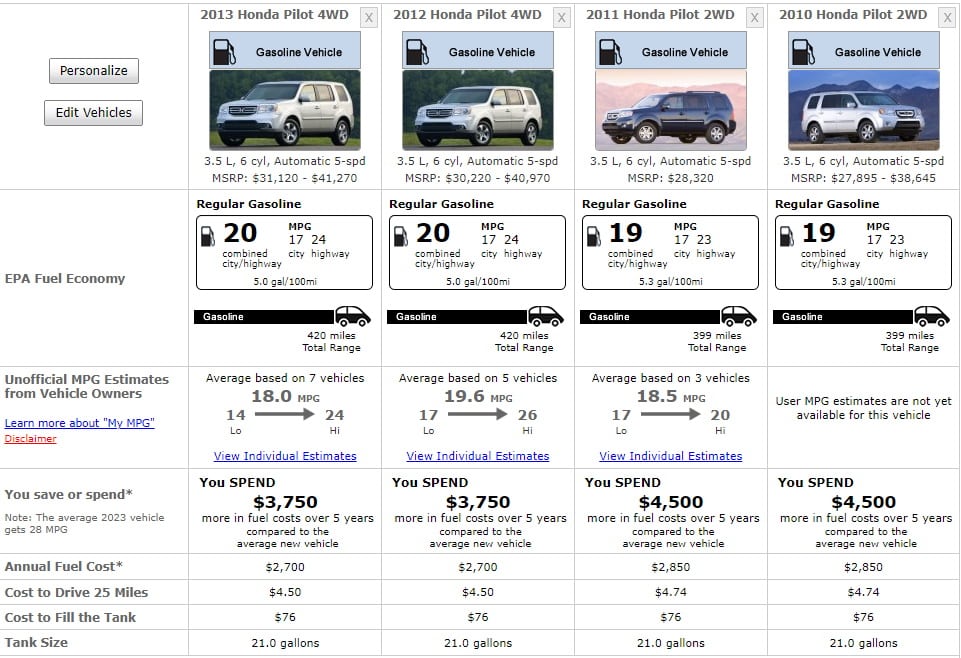

Fuel Consumption

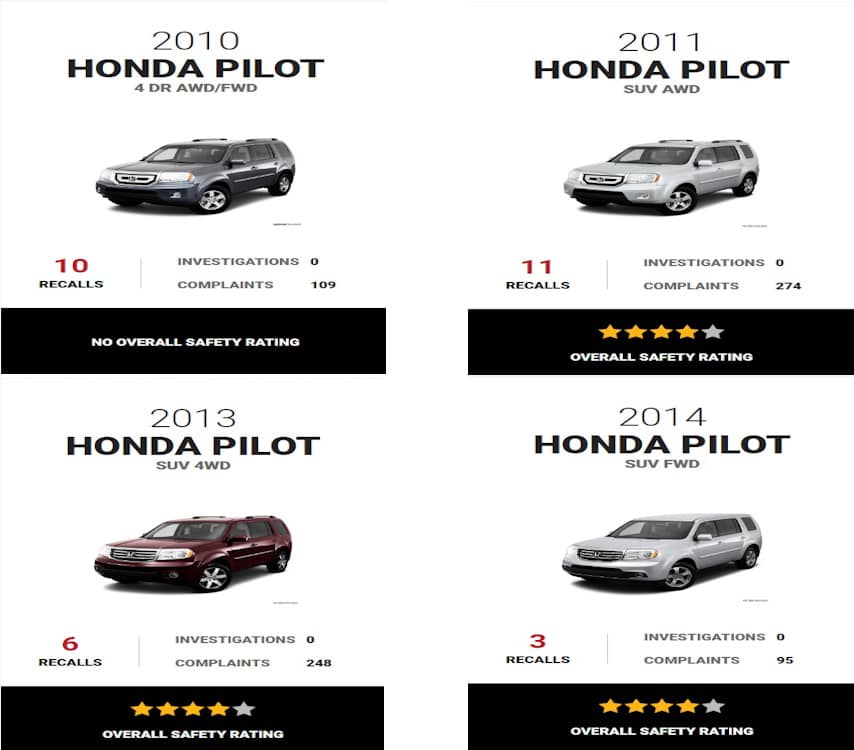

Safety Rating

Front Lights

• Daytime Running Light Bulb: 9005
• Front Fog Light Bulb: H11-55W
• Front Sidemarker Light Bulb: 168
• Front Turn Signal Light Bulb:
  • 3157-SCK
  • 3457NAK
• High Beam Headlight Bulb: 9005
• Low Beam Headlight Bulb: H11-55W

Rear Lights

• Back Up Light Bulb: 921
• Brake Light Bulb:
  • 7443-SCK
  • 7443
• Center High Mount Stop Light Bulb: 168
• License Plate Light Bulb: 2825
• Parking Light Bulb:
  • 3157-SCK
  •  3457NAK
• Rear Sidemarker Light Bulb: 2825
• Rear Turn Signal Light Bulb:
  • 7443-SCK
  •  7443
• Tail Light Bulb:
  • 7443-SCK
  •  7443

Interior Lights

• Auto Trans Indicator Light Bulb: 74
• Dome Light Bulb: 204
• Interior Door Light Bulb: 194
• Luggage Compartment Light Bulb: DE3175
• Map Light Bulb: DE3175
• Vanity Mirror Light Bulb: 6615F
