Honda Pilot 2016-2022

The third-generation Honda Pilot, produced from 2016 to 2022, continued to build on the model's reputation for family-friendliness and versatility. With a more modern and sophisticated design, the Pilot offered a spacious and comfortable interior, accommodating up to eight passengers across three rows of seating. The cabin featured high-quality materials and a user-friendly infotainment system, making it a comfortable and tech-savvy choice for families and commuters.

The 2016-2022 Pilot incorporated advanced safety features like adaptive cruise control, lane departure warning, and automatic emergency braking, enhancing its safety credentials. The vehicle also retained its unibody construction and available all-wheel-drive system, ensuring a smooth and stable ride on various road conditions. With improved fuel efficiency and a more refined driving experience compared to its predecessors, the third-generation Honda Pilot remained a popular choice in the competitive midsize SUV segment.

Honda Pilot specification, engine oil capacity, spark plug gap, safety rating, fuel consumption, transmission, and light bulb sizes.

Engine 3.5L 6-Cylinder SOHC

• Recommended oil viscosity: 5W-20
• Oil certification: API
• Drain Plug Torque: 29ft-lbs
• Oil capacity: 4.5 qt

Spark Plug Gap

• 3.5L 6-Cylinder: 0.044”

Fuel

• Capacity: 14 U.S. gal (53 L)

Washer Fluid

• Capacity:
  • U.S.: 2.6 US qt (2.5 L)
  • Canada: 4.8 US qt (4.5 L)

Brake Fluid

• Type: Honda Heavy Duty Brake Fluid DOT 3 preferred, or a DOT 3 or DOT 4 brake fluid as a temporary replacement

Continuously Variable Transmission Fluid

• Type: Honda HCF-2
• Capacity:
  • 4WD: 3.9 US qt (3.7 L)
  • 2WD: 4.5 US qt (4.3 L)

Rear differential fluid (4WD)

• Type: Honda DPSF-II
• Capacity: 1.32 US qt (1.247 L)

Coolant

• Type: Honda Long-Life Antifreeze/Coolant Type2
• Capacity:
  • 2.4 L engine models: 1.65 US gal (6.24 L)
  • 1.5 L engine models: 1.64 US gal (6.19 L)

Refrigerant

• Type:  HFO-1234yf (R-1234yf)
• Capacity:
  • 2.4 L engine models: 14.6 – 16.4 oz (415 – 465 g)
  • 1.5 L engine models: 15.3 – 17.1 oz (435 – 485 g)

Lubricant

• Type:
  • 2.4 L engine models: RB100EV-01
  • 1.5 L engine models: RL85HM (POE)
• Capacity:
  • 2.4 L engine models: 5.80 – 6.53 cu-in (95 – 107 cm3)
  • 1.5 L engine models: 4.70 – 6.28 cu-in

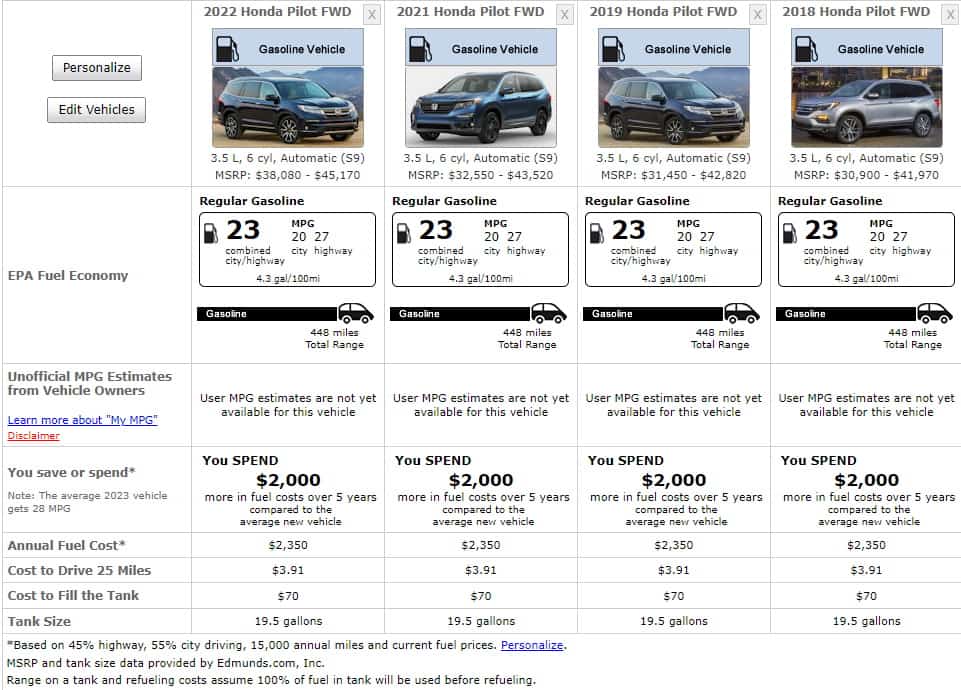

Fuel Consumption

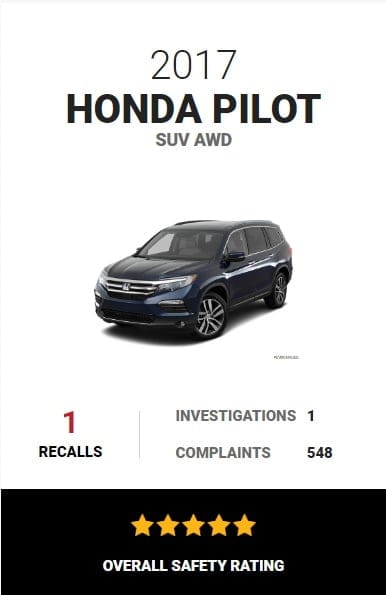

Safety Rating

Front Lights

• Daytime Running Light Bulb: LEDR
• Front Fog Light Bulb: LED
• Front Sidemarker Light Bulb: LED
• Front Turn Signal Light Bulb: 7440NA
• High Beam Headlight Bulb:
  • 9005
  • LED
• Low Beam Headlight Bulb: LED
• Stepwell Light Bulb: LED

Rear Lights

• Back Up Light Bulb: LED
• Brake Light Bulb: LED
• Center High Mount Stop Light Bulb: LED
• License Plate Light Bulb: LED
• Parking Light Bulb: LED
• Rear Sidemarker Light Bulb: LED
• Rear Turn Signal Light Bulb: 7440NA
• Tail Light Bulb: LED

Interior Lights

• Floor Console Compartment Light Bulb: 74
• Glove Box Light Bulb: 74
• Interior Door Light Bulb: 194
• Luggage Compartment Light Bulb: 175
• Map Light Bulb:
  • 2825
  • LED
