Jeep Compass 2007-2017

The Jeep Compass, manufactured from 2007 to 2017, marked Jeep's foray into the compact crossover SUV segment. It aimed to combine the brand's renowned off-road capability with the convenience of a smaller, more city-friendly vehicle. The design of the Compass was inspired by the Jeep Grand Cherokee, giving it a distinctly Jeep appearance. While it retained Jeep's signature seven-slot grille and rugged styling, it was offered with front-wheel drive as well as various four-wheel-drive configurations, including the Trail Rated Trailhawk model, which was equipped for serious off-road adventures.

Inside, the Compass featured a practical and comfortable cabin with leather upholstery, an infotainment system, and generous cargo space with the rear seats folded down. The model underwent updates during its production years, gradually improving its performance, comfort, and technology offerings. The Jeep Compass aimed to cater to a wide range of consumers, from urban commuters to outdoor enthusiasts, making it a versatile and approachable option within the Jeep lineup during its decade-long production run.

Jeep Compass specification, engine oil capacity, spark plug gap, safety rating, fuel consumption, transmission, and light bulb sizes.

Engine 2.0L 4-Cylinder DOHC

• Recommended oil viscosity: 5W-20
• Oil certification: API
• Drain Plug Torque: 25 ft-lbs
• Oil capacity: 4.5 quarts

Spark Plug Gap

• 1.5L 4-Cylinder: 0.044”

Engine 2.4L 4-Cylinder DOHC

• Recommended oil viscosity: 5W-20
• Oil certification: API
• Oil capacity: 4.5 quarts

Spark Plug Gap

• 1.5L 4-Cylinder: 0.044”

Engine 2.4L 4-Cylinder SOHC

• Recommended oil viscosity: 5W-20
• Oil capacity: 4.5 quarts

Spark Plug Gap

• 1.5L 4-Cylinder: 0.047”

Fuel

• Capacity: 13.6 Gallons (51 Liters)

Automatic Transmission (CVT) — If Equipped

• Type: Use only Mopar CVTF+4 Continuously Variable Transmission Fluid or equivalent. Failure to use the correct fluid may affect the function or performance of your transmission.

Automatic Transmission (Six-Speed) — If Equipped

• Type: Use only Mopar SP-IV M Automatic Transmission Fluid or equivalent. Failure to use the correct fluid may affect the function or performance of your transmission.

Manual Transmission — If Equipped

• Type: We recommend you use Mopar ATF+4 Automatic Transmission Fluid

Rear Drive Assembly (RDA)

• Type: We recommend you use Mopar Gear & Axle Lubricant SAE 80W-90 API GL 5.

Power Transfer Unit (PTU)

• Type: We recommend you use Mopar Gear & Axle Lubricant SAE 80W-90 API GL 5.

Brake Master Cylinder

• Type: We recommend you use Mopar DOT 3; SAE J1703 should be used. If DOT 3, SAE J1703 brake fluid is not available, then DOT 4 is acceptable.

Power Steering Reservoir

• Type: We recommend you use Mopar Power Steering Fluid +4 and Mopar ATF+4 Automatic Transmission Fluid.

Coolant

• Type:
  • 2.0 L Engine: We recommend you use Mopar Antifreeze/Coolant 10 Year/150,000 Mile Formula OAT (Organic Additive Technology) or equivalent meeting the requirements of FCA Material Standard MS.90032
• Capacity:
  • 2.0 L Engine: 7.2 Quarts (6.8 Liters)

Powertrain

Gasoline:

• 2.0 L World I4
• 2.4 L World I4

Diesel:

• 2.0 L EA188 I4 turbo
• 2.2 L OM651 I4 turbo

Transmission

• 5-speed Magna T355 manual
• 6-speed Aisin BG6 manual
• 6-speed Hyundai 6F24 automatic
• CVT Jatco JF011E automatic

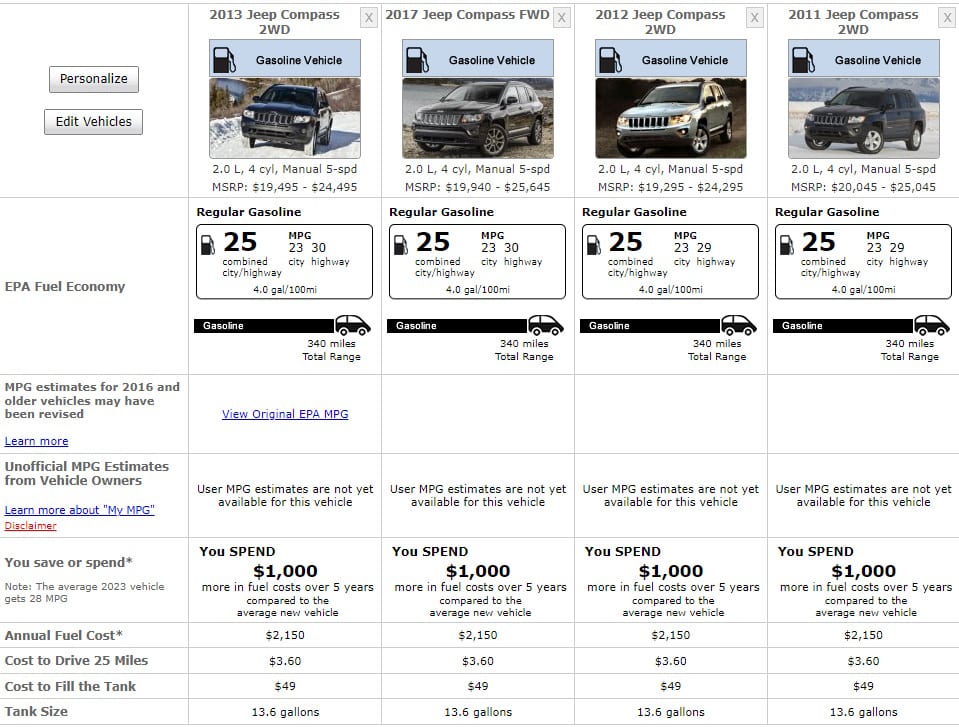

Fuel Consumption

Front Lights

• Daytime Running Light Bulb:
  • 3157K
  •  2504
• Front Fog Light Bulb: H11LL
• Front Sidemarker Light Bulb: 194
• Front Turn Signal Light Bulb: 7444NA
• High Beam and Low Beam Headlight Bulb: HID-D3S
• High Beam Headlight Bulb:
  •  9005
  • 9005LL
• Low Beam Headlight Bulb:
  • H11-55W
  •  H11LL

Rear Lights

• Back Up Light Bulb
  •  7440
  • 7440LL
• Brake Light Bulb:
  •  LED
  • 7443LL
• Center High Mount Stop Light Bulb: LED
• License Plate Light Bulb:
  • 2825
  • LED
• Parking Light Bulb:
  • 7444NA
  • LED
• Rear Sidemarker Light Bulb: LED
• Rear Turn Signal Light Bulb:
  •  7440NA
  •  7443LL
  • 7440LL
• Tail Light Bulb:
  •  LED
  • 7443LL

Interior Lights

• Dome Light Bulb:
  • 578
  • 6418
• Glove Box Light Bulb: 168
• Luggage Compartment Light Bulb:
  • 578
  •  6418
• Map Light Bulb:
  • 578
  •  168
• Vanity Mirror Light Bulb: 6418
