Ford Focus Water Pump Replacement

⌂ » Vehicles » Ford » Focus

Posted onAug 22, 2019Oct 13, 2022 Updated onOct 13, 2022
ShareCopyEmailFacebookPrint

Is your Ford Focus engine overheating, water pump noise, and coolant leak from the water pump? Learn how to fix the problem by replacing the water pump of your Ford Focus.

Table of Contents
  1. Symptoms
  2. What you will need
  3. Procedure
  4. Torque Specifications

Symptoms

  • Coolant leak from the water pump
  • Engine Overheats
  • Water Pump Noise

What you will need

SaleBestseller No. 1
Motorcraft PW423 New Water Pump Medium
Motorcraft PW423 New Water Pump Medium
Seal designs use sintered metal or ceramic seats; Strong cast-iron or aluminum die-cast housings
$51.13 Amazon Prime
  • Ford Water Pump
  • 50/50 Mix Engine Coolant
  • Floor Jack
  • Flathead screwdriver
  • Container to collect old coolant
  • Torque wrench
  • Metric Sockets
    • 9mm, 15mm, 18mm

Procedure

  1. Allow the engine to cool down.
  2. Jack up the vehicle and secure it with jack stands.drain coolant
  3. Drain engine coolant by losing the drain plug at the bottom of the radiator, driver’s side. drain coolantIf needed, raise the vehicle on the driver’s side and secure it with jack stands. Allow the coolant to drain fully. If necessary, jack up the vehicle on the driver’s side and secure the vehicle with jack stands.
  4. Remove the coolant tank.

Remove the return hose to the coolant tank. Press on the connector and pull straight out. Pry out the coolant tank from its brackets and lift and place it to the side.


Support the engine with a floor jack.ford focus water pump removal support engine Place a piece of wood between the jack and the engine oil pan to prevent engine damage.

Remove the engine mount.

Remove the 15mm bolts that secure the engine mount to the frame. Remove the 18mm nuts that secure the engine mount to the engine.

Use a 14mm open-end wrench to release the tensioner.

Slide the drive belt off the tensioner and move it towards the back. Sketch the serpentine belt routing before you remove it so that you know how to install the belt.

Use a 10 mm socket to loosen the three bolts for the water pump pulley. You will have to use an open-end wrench to hold the pulley and prevent it from spinning.

Remove the pulley from the water pump. Once the engine mount is removed, you can raise the engine higher if needed. You may need to raise the engine slightly to remove the water pump. Don’t raise the engine too high, or you will cause damage to the engine, transmission, or electrical connectors.


Remove the water pump bolts to the engine. water pump bolts ford focus


Remove the old water pump. We had to pry out the water pump as it was rusted and was refusing to come off.remove water pump


Clean the water pump housing.ford focus water pump leak Use a clean cloth to remove the water pump housing dirt.clean water pump housing

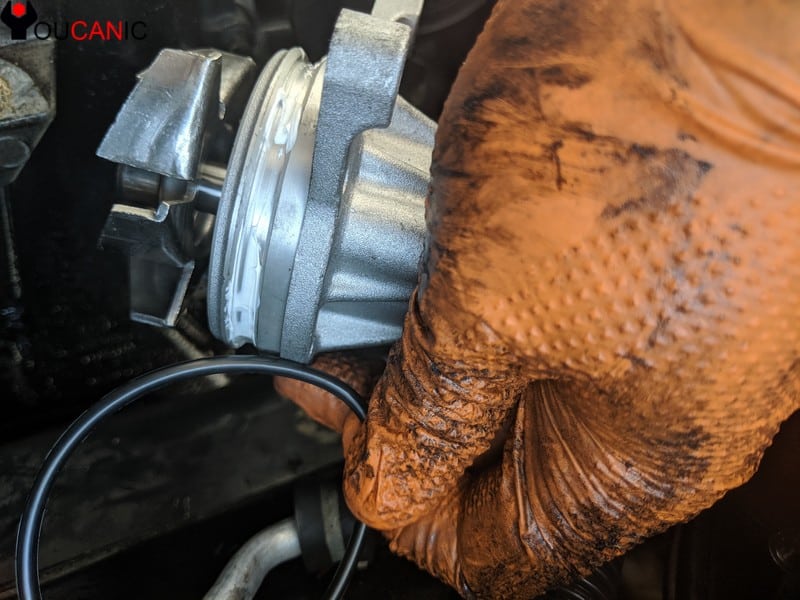

Install the O ring on the new water pump.water pump o ring ford focus Applying a small amount of grease on the o ring helps with the installation.

Install the new water pump.

Align the water pump holes with the holes in the engine block. Thread the water pump bolts by hand. Torque the water pump bolts to specification.

Install the pulley on the water pump.

Reinstall the serpentine belt.

Make sure the belt is routed over the crankshaft and A/C compressor correctly, or you will not be able to install the drive belt.

Install the engine mount. ford passenger engine mountTorque the bolts to 60 lb-ft.

You may need to lower the engine slightly for the engine mount to sit properly on the car frame.

Install the overflow reservoir. It simply presses in the brackets. Also, connect the return line by pressing it in.

Tighten the radiator coolant drain bolt


Add engine coolant 50/50 mix to bring the coolant level between the min and max marks.

Torque Specifications

  • Water Pump Bolts
    • 15 Nm
  • Water Pump Pulley Bolts
    • 25 Nm

We hope you find the Ford Focus Water Pump Replacement guide helpful. Check these troubleshooting and repair guides for more help on your Ford Focus.
