S-Class Mercedes-Benz Blower Motor Replacement W221

replacing mercedes blower motor

Need to replace the blower motor of your Mercedes-Benz? Learn how to remove and install the new blower motor of your Mercedes-Benz by following the procedures below. This guide provides step-by-step instructions on replacing the blower motor on a Mercedes-Benz S-Class W221.

Symptoms

  • The defective aircon blower motor is weaker than usual,
  • No airflow from the vents,
  • Fan not working at all speeds,
  • No airflow from the vents.

What you will need

Bestseller No. 1
BOXI 2218202714 HVAC Blower Motor Assembly Replacement for Mercedes-Benz CL550 CL600 CL63 AMG...
BOXI 2218202714 HVAC Blower Motor Assembly Replacement for Mercedes-Benz CL550 CL600 CL63 AMG…
Replaces number: 2218200514, 2218202714, A2218200514, A2218202714,351041681; 1 year warranty
$75.99

Parts

  • Mercedes Benz Blower Motor

Tools

  • Torx Screwdriver with T handle
  • Thin flat-head screwdriver

Procedures

  1. Locate the panel under the glove compartment on the front passenger side of the car.blower-assembly-location
  2. Loosen and remove three (3) T25 screws using a Torx screwdriver.loosen-screws1
  3. Pull the panel down and remove the electrical connection for the night light.Pull-panel-down remove-electrical-connector
  4. Bend down and pull out the panel.bend-pull-panel
  5. The blower motor housing is now visible; detach the blower’s electrical connection by pushing the connector’s tab using your fingers or using a thin flat-head screwdriver. You may use your finger or a small screwdriver to push the tab.blower-motor-housing push-connector-tab-using screwdriver remove-connector-by-fingers
  6. Detach the blower from the frame by removing five (5) screws using a Torx screwdriver with T-handle. Please look at the blower motor housing’s different perspectives to find the location of the screws.blower-motor-backview blower-motor-belly-view
  7. Pull the blower housing down.pull-housing-down
  8. Take note of the orientation of the two big blind holes on the blower housing; these are oriented towards the driver side.blower-orientation

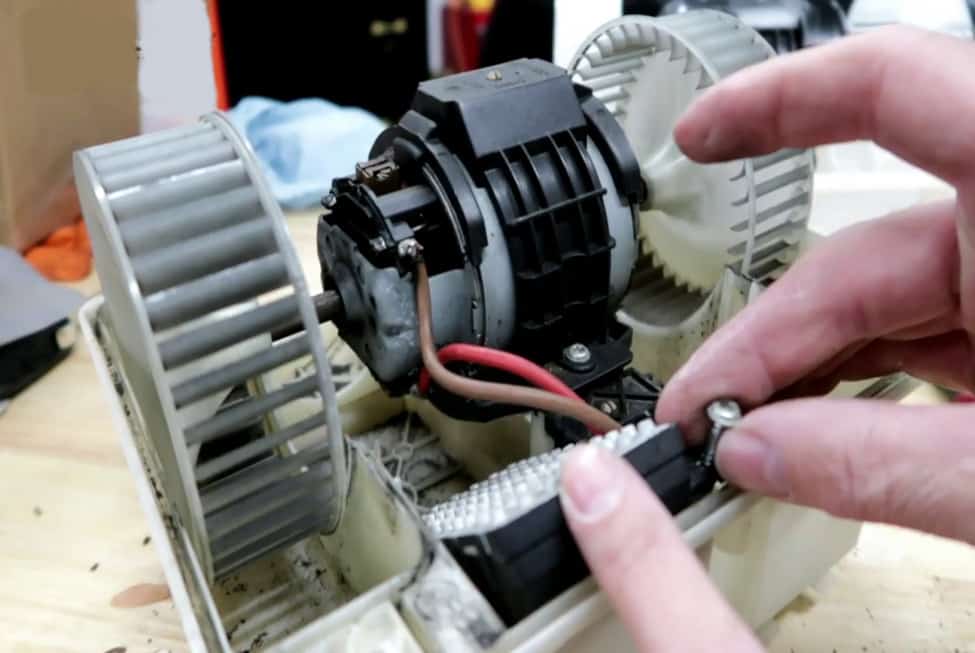

  9. Remove the screws that attach the blower resistor module to the blower motor housing using a T20 screwdriver.remove-screw-from-module detach-module-from-housing
  10. Push wires out of the way, move the blower resistor module up and down while pulling it towards you in a diagonal direction until the lock release.remove-module
  11. Disconnect blower wires from the blower resistor module by pulling the connector while pressing the tab (lock).remove-module-connector
  12. Prepare the new blower motor.
  13. Connect the blower resistor module to the new blower motor assembly. Be sure to push the module until it sits on the lock at the bottom side of the blower housing.reinstall-module blower-locked
  14. Reinstall T20 blower resistor module screws using a Torx screwdriver.reinstall-with-screw-driver
  15. Verify the blower resistor module installation.verify-module
  16. Install the new blower motor assembly (housing) to the frame by pushing it up while reinstalling the screws.reinstall-blower-assembly
  17. Reconnect the blower’s electrical connector by pushing it until it clicks.reconnect-assembly-connector
  18. Reposition the panel.
  19. Reconnect the electrical connection for the dome light.reconnect-dome-light
  20. Fit the panel in place while locking the tabs and re-install t25 screws for the panel.fit-panel-in-place

Frequently Asked Questions

Can AC run without a blower motor?

A blower motor is an essential part of the car’s air conditioning system; without the blower motor, the cold air will be limited to the evaporator and will not circulate thru the car’s cabin.

What can cause a blower motor to stop working?

The blower motor may not work due to a faulty A/C module, blown fuse, dirty blower fan, and a worn-out motor.

How much does it cost to replace a Mercedes Aircon blower motor?

The average cost for a Mercedes-Benz blower motor replacement is between $680 and $703. Labor costs are estimated between $90 and $114, while parts are priced at $589.

How long will it take to replace my HVAC blower motor?

This is one of the easier jobs you can tackle in your car. If you’re doing this for the first time, you can expect to spend between 30 to 45 minutes completing it.

Applications

S-Class W221

  • S 280 / S 300    2007–2013
  • S 350    2005–2009
  • S 350 (2010+ facelift)    2010–2013
  • S 350 4MATIC    2007–2013
  • S 450, S 450 4MATIC    2006–2013
  • S 500/550    2005–2010
  • S 500/550    2011–2013
  • S 500/550 4MATIC    2006–2011
  • S 500/550 4MATIC    2011–2013
  • S 600, S 600 Guard    2006–2013
  • S 600 Guard Pullman    2008–2013
  • S 63 AMG    2006–2011
  • S 63 AMG    2012–2013
  • S 65 AMG    2006–2013
  • S 250 / S 300 CDI    2009–2013
  • S 300 BlueTec HYBRID    2009–2010
  • S 320 CDI, S 320 CDI 4MATIC    2006–2008
  • S 320 CDI BlueEFFICIENCY    2008–2009
  • S 350 CDI BlueEFFICIENCY, S 350 CDI 4MATIC    2009–2013
  • S 350 4MATIC BlueTec (US)    2012–2013
  • S 420 CDI    2006–2009
  • S 450 CDI    2009–2011

This guide also applies to the CL-Class.

Additional Photos

W221 blower motor not working
blower motor
blower motor

We hope you find the S-Class Mercedes-Benz Blower Motor Replacement W221 guide helpful. Check these troubleshooting and repair guides for more help on your Mercedes-Benz.
