Lexus Check Engine Oil Level

⌂ » Vehicles » Lexus

Posted onFeb 23, 2020Oct 16, 2022 Updated onOct 16, 2022

Need to check the engine oil level of your Lexus? Learn how to do it by following the procedures below.  The engine must be at operating temperature to check the engine oil level on a Lexus. Turn off the engine and wait at least five minutes for the oil to return to the oil pan. Check the oil level using the dipstick with a yellow handle. To get an accurate reading, ensure the vehicle is on level ground.

What you will need

Bestseller No. 1
Pennzoil Synthetic Blend 5W-30 Motor Oil (5-Quart, Single-Pack)
Pennzoil Synthetic Blend 5W-30 Motor Oil (5-Quart, Single-Pack)
Synthetic blend 5W-30 engine oil formula that keeps engines clean and responsive; Helps prevent sludge and other damaging deposits (Based on Seq VH Sludge Test)
$22.48 Amazon Prime
  • A dry clean cloth
  • Synthetic Engine Oil
    • Recommended grade listed in the owner’s manual or oil cap.
    • 5W-30 is recommended, needed only if the oil level is low.

Procedure

  1. Park the vehicle on level ground. Set the parking brakes and turn off the engine. Parked lexus
  2. Wait for at least five minutes to allow the engine to cool down. This allows the oil to return to the oil pan.
  3. Open the hood by pulling the release lever under the dashboard’s left side, the driver’s side.Opening Hood
  4. Depress the safety lever under the hood to open the hood.Depress hood latch

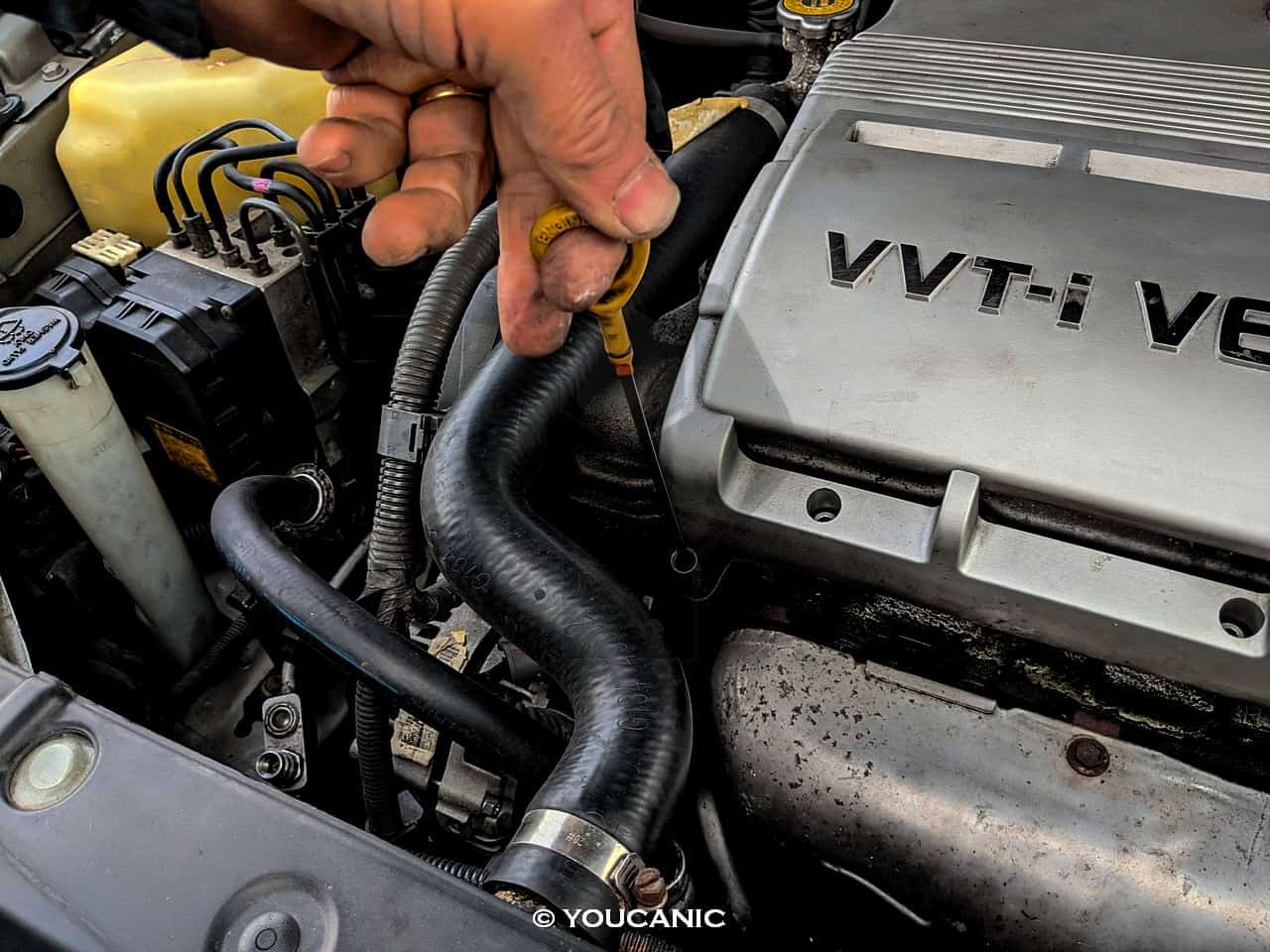

  5. Locate the engine oil dipstick on the engine block. Oil dipstick typically has a yellow handle.2011-Lexus-LX570 (47) oil dipstick2007-Lexus-IS-250 (131) oil dipstick 2004-Lexus-ES-330 (96)_ oil dipstick location1991-Lexus-LS400 (52) oil dipstickLocating Dipstick
  6. Remove the dipstick and wipe it with a dry clean cloth. Remove Dipstick
  7. Note the MIN and MAX marks on the dipstick. Oil level max and minIn this next picture, the MAX and MIN levels are marked by two dots.Checking min max of the dipstick
  8. Fully reinsert the dipstick and remove it once again.
  9. Check the oil level on the dipstick.OIL LEVEL
    • The level is correct if the level is between the MIN and MAX marks.
    • If the oil level is below the minimum mark, your oil level is too low, and you need to add oil. Continue to the next step.
  10. Remove the oil cap on top of the engine by turning it counterclockwise. If the cap has not been removed in a long time, it may be difficult to remove and require force. Oil Cap Removal
  11. Add one quart of recommended engine oil that meets the requirements listed in your owner’s manual.
  12. Wait for five minutes and recheck the engine oil level again using the dipstick.
  13. Continue your journey only if the oil level is between the MIN and MAX marks. Do not continue to drive if the oil level is low or the oil light on the dashboard stays on.

Do not overfill the engine with oil. The oil level should not be over the MAX mark. If the oil level is above the maximum mark, you need to remove oil to bring the level between the MIN and MAX marks. Ideally, the oil level should fall within your dipstick’s minimum and maximum markings but closer to the maximum marking.

We hope you find the Lexus Check Engine Oil Level guide helpful. Check these troubleshooting and repair guides for more help on your Lexus.
