Learn how to change the engine oil on Hyundai vehicles with a four-cylinder engine, such as Santa Fe, Sonata, Accent, and Elantra equipped with the 2.4-liter engine.

The same engine is also installed on Hyundai Sonata Hybrid.

What you will need

Follow these steps to change the engine oil on your Hyundai.

Bestseller No. 1
HYUNDAI Genuine 26300-35504 Oil Filter
HYUNDAI Genuine 26300-35504 Oil Filter
Genuine OEM; Better engine performance; Fits most Hyundai and Kia vehicles; fit type: Universal Fit
$9.98 Amazon Prime
Bestseller No. 1
HYUNDAI Genuine 26300-35504 Oil Filter
HYUNDAI Genuine 26300-35504 Oil Filter
Genuine OEM; Better engine performance; Fits most Hyundai and Kia vehicles; fit type: Universal Fit
$9.98 Amazon Prime
  • Oil Filter Pliers
  • Hyundai Oil Filter
  • Synthetic Engine Oil
  • Metric socket set
  • Drain pan
  • Car ramps
  • Jack stands
  • Wheel chocks

Procedure

  1. Drive the car up on ramps. Secure it with jack stands—place wheel chocks behind the rear tires.

  • Open the hood by pulling the hood release under the hood. Watch the video if you need help with this step.
  • Secure your Hyundai. Engage the parking brake and make sure the gear selector is moved into the Park position.
  • Access the Hyundai filter and oil drain plug. Remove the undercarriage from underneath the Hyundai engine. The plastic on the bottom is held in place with plastic screws. Remove all 10mm bolts for the splash shield.
  • Remove plastic screws. There are also a few plastic screws that need to be removed. Once you get them unscrewed a few turns, pull them out. Once all the screws are removed, the cover can be removed.
  • Access oil filter. Now you can see the engine oil filter and drain plug. In the following picture, the oil filter is yellow.

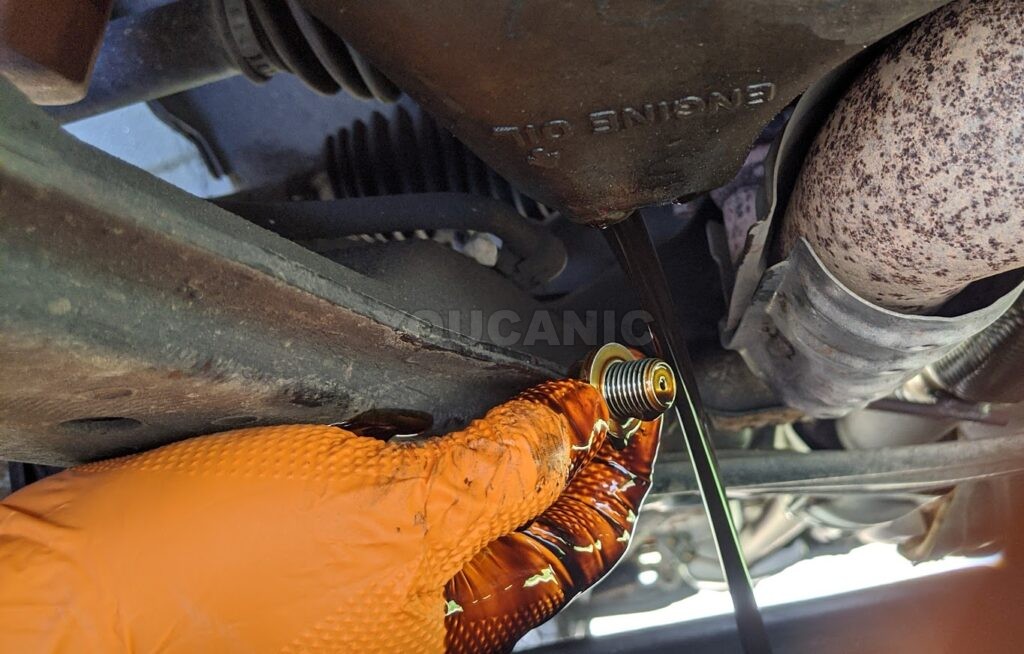

  • Drain engine oil. Place a drain oil pan under the engine. Remove the oil drain plug. Let the oil drain for at least five minutes. diy hyundai oil change
  • Install Oil Drain Plug Reinstall the oil drain plug; if you have a replacement washer, make sure to install it. Tighten the oil drain plug to 30 lb-ft. how much does it cost to change hyundai engine oil
  • Replace Engine Oil Filter Remove the oil filter using an oil filter wrench. You can remove the oil filter by turning it counterclockwise. Clean the surface where the oil filter will be installed. Apply a thin film of clean oil to the new oil filter’s gasket. Screw the new oil filter and tighten it by hand until the gasket contacts the engine block. Tighten the new oil filter to 8.5-10 lb-ft. Most people can tighten the filter to 9 lb-ft by hand.

  • Add engine oil. Remove the engine oil cap.hyundai sonata oil change
  • Use a funnel to add oil.hyundai engine oil and filter change If your Hyundai requires 4.5 liters/quarts, start by adding 4 quarts.

    • Wait a few minutes and check the engine oil level.

  • Re-check engine oil level Lower your vehicle from the jack or your ramp. Next, start the engine and let it run for a minute. Turn off the engine and let the car sit for a few minutes. Re-check the engine oil level to make it sit is within the required MIN and MAX marks of the dipstick. hyundai elantra oil change

    • What is the recommended oil change interval on a Hyundai?

    According to Hyundai, 2010 and newer models (Hyundai Elantra, Sonata, Santa Fe, Accent) have a recommended oil change interval of 7,500 miles. Pre-2010 Hyundai models require oil changes every 3,000 to 5,000 miles. Every Hyundai engine is different, so it is better to look it up on your owner’s manual.

    Make sure to use synthetic oil and a quality oil filter.

    If you switch to conventional engine oil, make sure to change the engine oil on your Hyundai every 3000 miles.

    What is the engine oil capacity for a Hyundai?

    manual

    Hyundai engine oil capacity with filter depends on the engine size.

    • Accent
      • 1.6L – 3.5 QUARTS
    • Azera
      • 3.3L 6 Cylinder Engine – 5.5 quarts
      • 3. 8l 6 Cylinder Engine – 5.5 quarts
    • Elantra
      • 2.0L 4 Cylinder Engine – 4.2 quarts
      • 1.8L 4 Cylinder Engine – 4.2 quarts
    • Genesis
      • 3.8L 6 Cylinder Engine – 5.5 quarts
      • 4.6L 8 Cylinder Engine – 6.9 quarts
    • Santa Fe
      • 2.4L 4 Cylinder Engine – 4.9 quarts
      • 3.5L 6 Cylinder Engine – 5.5 quarts
    • Sonata
      • 2.4L 4 Cylinder Engine – 4.5 quarts
      • 3.3L 6 Cylinder Engine – 5.5 quarts
    • Tucson
      • 2.4L 4 Cylinder Engine – 4.8 quarts
    • Veracruz
      • 3.8L 6 Cylinder Engine – 5.5 quarts

    Verify Hyundai oil capacities on your owner’s manual.

    What is the recommended oil for Hyundai vehicles?

    The engine oil recommended for most Hyundai vehicles is 5W-30 full synthetic. 10W-30 is a better choice for hot climates, while 5W-20 works better in cold climates or if you want better fuel economy. The recommended oil should meet API SM / ILSAC GF-4 standards; the viscosity should be printed on the oil cap on top of the engine. Check your owner’s manual.

    We hope you find the Hyundai Engine Oil Change | DIY Instructions guide helpful. Check these troubleshooting and repair guides for more help on your Hyundai.
