Replacing the engine spark plugs and ignition coils on a Chrysler 3.6L Pentastar engine is a routine maintenance task that should be performed every 100,000 miles or as recommended by the manufacturer. The spark plugs and ignition coils play a crucial role in the ignition system, responsible for delivering an electric spark to ignite the fuel-air mixture in the engine’s cylinders. Over time, these components can wear out and cause problems such as misfires, reduced fuel efficiency, and decreased engine performance. Replacing the spark plugs and ignition coils is a straightforward process and can be done with basic tools, but it is important to use high-quality replacement parts to ensure reliable operation and longevity. Failing to replace the spark plugs and ignition coils can result in further engine damage and costly repairs.


What you will need

  • (6) 3.6 Pentastar Engine Spark Plugs
    • NGK Laser Iridium #1989
    • Champion RER8ZWYCB4 – OEM
    • Autolite XP Iridium #XP5701
  • Ignition Coils Mopar 5149168AI
    • OEM ignition coil for Chrysler 3.6L Pentastar engine. It is recommended to stay with original factory coils to avoid problems down the road. Interchange part number: UF648, C1791, 5C1848, E1148, 2505484816, Supersedes 5149168AH.
  • 1/4″ Drive Ratchet
  • 3″ Extension (1/4″)
  • 10 mm Socket
  • 8 mm socket
  • 5/8″ Spark Plug Socket (3/8″)
  • 12″ Extension (3/8″)
  • 3/8″ Drive Ratchet
  • Dielectric Grease
  • Torque Wrench

Procedure

  1. Allow the engine to cool down. Open the hood.
  2. Disconnect the negative battery terminal.
  3. Remove the engine cover by pulling it up. You don’t need to remove any screws to remove the engine cover.
  4. Disconnect the vacuum lines from the intake manifold.
  5. Disconnect the air intake from the throttle body. Disconnect any vacuum tubes connected to the air intake tube. Loosen the 8 mm hose clamp screw. Unplug the air temperature sensor near the throttle body.
  6. Remove the 8mm bolts (in some engines, these may require a T30 Torx bit) that secure the intake plenum (manifold) to the top of the engine. Seven bolts need to be removed. These are long bolts and don’t need to come out. Remove the two 10 mm bolts on the front. Remove the two 10 mm bolts on the back of the intake manifold.how to replace spark plugs chrysler penta star  Remove one 13 mm bolt on the metal bracket and push the bracket back. Next, lift the intake manifold and move it aside. Cover the intake with a clean newspaper so that no foreign object or dirt falls inside the engine. 2012“2015 Lancia Voyager (Models: Limited)
  7. Rubber Gaskets between the plenum and intake manifold.
    When you remove the intake plenum, you will notice three rubber gaskets between the plenum and the intake manifold. These gaskets are typically integrated into the intake manifold part and don’t necessarily need to be removed. Please do not add any silicone or gasket sealant here, as it is not necessary. The most important thing is to tighten the intake plenum bolts to spec as described in the following steps.  2012“2014 Lancia Thema

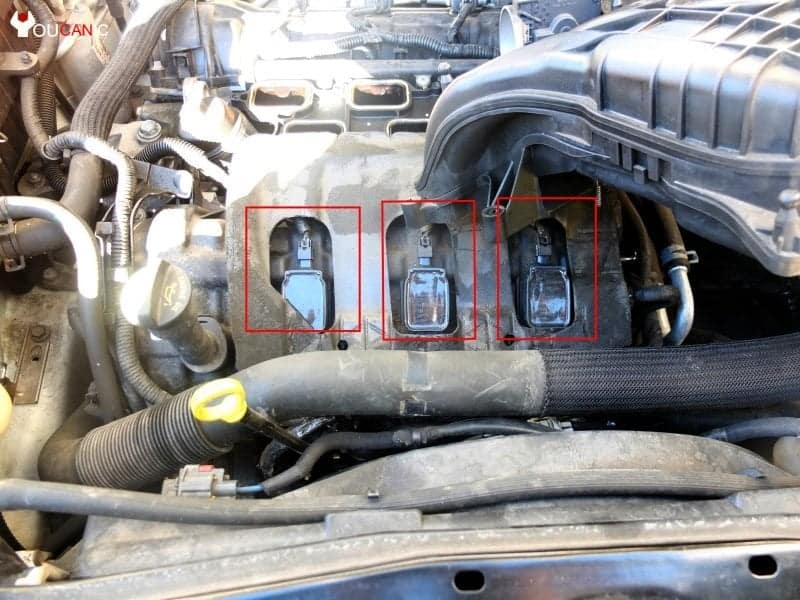

  8. Remove the 10 mm bolts that hold the ignition coils in place. 2012“present Jeep Wrangler (Models: Sport, Unlimited Sport, Sport  Unplug the electrical connectors from the ignition coils.  2011“2014 Volkswagen Routan (Models: S, SE, SEL, SEL Premium)The ignition coil was removed.  2011“present Jeep Grand Cherokee (Models: Laredo
  9. Remove the old spark plugs. 2011“2016 Chrysler Town & Country (Models: LX, Touring, Touring  There are six plugs.  2011“present Chrysler 300 (Models: 300 Base, 300 S V6, 300 C w/ V6, 300 C Glacier Series w/ V6, 300 C Luxury Series w/ V6)The spark plug was removed.  2011“present Dodge Durango (Models: Express, SXT, Crew, Crew Lux, Citadel, ACT Plus, Limited, R/T)
  10. Be careful that NO foreign materials fall into the combustion chamber via the spark plug holes. Install the new spark plug by lowering them slowly. Note that all spark plugs that are iridium or platinum spark plug should come pre-gapped. You should always double-check them and make sure they are all gaped correctly before inserting them into the cylinder head. Use the extension and 5/8″ socket to tighten the new spark plugs. Tighten the spark plugs to 10 ft-lbs. If you are not using a torque wrench, you may want to get your spark plugs snug, then turn an extra half a turn.  2012“present Fiat Freemont
  11. Add a coat of dielectric grease to the end of the coil pack boot. 2011“present Dodge Charger (Models: SE, SXT, SXT +, SXT Rallye Edition) Insert the coil into the spark plug hole. 2011“present Dodge Journey (Models: SE American Value Package (AVP) or Canadian Value Package (CVP), Mainstreet, Crew, Crew Lux, SXT, R/T Crossroad) Tighten the 10 mm bolt until they are snug, don’t over-tighten these bolts.  2011“2015 Dodge Grand Caravan (Models: SE American Value Package (AVP) or Canadian Value Package (CVP), SE, Crew, Crew Lux, SXT, R/T SE Plus, SXT Plus)
  12. Install the plenum. If you have new gaskets to install between the intake manifold and plenum, now is the time to replace them. Otherwise, go to the next step.
  13. Install the plenum in reverse order of removal. The seven bolts must be torqued to 7-9 Nm (5-6.6 lb/ft). These bolts must be torqued to spec.
  14. Next, tighten the two 10mm bolts in front of the plenum.
  15. Next, install the bracket on the other side of the plenum. Place the bracket and tighten the 10mm and 13mm bolts.
  16. Next, reattach the air intake tube to the throttle body.
  17. Reconnect any vacuum hose you disconnected earlier, such as a PCV hose and makeup line.
  18. Reconnect the wiring harness that you may have removed.
  19. Reinstall the engine cover by placing it on top of the engine and pressing it down until you hear it lock.
  20. Reconnect the negative engine terminal.
  21. Start up the engine and make sure the engine is running smoothly.

If you need to reset the check engine light on your dashboard, you will need the YOUCANIC Full System Scanner to clear the fault code after replacing the spark plugs of your Chrysler 3.6L Pentastar.

YOUCANIC UCAN2 SCANNER

Applications

Show Vehicles

This 3.6L Chrysler engine is found in the following makes and models, and the instructions found on this page will help owners of:

  • 2011-2016 Chrysler 200 (Models: LX, Touring, Limited, S, and C)
  • 2011-present Chrysler 300 (Models: 300 Base, 300 S V6, 300 C w/ V6, 300 C Glacier Series w/ V6, 300 C Luxury Series w/ V6)
  • 2011-2016 Chrysler Town & Country (Models: LX, Touring, Touring “L”, Limited, S, Limited Platinum)
  • 2011-2014 Dodge Avenger (Models: SE V6, SXT, R/T)
  • 2011-present Dodge Challenger (Models: SE, SXT, SXT +, SXT Rallye Edition)
  • 2011-present Dodge Charger (Models: SE, SXT, SXT +, SXT Rallye Edition)
  • 2011-present Dodge Durango (Models: Express, SXT, Crew, Crew Lux, Citadel, ACT Plus, Limited, R/T)
  • 2011-2015 Dodge Grand Caravan (Models: SE American Value Package (AVP) or Canadian Value Package (CVP), SE, Crew, Crew Lux, SXT, R/T SE Plus, SXT Plus)
  • 2011-present Dodge Journey (Models: SE American Value Package (AVP) or Canadian Value Package (CVP), Mainstreet, Crew, Crew Lux, SXT, R/T Crossroad)
  • 2011-present Jeep Grand Cherokee (Models: Laredo “E,” Laredo “X,” 70TH Anniversary Edition, Trailhawk, Altitude Edition, Limited, Overland, Overland Summit Edition)
  • 2011-2014 Volkswagen Routan (Models: S, SE, SEL, SEL Premium)
  • 2012-present Fiat Freemont
  • 2012-present Jeep Wrangler (Models: Sport, Unlimited Sport, Sport “S,” Unlimited Sport “S,” Freedom Edition, Unlimited Freedom Edition, Altitude Edition, Unlimited Altitude Edition, 70TH Anniversary Edition, Unlimited 70TH Anniversary Edition, Sahara, Unlimited Sahara, Moab, Unlimited Moab, Rubicon, Unlimited Rubicon, Rubicon 10TH Anniversary, Unlimited Rubicon 10TH Anniversary)
  • 2012-2015 Lancia Voyager (Models: Limited)
  • 2012-2014 Lancia Thema
  • 2012-2015 Ram Cargo Van (Models: C/V Base, C/V Tradesman)
  • 2013-present Ram 1500 (Models: Tradesman, SLT, HFE)
  • 2014-present Ram ProMaster
  • 2015-2016 Chrysler 200 (295-hp, 262-lb ft)

Specifications

  • The spark plug gap is 0.043″.
  • Spark plug tightening torque is 13 lb/ft.

Spark plugs will come pre-gapped. We hope you find the Replace Engine Spark Plug & Ignition Coil Chrysler 3.6L Pentastar guide helpful. Check these troubleshooting and repair guides for more help on your Chrysler.
