Mercedes-Benz Install Door Panel

Mercedes-Benz Install Door Panel

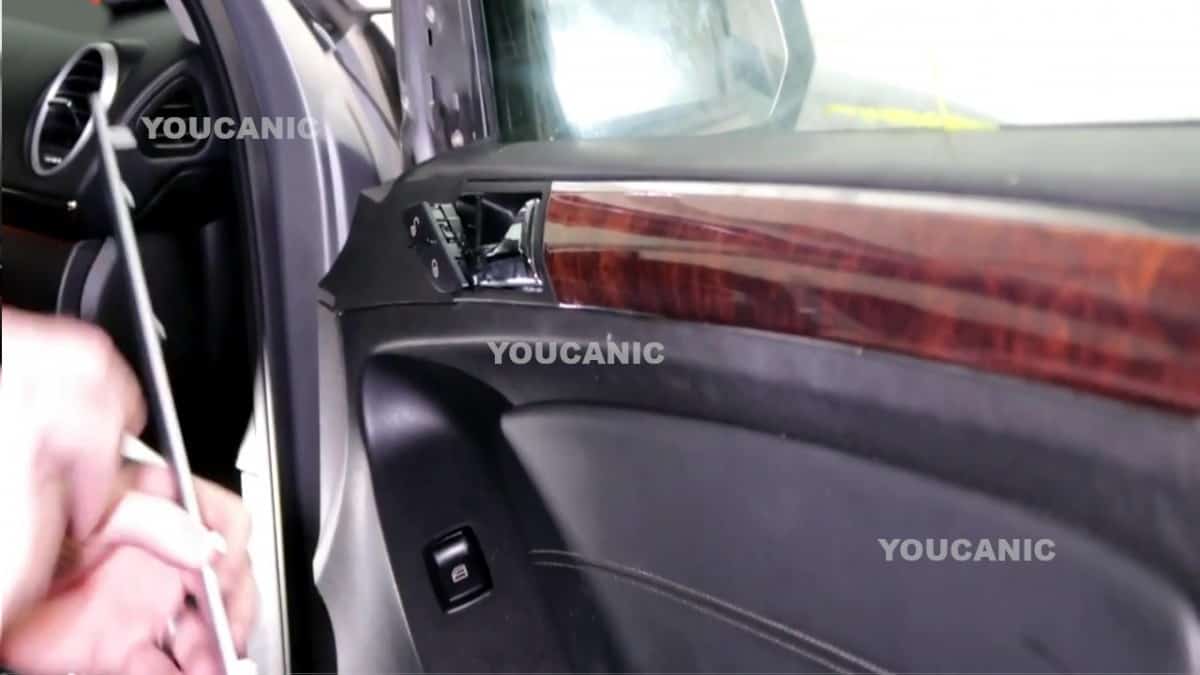

Need to install your Mercedes-Benz door panel? Learn how to install your new/replacement door panel on your Mercedes-Benz. This guide provides instructions on how to reinstall the door panel on a Mercedes Benz.

What you will need

Parts

  • Mercedes Benz door panel

Tools

  • Philips screwdriver

Procedure

  1. Reconnect the door panel electrical connector.re-connect-connectorDoor-panel
  2. Connect blue and green connectors.connect-blue-connector
  3. Push the lower front area of the panel.push-front-panel
  4. Hook up the inner door latch link.hook-door-latch-link
  5. Cable guide view.cable-guide
  6. J-connector hook view.
  7. Connect the J-connector hook.connect-j-conn-hook
  8.  Secure the cable. Hold the speaker wire. hold-speaker-wire
  9. Re-check all connectors, including the cables.re-check-all-connectors
  10. Connect lock actuator.Connect-lock-actuator
  11. Connect lock actuator to door panel lock slot.connect-lock-actuator-to-door-panel
  12. Align door panel.Align-door-panel
  13. Insert the top portion of the panel, then push down.insert-top-portion-of-panel
  14. Push-fit the lower front side of the panel.push-lower-panel
  15. Push-fit the bottom side of the panel.push-fit-bottom-panel
  16. Push-fit the rear bottom part of the panel.push-fit-bottom-panel
  17. Push-fit the back middle side of the panel.push-fit-middle-side-panel
  18. Install and fasten the retaining bolt on the latch.install-retaining-bolts1
  19. Reinstall bolt-on middle side of the panel.reinstall-bolt2
  20. Push-fit the window control button.fit-window-control-button
  21. Connect metal trim.Connect-meta-trim
  22. Hookup speaker to speaker wire.hook-speaker-wire
  23. Attach the speaker to the speaker panel.Attach-speaker-to-panel
  24. Install speaker panel to the door.install-speaker-panel-to-door
  25. Push the side mirror panel until it clicks.push-mirror-till-click

Frequently Asked Questions

What does the car door panel equip with?

  • Doors currently have a full-width inner panel consisting of electronic windows, a central locking system, and speakers. These panels typically contain a foamed core covered with either textiles or plastics.

How much is a new door panel?

  • A vehicle door panel replacement may cost you around $200 to $500.

We hope you find the Mercedes-Benz Install Door Panel guide helpful. Check these troubleshooting and repair guides for more help on your Mercedes-Benz.
