2011-2019 Mitsubishi Outlander Sport Fuse Chart and Location

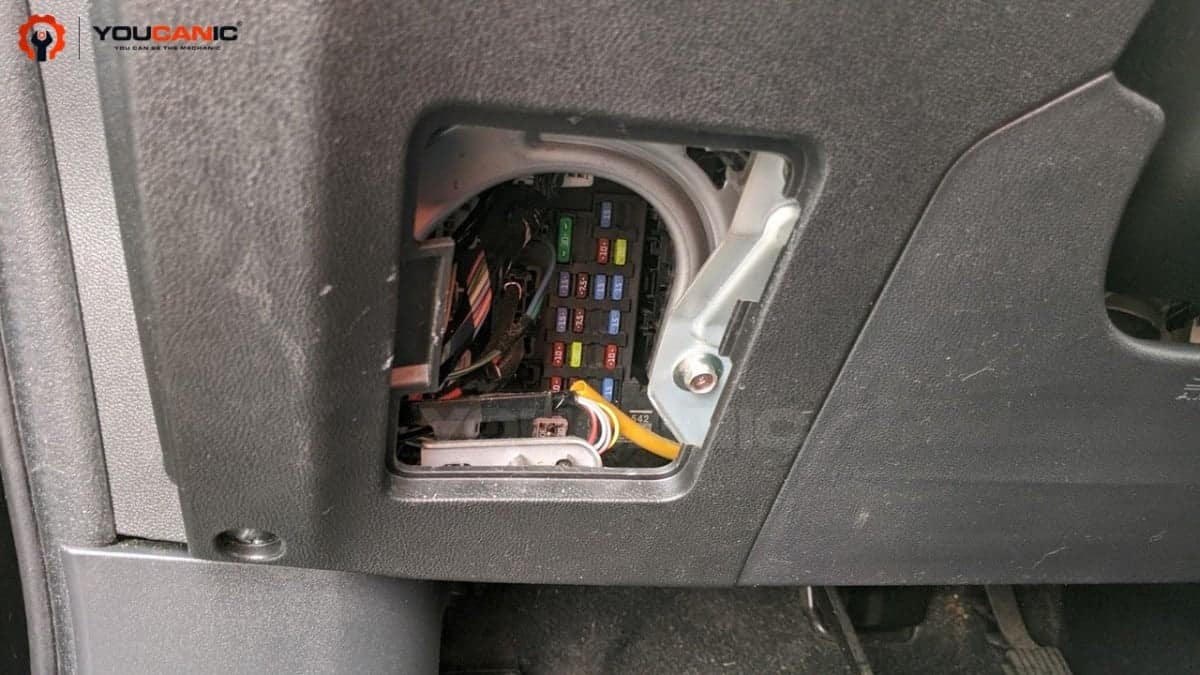

This guide shows the fuse chart and their locations on your Mitsubishi Outlander Sport.
Passenger | ||
Fuse # | System | Ampere |
1 | Heater | 30A* |
2 | Stoplights/Brake lights | 15A |
3 | Rear fog light | 10A |
4 | Windshield wiper | 30A |
5 | Optional | 10A |
6 | Door locks | 20A |
7 | Radio | 15A |
8 | Control unit relay | 7.5A |
9 | Interior lights/Dome lights | 15A |
10 | Hazard warning flasher | 15A |
11 | Rear window wiper | 15A |
12 | Gauges | 7.5A |
13 | Cigarette lighter | 15A |
14 | Ignition switch | 10A |
15 | Sunroof | 20A |
16 | Outside rearview mirrors | 10A |
17 | All-wheel drive system | 10A |
18 | Back up lights | 7.5A |
19 | Accessory socket | 15A |
20 | Power window control | 30A* |
21 | Defogger | 30A* |
22 | Heated door mirror | 7.5A |
23 | 115V Power Outlet | 15A |
24 | Power seats | 25 (20) A |
25 | Heated seats | 30A |
Engine compartment | ||
Fuse # | System | Ampere |
1 | Front fog lights | 15A |
2 | Engine | 7.5A |
3 | Automatic transaxle | 20A |
4 | Horn | 10A |
5 | Alternator | 7.5A |
6 | Headlight washer | 20A |
7 | Air conditioner | 10A |
8 | ETV/ Oil cooler fan | 15A |
9 | Security horn | 20A |
10 | Wiper deicer | 15A |
11 | – | – |
12 | Power gate | 30A |
13 | Daytime running lights | 10A |
14 | Left headlight/ high beam | 10A |
15 | Right headlight/high beam | 10A |
16 | Left headlight/low beam | 20A |
17 | Right headlight/low beam | 20A |
18 | Left headlight/low beam halogen | 10A |
19 | Right headlight/low beam halogen | 10A |
20 | ENG/POWER | 10A |
21 | Ignition coil | 10A |
22 | ENG/POWER | 20A |
Fuel line heater | 25A | |
23 | Fuel pump | 15A |
24 | Starter | 30A* |
25 | – | – |
26 | Anti-lock braking system | 40A* |
27 | Anti-lock braking system | 30A* |
28 | Air conditioning condenser fan motor | 30A* |
29 | Radiator fan | 40A* |
30 | IOD | 30A |
31 | Audio amplifier | 30A |
32 | Diesel | 30A |
33 | Spare fuse | 10A |
34 | Spare fuse | 15A |
35 | Spare fuse | 20A |
