Sway Bar Link Replacement Kia Optima 2016 to 2020
Is there a clunking noise when driving your Kia Optima? Learn how to fix the problem by replacing the sway bar link of your Kia. This guide is a step-by-step instruction on replacing the sway bar link on a 2016 to 2020 Kia Optima.
At a Glance
- Fits: 2016 to 2020 Kia Optima (front sway bar links)
- Symptom: clunk or rattle over small bumps
- Tools: 17mm wrench, 8mm wrench to hold the stud, jack and stands
- Time: about 30 minutes per side
- Alignment: not needed after replacing sway bar links
Is It the Sway Bar Link?
- Clunk or rattle over small bumps at low speed, often from one front corner.
- Test: with the car on the ground, grab the link and try to move it. Any play or knocking at the ball joints means it is worn.
- Torn boots on the link ball joints let in water and grit.
- Not the link: clunks on hard bumps or when turning can come from struts, strut mounts or control arm bushings.
Tip: if the nut spins with the stud, hold the stud with the 8mm wrench (or a hex key on some links) while turning the nut.
What you will need
- 17mm wrench
- 8mm wrench
- Floor jack
- Jack stands
- Wheel chocks
- Sway bar link (Kia Optima)
Procedure
- Park the vehicle, set the parking brake, and loosen the lug nuts on the front wheel.

- Jack up the vehicle on the jack points under the front door and remove the front wheel.

- Support the vehicle with jack stands and place wheel chocks on the rear wheel.

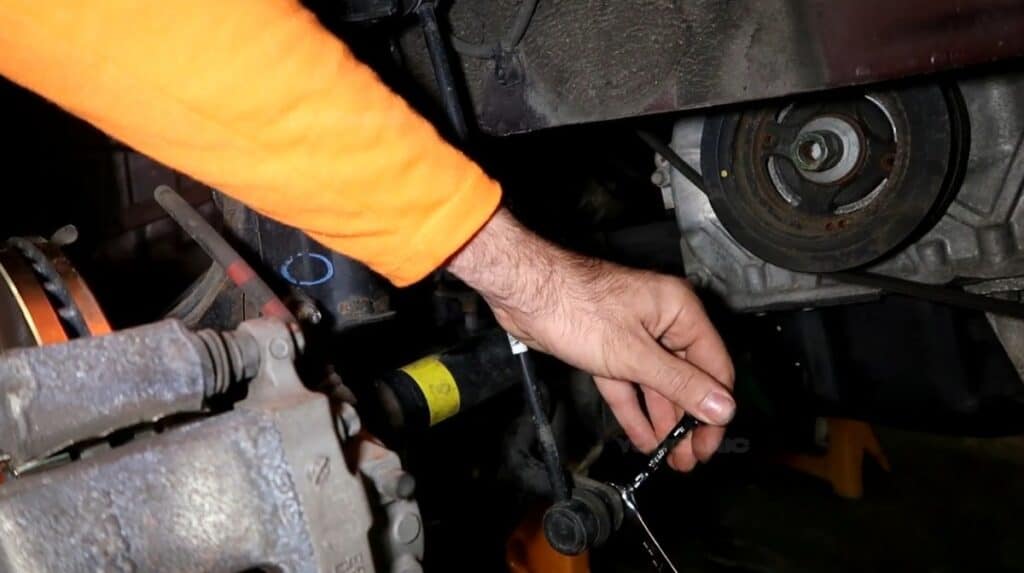

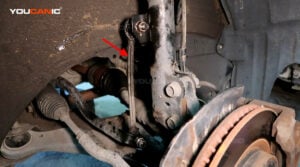

- Locate the sway bar link and loosen the bolts on both sides of the sway bar link. Use a 17mm wrench to loosen the bolt and an 8mm wrench to counterhold.

- Repeat for the upper connection to the strut.

- Tap or use a tool to push the sway bar link out from the vehicle’s suspension.
Another method to remove the sway bar link is to place a jack under the control arm and slowly raise the control arm until the sway bar link can be easily removed by hand. - Get the new sway bar link and line it back to the sway bar and suspension. Then reinstall the bolts back to the sway bar link.
Torque Specification of the bolts on the sway bar link: 98.1 to 117.7N.m (72.3 to 86.8lb-ft)
- Reinstall the wheel and test drive the vehicle. Torque the lug nuts to 85 ft-lbs.
Torque Specification
Bolts on the sway bar link:
🔧 Find out what is actually wrong before you pay someone to guess
Dealer level diagnostics at home with the YOUCANIC UCAN-II Pro.
- ✔ Covers most makes and models, including many luxury brands. Send us your VIN and we will confirm your car before you order
- ✔ Reads every module, not just the engine, so you find the faults a basic reader says are not there
- ✔ Commands the car: test a fan or pump, bleed ABS, retract an electronic parking brake, register a battery
- ✔ No subscriptions. Free lifetime updates, so the price you pay is the whole price
- ✔ Backed by real mechanics in the USA you can email before and after you buy
Featured in The Wall Street Journal
- 98.1 to 117.7N.m (72.3 to 86.8lb-ft)
Frequently Asked Questions
How do I know if my Kia Optima sway bar link is bad?
A clunk or rattle over small bumps and play in the link ball joints are the usual signs.
Do I need an alignment after replacing sway bar links?
No. Sway bar links do not affect wheel alignment.
Should I replace both sway bar links?
It is a good idea. If one is worn, the other is usually close behind, and both are quick to replace.
