Learn how to change lower ball joints on most Kia vehicles. These instructions and pictures are for 2011-2016 Kia Optima, but owners of Kia Cadenza, K900, Soul, Niro, Sportage, Sorento, Sedona, Forte, and Rio will also find these instructions helpful.

What you will need

  • Kia Lower Ball Joint
  • Jack Stand
  • Floor Jack
  • Ratchet
  • Breaker Bar
  • 10-21mm Metric Socket Set

Procedure

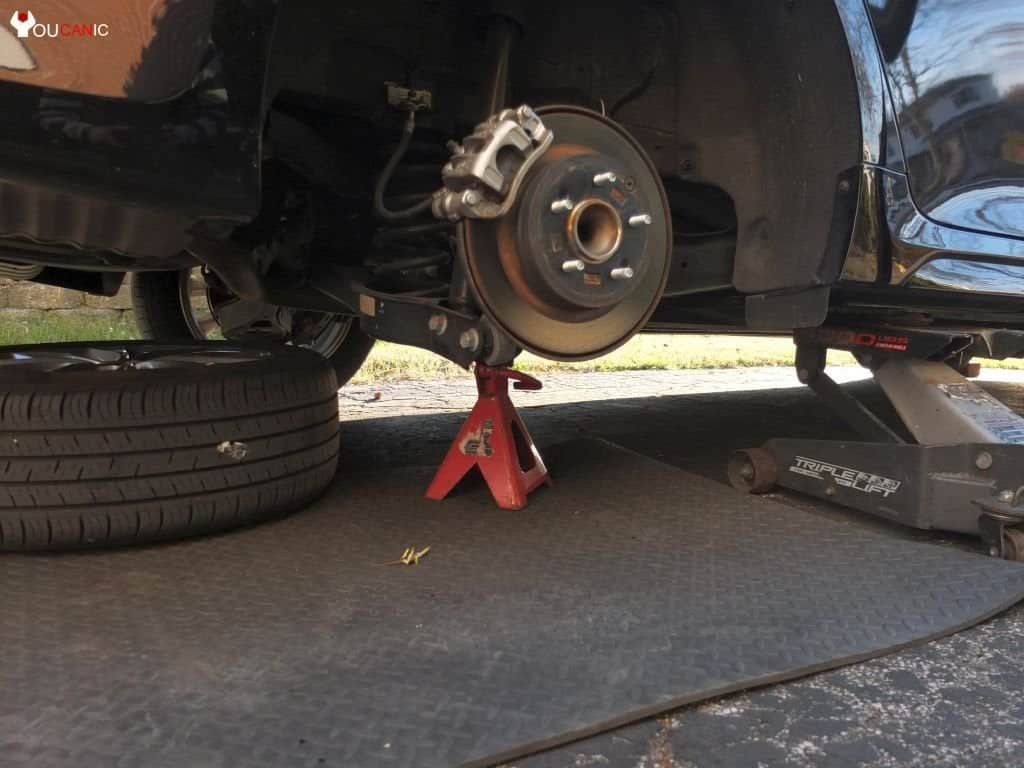

  1. Raise vehicle – Park the vehicle and place it in (P) park. Set the parking brakes. Jack up your vehicle and place jack stands under the car. Next, remove the front wheel.

    kia forte lower ball joint replacment guide

  2. Remove ball joint bolts.  Remove the bolts that hold the lower ball joint in place.

    diy ball joint kia

  3. Remove nut and bolt – Remove the bolt by the knuckle. This allows lowering the ball joint.

    how to change ball joint kia optima diy replacement guide

  4. Replace ball joint – Remove the old ball joint. You may need to use a ball joint fork to separate your old ball joint from the knuckle.

    how to replace ball joint kia rio diy guid

  5. Install new ball joint in reverse order and tighten the bolts according to specifications.

    remove replace install new ball joint kia sedona

  6. After ball joints are replaced, alignment is recommended to ensure good tire wear.

You may consider replacing the lower control arm together with the ball joint. This is an alternative if you have a pressed ball joint type and don’t want to deal with pressing the ball joint in and out of the control arm.

Check out more Kia repair guides and the article on how to read codes and troubleshoot vehicle problems yourself.
