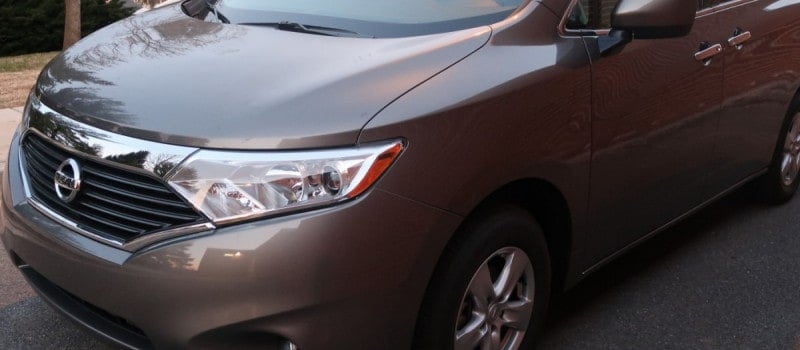

Nissan Quest Headlight Assembly Replacement

This guide provides instructions on replacing the headlight on the Nissan Quest. This guideline applies to model years 2011, 2012, 2013, 2014, 2015, 2016, and 2017

What you will need

• Nissan Quest Headlight
• Screwdriver
• Mechanic Tool Set Metric
  • 10mm socket
  • Ratchet wrench

Procedure

1. Remove the front bumper cover. Remove the front grill and two screws securing the fender’s front bumper.
2. Several plastic retaining clips attach the front bumper to the wheel liner and bottom splash shield.
3. All these must be removed to get to the bumper, partially loose or wholly removed.
4. Watch a short video that shows what bolts you need to remove.

Procedure

1. Remove the front bumper cover. Remove the front grill and two screws securing the fender’s front bumper.
2. Several plastic retaining clips attach the front bumper to the wheel liner and bottom splash shield.
3. All these must be removed to get to the bumper, partially loose or wholly removed.
4. Watch a short video that shows what bolts you need to remove.

Unplug the electrical connector from the headlight. Either remove each socket individually or unplug the wire harness connecting to the headlight socket. Remove headlight bolts. Now, you should have access to the Nissan headlight and all the bolts. Remove all four 10mm bolts that secure the Nissan Quest headlight to the body.Remove the bolt at the side of the headlight as well.

Remove the headlight from the vehicle.

Install the new headlight in reverse order.

The new headlight needs to be aligned after installation.
