Nissan Quest Turn Signal Switch Replacement

Nissan Turn Signal & Wiper Switch Replacement Guide

This tutorial’s video clips and procedures were recorded with a 2017 Nissan Quest. These instructions should also help owners of Nissan Versa, Altima, Maxima, Rogue, Murano, and Titan replace the turn signal and wiper switch easier.

Symptoms

If the combination switch fails on your Nissan, you will notice one or more of the following problems.

  • Nissan Turn Signals don’t work
  • The wiper does not work
  • Turn signal does not cancel
  • Low or High stalk does not work

What you will need

Bestseller No. 1
X AUTOHAUX Car Turn Signal Switch Multifunction Combination Lever Switch 25540-40U60 CBS1076 for...
X AUTOHAUX Car Turn Signal Switch Multifunction Combination Lever Switch 25540-40U60 CBS1076 for...
Material: Made of durable material for long service time, tough and practical.
$25.99
  • Nissan Combination Switch
  • Mechanic Toolset Metric
  • Torque Wrench
  • Breaker Bar
  • Secure Torx Set

Procedure

  1. Park the Nissan and set the parking brake. Remove the key from the ignition of your Nissan.
  2. Disconnect the negative battery cable from the battery terminal.
  3. Remove Torx bolts on the side of the steering wheel. You will need to use a secure Torx bit with a hole in the center. 1415 3b
  4. Unplug the wires from the back of the driver’s airbag. Watch the video on how to remove the Nissan airbag.
  5. Remove the center bolt that secures the Nissan steering wheel to the steering column. Mark the steering wheel and column before you remove the steering wheel. Remove steering wheel and spiral calbe on Nissan Quest Altima Maxima Rouge Murano Titan
  6. Unplug the steering wheel button wire harness. Watch the video on how to remove the Nissan steering wheel.
  7. Remove the plastic trim.
  8. Next, you need to remove the clock spring, which is held in place with several screws. Replace the clock spring if your Nissan horn does not work
  9. Unplug the wires from the clock spring. 1415 6b
  10. In this case, the clock spring and the Nissan steering angle sensor are integrated. 1415 6c

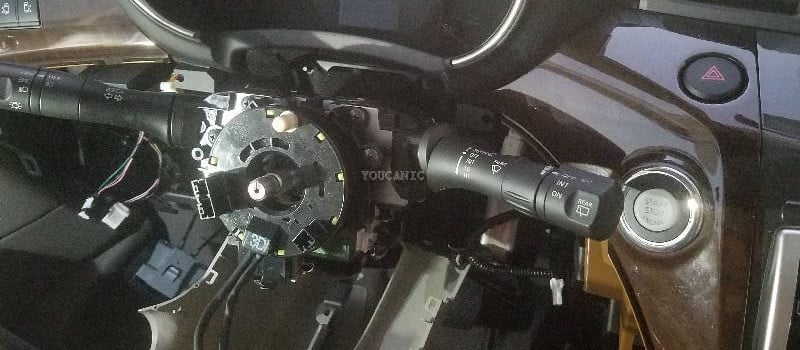

  11. Remove the combination switch, which has the turn signal and wiper stack
  12. Install the new Nissan spiral cable/clock spring. The clock spring needs to be installed in the neutral position. Don’t wind it up to the left or right. The clock spring has a limited number of turns. If you turn it to one side, the ribbon can’t take more steering wheel turns, or it may get damaged shortly after installation.

    Install a new Nissan clock spring/spiral cable/steering angle sensor. Nissan combination switch turn signal wiper

  13. Install the Nissan steering column cover.
  14. Install the plastic cover before you install the steering wheel.
  15. Install the steering wheel and torque the center bolt to 35Nm.
  16. Install the airbag. Connect the steering wheel and airbag wires. Torque the bolts that secure the airbag to approximately 8-10Nm.
  17. Rember to reconnect the negative battery terminal. Ensure the airbag light is off. Test the horn and the steering wheel button operation.

We hope you find the Nissan Turn Signal & Wiper Switch Replacement Guide helpful. Check these troubleshooting and repair guides for more help on your Nissan.
