Cadillac Air Conditioner A/C Recharge Instructions

ac cap removal

This guide provides instructions on charging the Cadillac Air Conditioner (A/C) system with refrigerant (R134a freon).

If the A/C is blowing hot air, there is a good chance that the system is low on freon. A minor leak can be addressed by topping off the A/C system with refrigerant. The A/C system is closed, and all leaks should be repaired.

Symptoms

One of the most common symptoms that your Cadillac is low on refrigerant is the A/C blowing hot air even when the temperature is set to cold settings.

What you will need

Bestseller No. 1
AC Pro Car Air Conditioner Synthetic R134A Refrigerant, AC Recharge Kit with Hose and Gauge, 20 Oz,...
AC Pro Car Air Conditioner Synthetic R134A Refrigerant, AC Recharge Kit with Hose and Gauge, 20 Oz,…
Replaces lost R-134a refrigerant and oil in automotive A/C system; Extra long 24 inch recharge hose for accessing hard to reach service ports
$53.99
  • Air Conditioner Recharge Kit – Recommend A/C refrigerant is noted in your owner’s manual.
  • Working Gloves
  • Protective Glasses

Procedure

  1. Park your Cadillac in a safe area. Turn off the engine.park cadillac vehicle
  2. Pull the hood release under the dashboard until you hear your Cadillac hood pop open. Open the hood.unlock cadillac hood
  3. Next, locate the low-pressure port. Label 11 in this picture shows where the A/C charging port is on a Cadillac. Note that there also is a high-pressure line as well. The A/C charging kit connector will not fit on the port for the high-pressure line. cadillac low pressure port

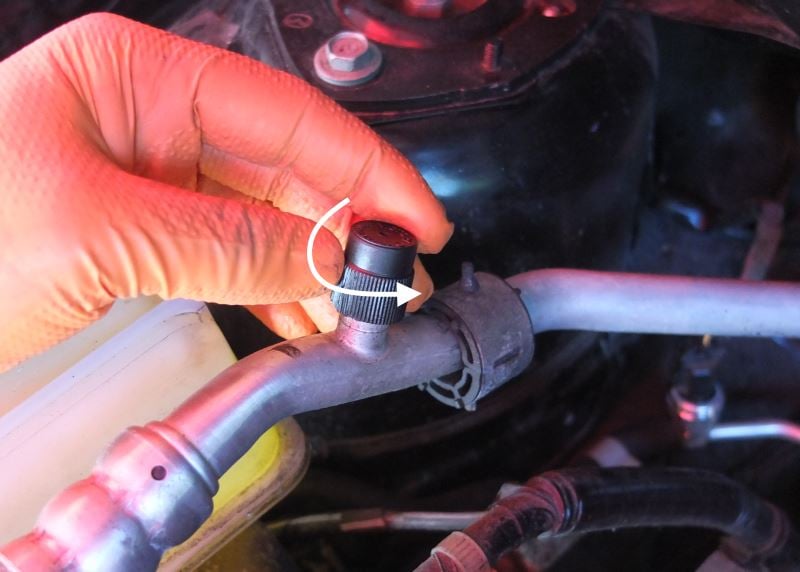

  4. Carefully remove the cap from the low-pressure port by twisting it counterclockwise.ac cap removal
  5. Connect your AC charging kit to the A/C charging port. You are almost ready to add freon to your vehicle A/C system. connect ac pressureDon’t start adding refrigerant to your Cadillac A/C system yet.
  6. Start the engine of your car and allow your Cadillac to idle. start engine and let it idle
  7. Next, turn A/C on and set it to the max cold setting. Set the blowing fan to maximum speed. Now you are ready to start adding refrigerant to your Cadillac air conditioner system.
  8. Now you are ready to start adding refrigerant to your Cadillac air conditioner system.
  9. Add refrigerant as directed by the manufacturer of the A/C recharge kit you use. You must press and hold the trigger until your Cadillac A/C is fully charged. This process can take several minutes.
  10. When the a/c system is low on freon, the compressor may not be engaged at first. As you add refrigerant, you should hear the compressor kick in. As you charge, the system stops pressing the trigger every couple of minutes to obtain a pressure reading. Continue adding refrigerant until your gauge reaches the charged range.

Do not allow the system to overcharge. This procedure will only be useful if your Cadillac air conditioner has a very slow leak. If your system has a large refrigerant leak, recharging the system won’t fix the problem. You will lose the refrigerant immediately or within a few days.

Charging a Cadillac A/C system with refrigerant is easy and takes about 15 minutes. These instructions will help the owners of Cadillac ATS, CTS, XTS, CT6, XT5, Escalade, SRX, DTS, STS, BLS, XLR vehicles, and other models.

The only difference between various Cadillac models is that the A/C charging port is located in the engine bay.

We hope you find the Cadillac Air Conditioner A/C Recharge Instructions guide helpful. Check these troubleshooting and repair guides for more help on your Cadillac.
