FCA Chrysler Jeep Dodge Fiat Ram Security Gateway Module Location
The FCA SGW (Fiat Chrysler Automobiles Secure Gateway) was created in 2018. Since 2018, some cars from Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, and Lancia have had the FCA SGW, and now almost every FCA vehicle has the SGW module, but what is it exactly? The purpose of the SGW is to limit “the ability of non-registered and non-authenticated users to perform intrusive diagnostics such as bi-directional controls”. It prevents you from enabling active tests, such as turning on fans, locking doors, operating windows, actuation, relearning, and calibration. This does mean it makes some diagnostic troubleshooting harder, but it does not disable the OBD II port, where you can still read live data and DTC.
Table of Contents
Chryslter Security Gateway Module Location

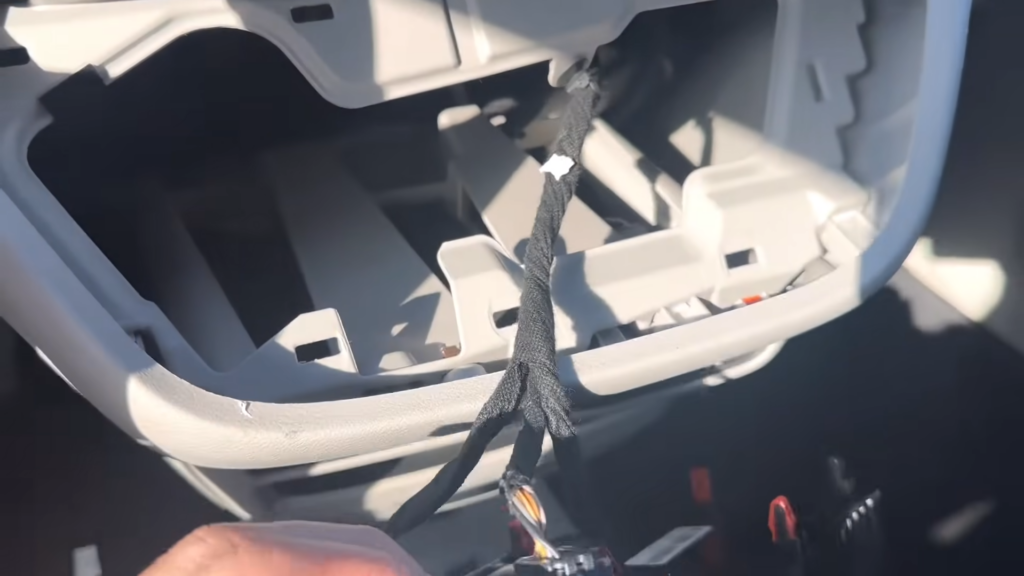

Chrysler Pacifica (2018-2023)

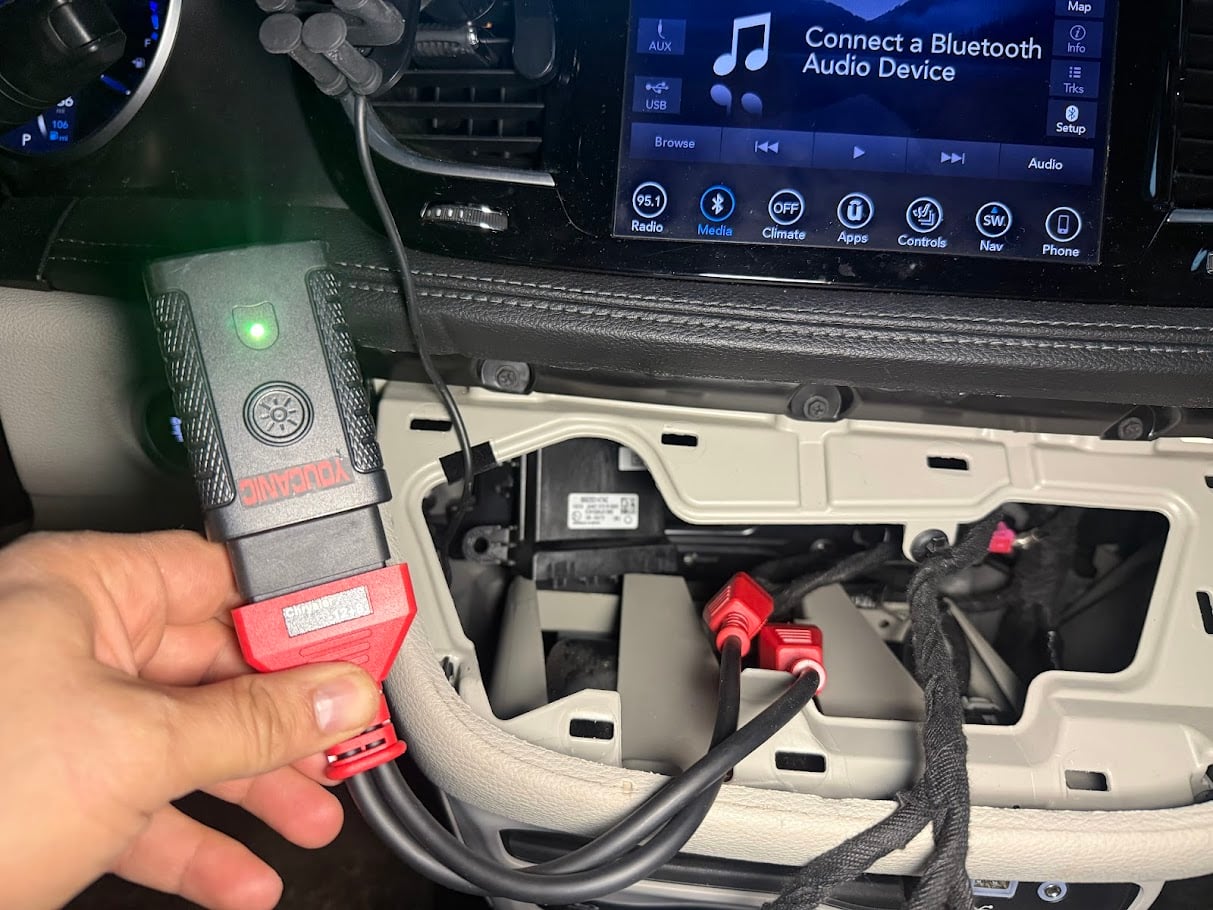

On the 2018 through 2023 Chrysler Pacifica, the security gateway is behind the AC control and under the infotainment unit.
Chrysler 300 (2018-2023)

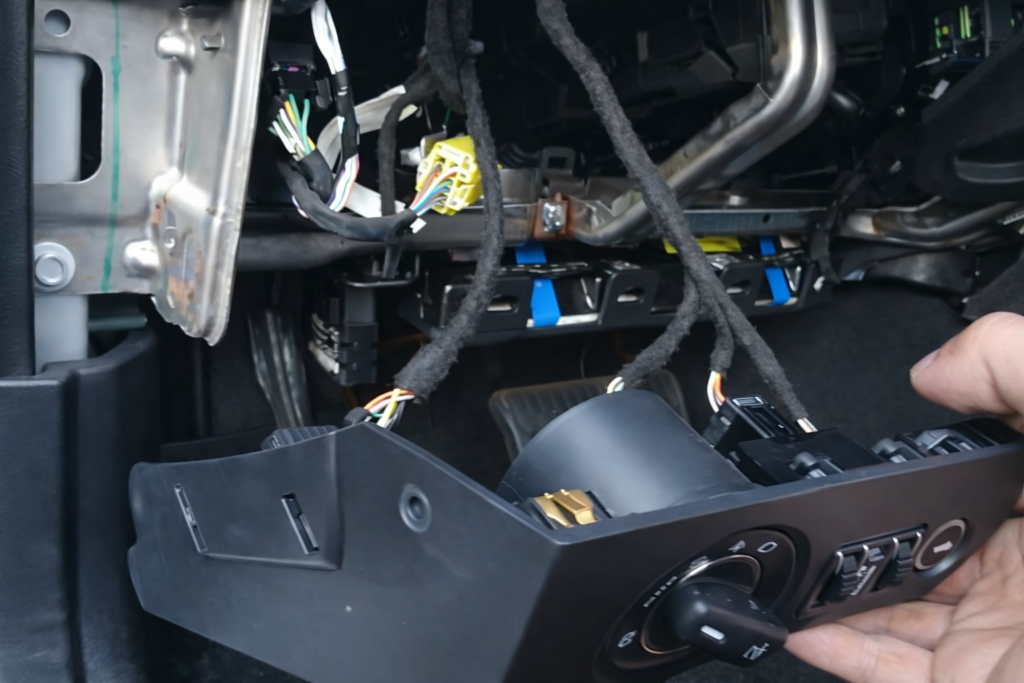

On the 2018 through 2023 Chrysler 300, the security gateway is on the left side of the dashboard near the driver’s AC vent, closest to the door, behind the OBD II port.
🔧 Stop paying the dealer for every warning light
Get dealer level diagnostics at home with the YOUCANIC Full System Scanner.
- ✔ Works with all makes and models, including most luxury brands
- ✔ Topology map view shows all vehicle modules on one screen for faster diagnostics
- ✔ Bi directional controls to test fans, pumps, actuators and more so you do not have to guess
- ✔ Special resets and calibrations such as ABS bleed, EPB service, battery registration and more
- ✔ Free lifetime updates with no recurring fees
Dodge Security Gateway Module Location

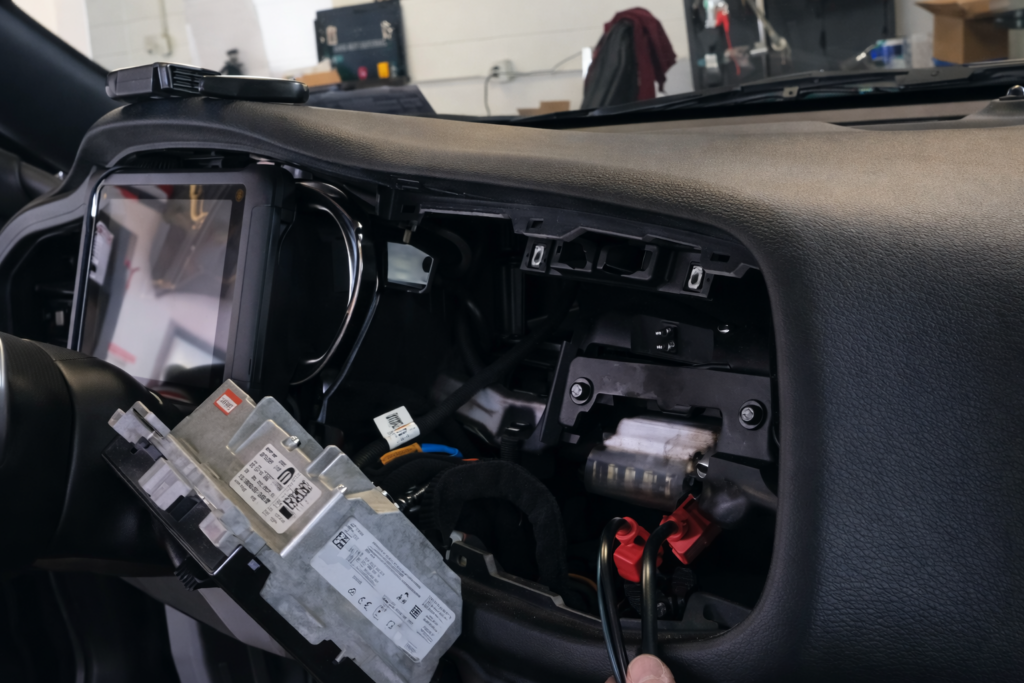

Dodge Challenger (2018-2023)
On the 2018 through 2023 Dodge Challenger, the security gateway is between the AC control and the infotainment screen

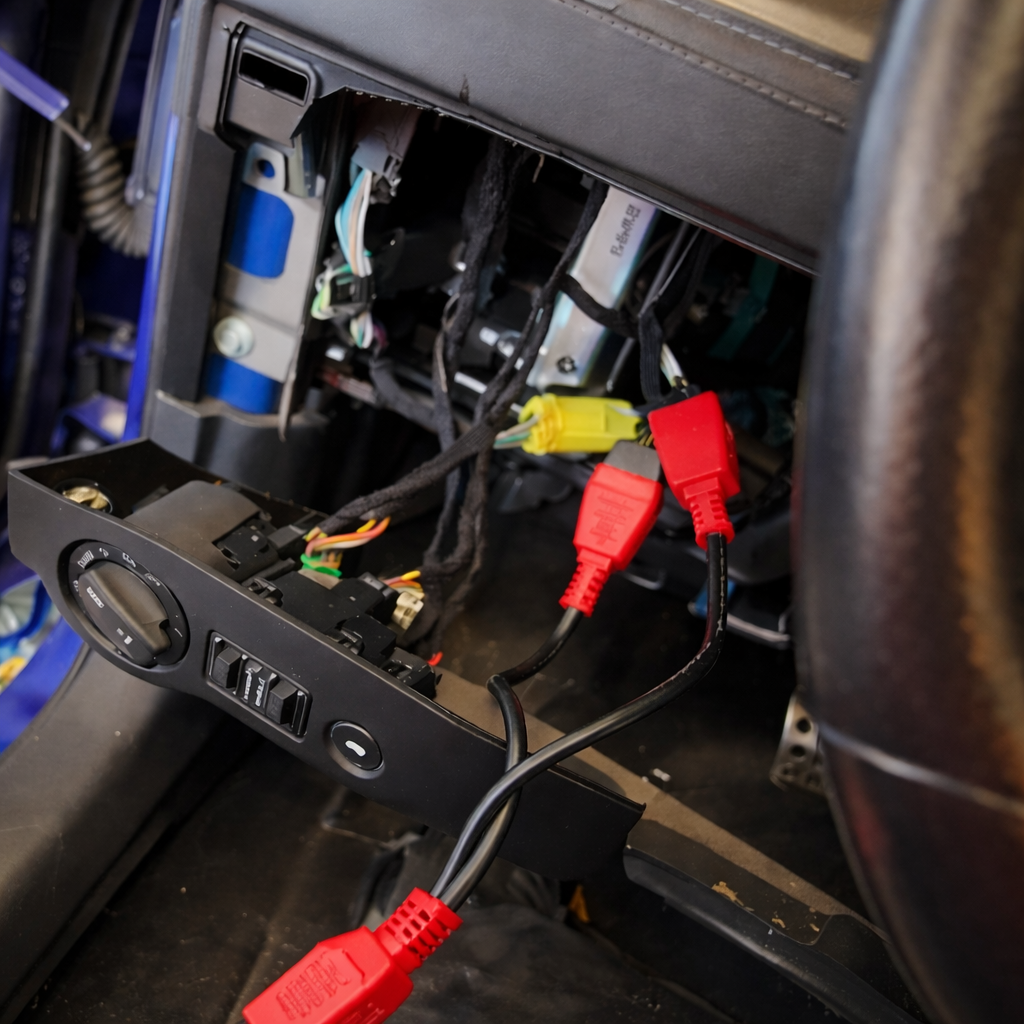

Dodge Charger (2018-2023) and Dodge Magnum (2018-2021)
On the 2018 through 2023 Dodge Charger and 2018 through 2021 Dodge Magnum, the security gateway is on the leftmost side of the dash, near the door, below the AC vent
Dodge Durango (2018-2024)
On the 2018 through 2024 Dodge Durango, the security gateway is between the glove and the center console
Dodge Journey (2018-2021)

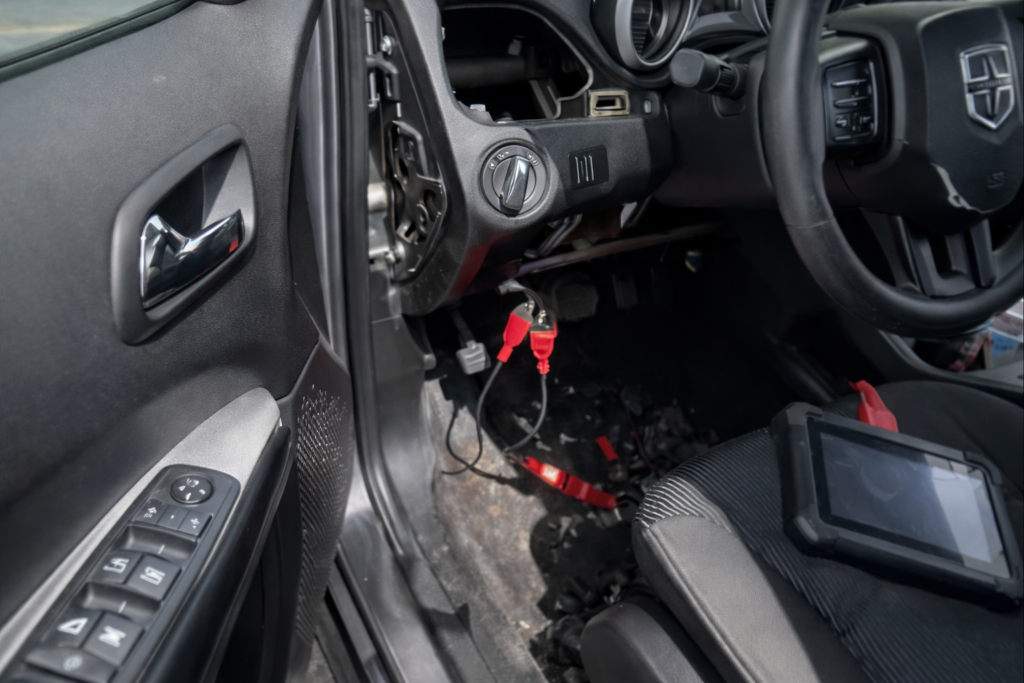

On the 2018 through 2021 Dodge Journey, the security gateway is on the leftmost side of the dashboard, near the door, below the AC vent

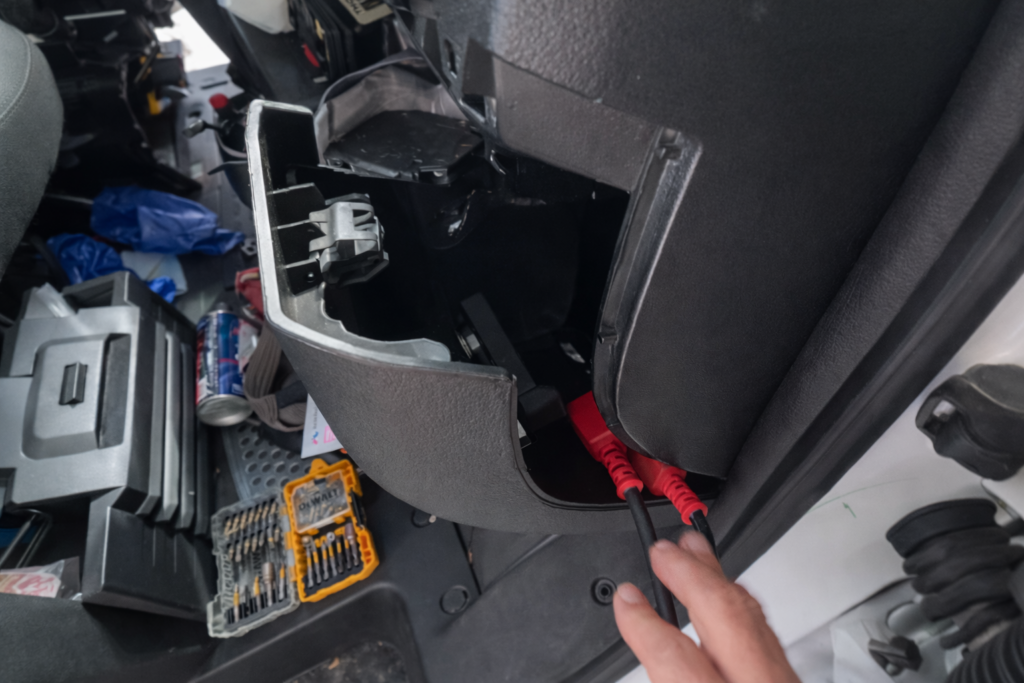

Dodge ProMaster (2018-2023)
On the 2018 through 2023 Dodge ProMaster, the security gateway is below the passenger side AC vent nearest the door.
Dodge ProMaster City (2018-2022)
On the 2018 through 2022 Dodge ProMaster City, the security gateway is located behind and slightly below the AC vent nearest the driver’s door, behind the OBD II port.
Ram Security Gateway Module Location
Ram Trucks
Ram 1000(2020-2021), Ram 1000 MCA (2022), Ram 1500 (DS) (2018-2023), Ram 2500 (2018-2024), Ram 3500 Cab Chassis (2018-2024),Ram 3500 Cab Chassis 10K (2018-2024), Ram 3500 Pickup (2018-2024), Ram 4500 (2018-2024), Ram 5500 (2018-2024)
On the 2018 through 2024 Ram Pickups, the security gateway is behind the gauge cluster.

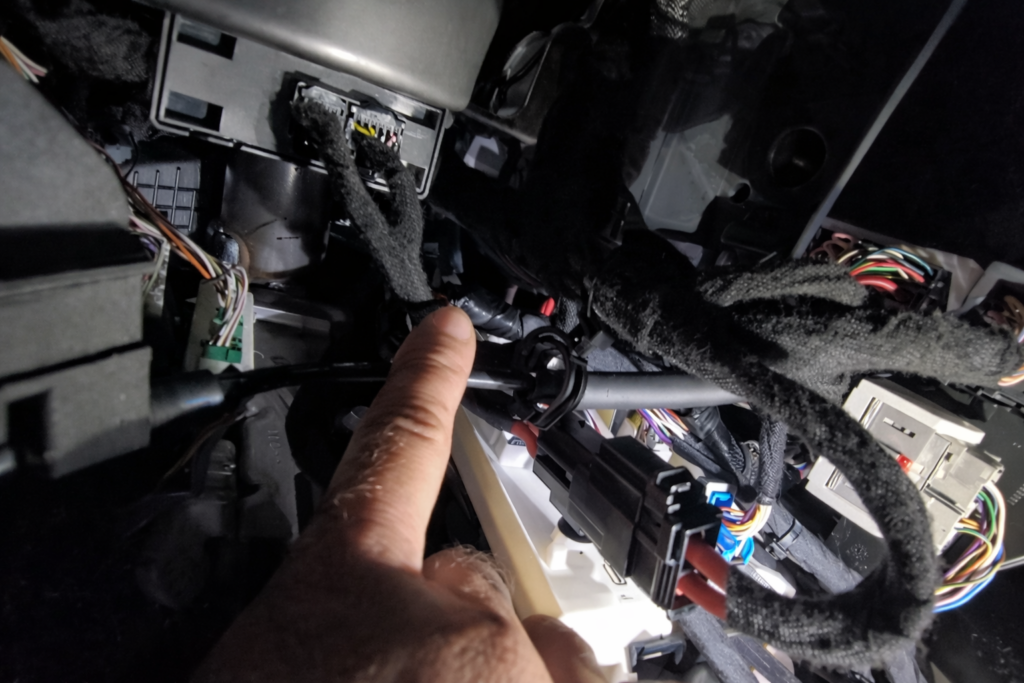

Ram 1500 (DT) (2019-2025)
On the 2019 through 2025 Ram 1500 (DT), the security gateway is behind and slightly below the AC vent nearest the driver’s door, behind the OBD II port.
Jeep Security Gateway Module Location
Jeep Compass (2019-2024)
On the 2018 through 2024 Jeep Compass, the security gateway is behind a panel to the left of the steering wheel, near the bottom of the dashboard.
Jeep Gladiator (2020-2024)
On the 2020 through 2024 Jeep Gladiator, the security gateway is near the left side of the steering column. Above the OBD II port.
Jeep Cherokee (WK) (2018-2024)

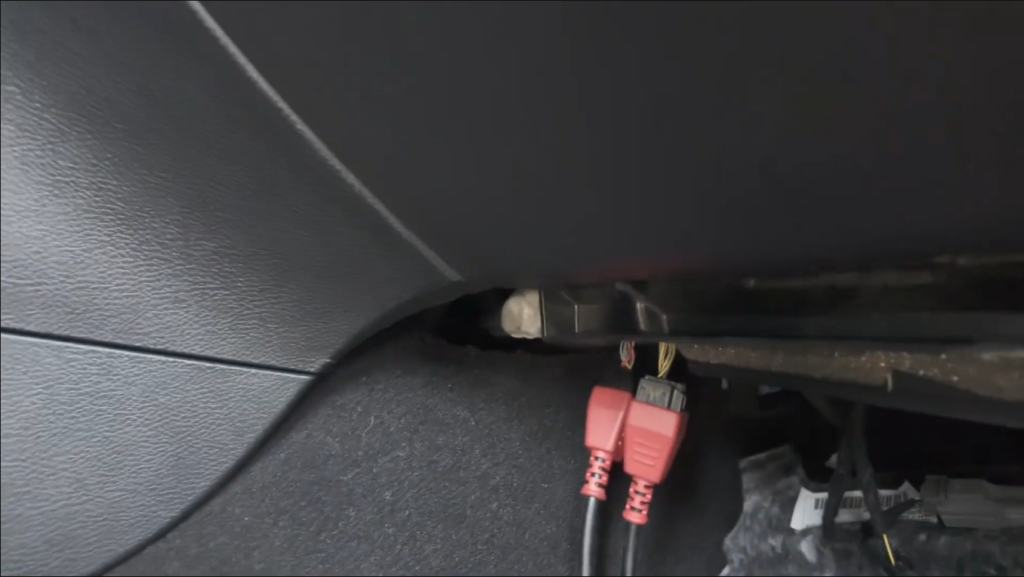

On the 2018 through 2024 Jeep Cherokee, the security gateway is behind the glovebox. Left side near the hinge of the glovebox.
Jeep Grand Commander (2018-2023)

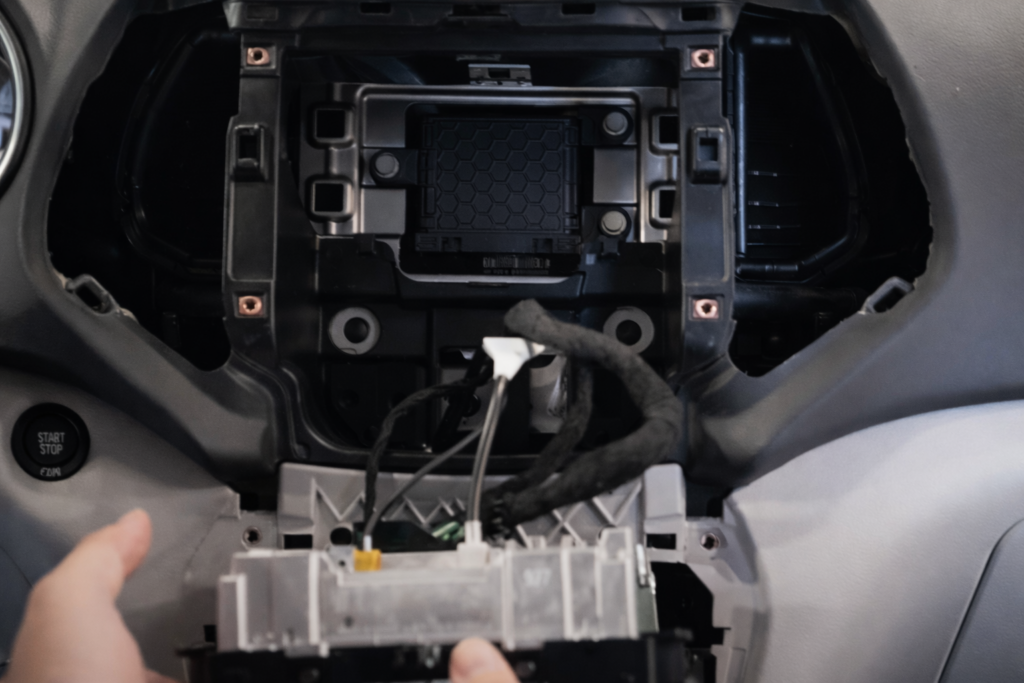

On the 2018 through 2023 Jeep Commander, the security gateway is behind the infotainment unit.

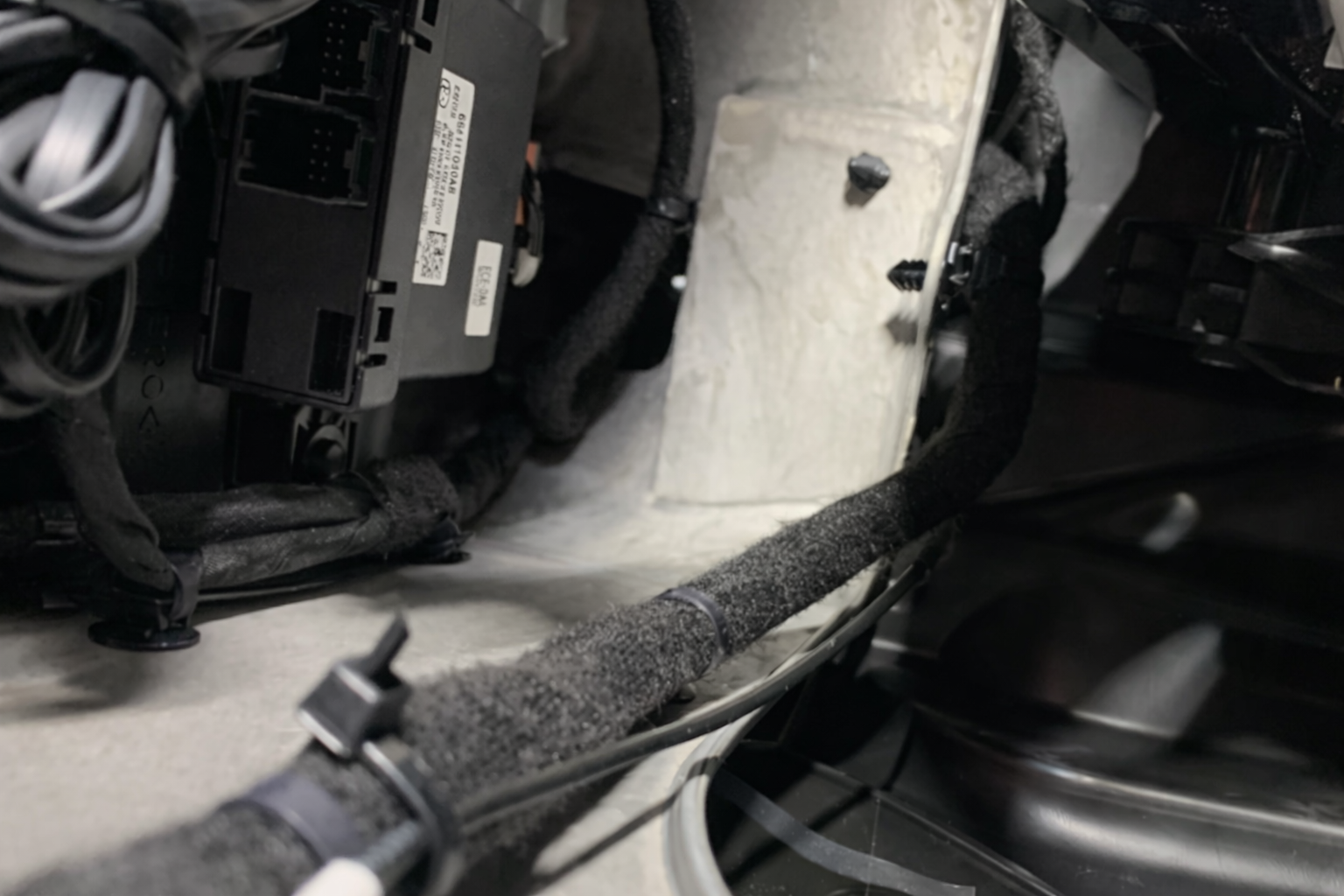

Jeep Grand Wagoneer (2022-2024)
On the 2018 through 2024 Jeep Grand Wagoneer, the security gateway is behind the center console/dash area

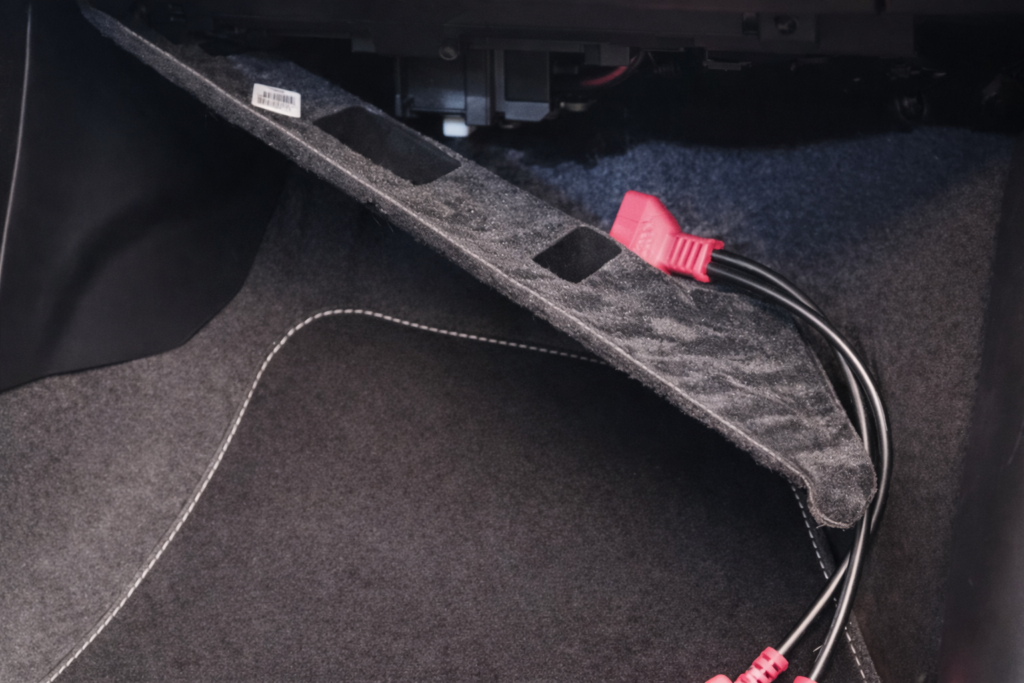

Jeep Renegade (B1) (2018-2023)
On the 2018 through 2023 Jeep Renegade (B1), the security gateway is behind the glovebox.
Jeep Wrangler (JL) (2018-2023)

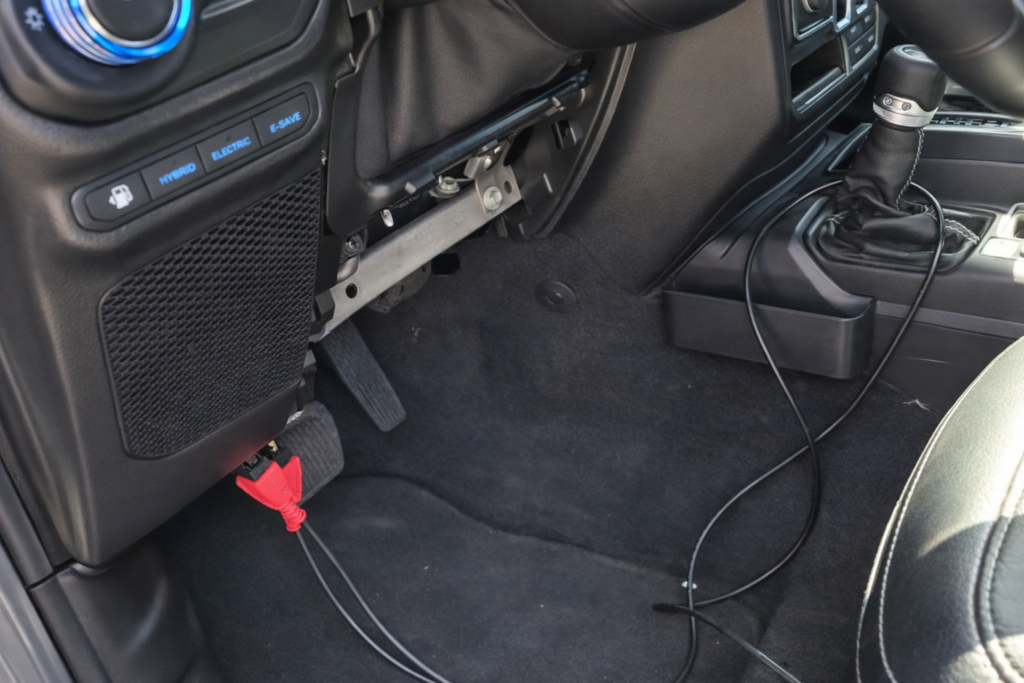

On the 2018 through 2023 Jeep Wrangler (JL), the security gateway is near the left side of the steering column, behind the OBD II port.
Fiat Security Gateway Module
Fiat Pulse (2022-2023)

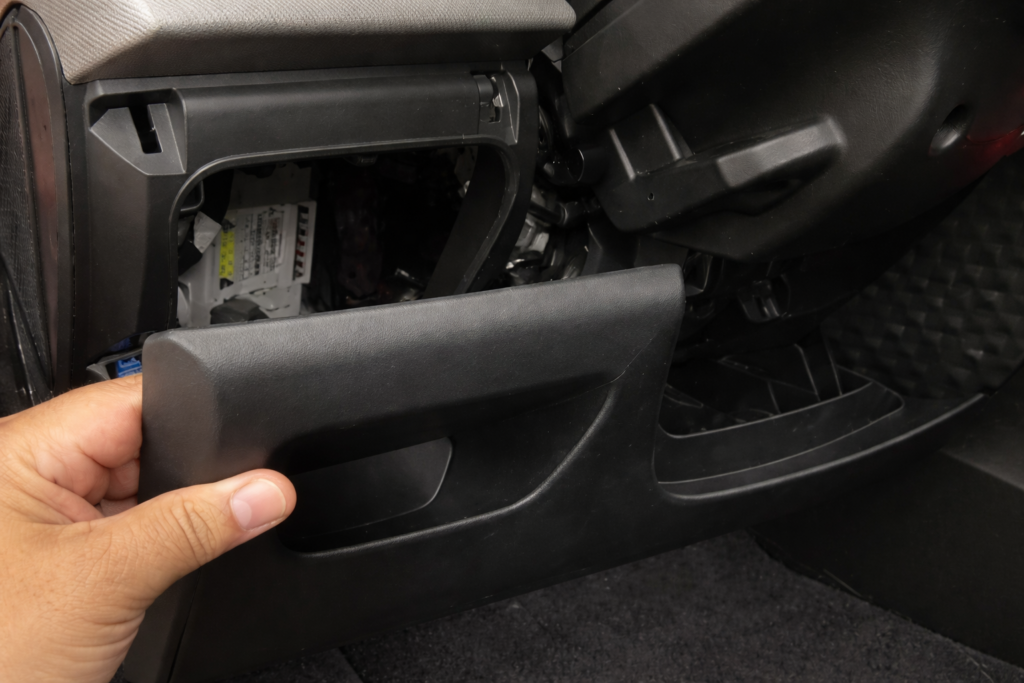

On the 2022 through 2023 Fiat Pulse, the security gateway is above the OBD-II port and behind the fuse box/lower instrument panel.
Fiat STRADA (2020-2023)
On the 2020 through 2023 Fiat STRADA, the security gateway is behind the glove box or behind the radio unit.
Alfa Romeo Security Gateway Location

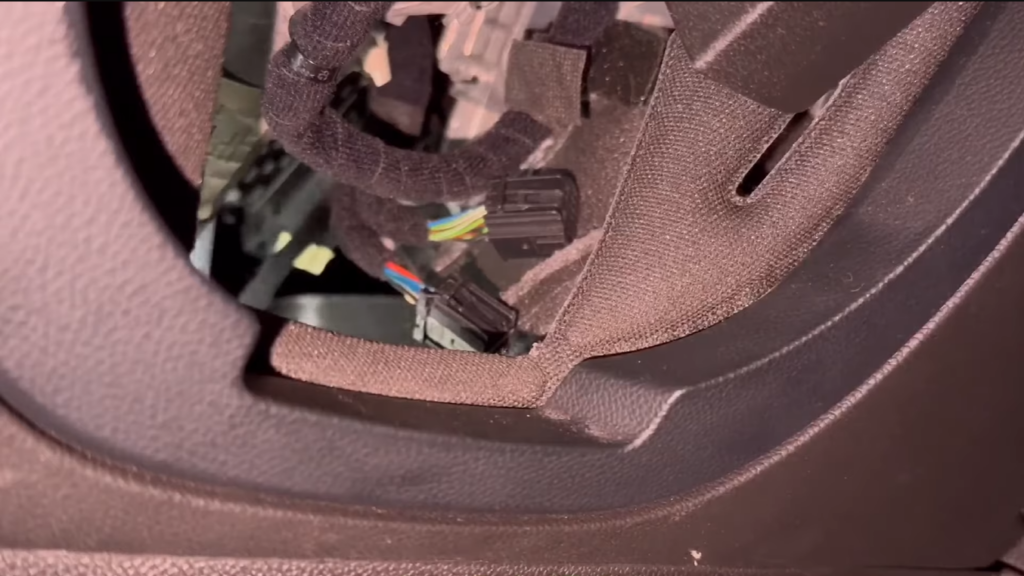

Alfa Romeo Giulia (2018-2024)
On the 2018 through 2024 Alfa Romeo Giulia, the security gateway is behind the steering column and to the right.
Alfa Romeo Stelvio (2017-2024)
On the 2017 through 2024 Alfa Romeo Stelvio, the security gateway is behind the steering column and to the right.
