Replacing the Oxygen Sensor of Acura Vehicle

Replace Acura Oxygen Sensor O2 Sensor

Does your vehicle sound rough, and the check engine light (P0134) is on? Learn how to fix it by replacing the Oxygen Sensor of your Acura vehicle.

Acuras equipped with a four-cylinder engine have two oxygen sensors, an upstream and a downstream sensor. The upstream sensor is before the catalytic converter (Bank 1 Sensor 1), and the downstream is after the catalytic converter (Bank 1 Sensor 2). Acuras equipped with the 3.5L engine have two catalytic converters and four O2 sensors. In the following guide, you will find instructions on changing the upstream oxygen sensor on Acura vehicles.

What you will need

  • ACURA Oxygen Sensor,
  • Oxygen Sensor Tool
  • Mechanic Metric Toolset

Procedure

Park the ACURA and open the hood. The following video shows you how to open the hood on your Acura.


Disconnect Negative Terminal. Locate the battery on the driver’s side of the engine bay and disconnect the negative battery terminal. Use a 10mm socket to loosen the nut on the black negative (-) cable and pull the cable away from the battery post.

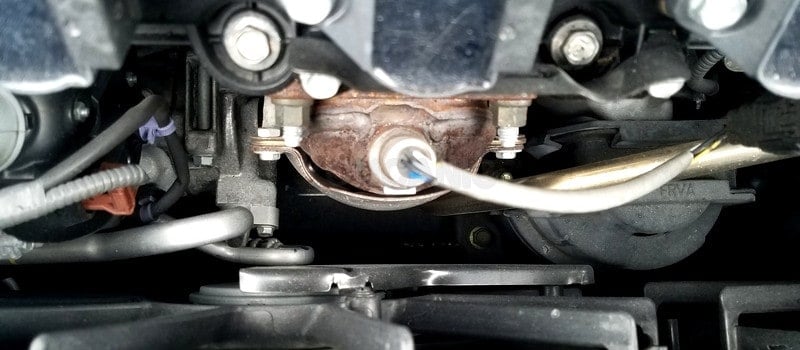

Locate the O2 Sensor on the exhaust manifold.oxygen snesor tlx acura oxygen location


Disconnect Sensor. Press the connector and pull it away to unplug the oxygen sensor. ACURA model disconnect oxygen sensor wire harness


Place the oxygen sensor socket on the sensor and break it loose. Removing the oxygen sensor on an old ACURA may be difficult at first due to rust. If the sensor doesn’t come off, spray penetrating oil near the threads and wait at least 15 minutes. ACURA model oxygen sensor socket

Install the new oxygen sensor. Tighten the new ACURA oxygen sensor to the recommended torque using a torque wrench. Typical torque settings are provided below.


Connect the oxygen sensor wire harness by plugging it in until you hear it click. If you use a universal oxygen sensor, you will need to use the diagram with the sensor to find out which wires to splice. connect wire to finish install ACURA model oxygen sensor

Torque Specifications

Torque Acura oxygen O2 sensor to 44nm/33 lb-ft.

Applications

This general guide applies to Acura models such as

  • CDX
  • CL
  • VSX
  • EL
  • ILX
  • Integra
  • Legend,
  • MDX
  • NSX
  • RDX
  • RL RLX
  • RSX
  • SLX
  • TL TLX
  • TSX
  • Vigor, ZDX

Note that Acura vehicles can have up to four oxygen sensors.

Symptoms

The most common symptoms that you have a bad oxygen sensor are:

  • Check Engine Light is ON
  • A decrease in fuel economy
  • Engine Hesitation or misfire
  • Rough Idling

Oxygen Sensor Replacement Cost

The cost to replace the Acura oxygen sensor is $30-$120. Changing the oxygen sensor at the dealer can cost between $350 and $600. The cost of changing an Acura oxygen sensor at auto repair shops ranges from $250 to $450.

We hope you find the Replace Acura Oxygen Sensor O2 Sensor guide helpful. Looking to save money by replacing an Acura O2 sensor yourself? Check out these Acura maintenance and troubleshooting guides for more help.
