Mercedes-Benz S-Class W221 Completely Dead
A 2008 S550 Mercedes we were working on was completely dead. No interior lights were working. Key lock unlock would not work. We fully charged the starting battery, but that still didn’t fix the problem. The starting battery is located in the engine bay on the passenger side.

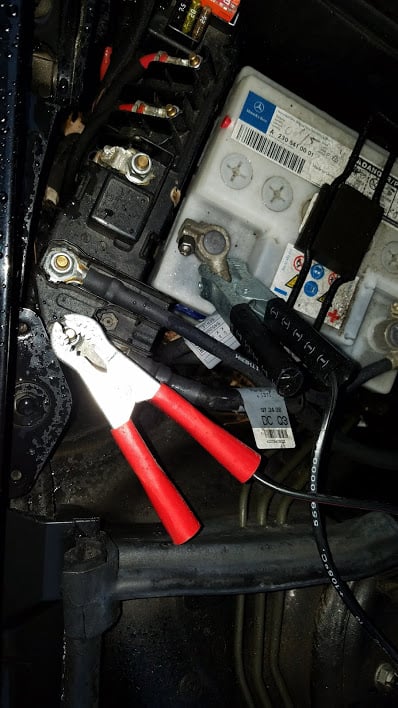

The problem, in this case, was the accessory battery mounted in the back. This is a small 12-volt battery that is mounted between the rear back seat and the trunk. To fix this problem, we connected a battery charger. The battery charger can be connected to the brass pin near the starting battery.
You will need to remove the long plastic cover and see a thin, tall brass pin. We connected the positive clamp to this pin and the negative clamp to bare metal on the car. Allow the car to charge for at least 5 hours, then try to start it.
🔧 Stop paying the dealer for every warning light
Get dealer level diagnostics at home with the YOUCANIC Full System Scanner.
- ✔ Works with all makes and models, including most luxury brands
- ✔ Topology map view shows all vehicle modules on one screen for faster diagnostics
- ✔ Bi directional controls to test fans, pumps, actuators and more so you do not have to guess
- ✔ Special resets and calibrations such as ABS bleed, EPB service, battery registration and more
- ✔ Free lifetime updates with no recurring fees
If the car is dead again, you may have a parasitic draw or an auxiliary battery that doesn’t hold a charge. Be extremely careful when connecting the positive to the brass pin. The pin is very close to the fender, and you may cause a short.
We hope you find the Mercedes-Benz S-Class W221 Completely Dead guide helpful. Check these troubleshooting and repair guides for more help on your Mercedes-Benz.
