2021 Silverado 6.6L Duramax Cold Start Whistle – Diagnosis & Fix

Customer Complaint

A customer brought in their 2021 Silverado 6.6L Duramax complaining about a high-pitched whistle during cold starts, most noticeable under moderate to heavy throttle at low speeds. They had previously taken the truck to another shop, but no one was able to identify the source of the noise. With no warning lights or performance issues, the problem was easy to overlook, but the customer knew something wasn’t right. Determined to get answers, they brought the vehicle to us for a more in-depth diagnosis.

Diagnosis

I test-drove the vehicle and noticed a high-pitched whistle from the engine when cold. This noise can be duplicated at lower speeds under moderate to heavy throttle application.

Initial Diagnostic Scan

• Connected the scan tool and scanned the vehicle. No fault codes found.

Charge Air System Inspection

Inspect the Charge Air system for loose clamps, torn boots, or damaged components. No visible damage was found. Install a smoke generator at the intake air temperature sensor port and pump smoke into the intake and charge air system. Inspect all pipes and hoses for smoke escaping. The intake system on the charge air side is intact and operating as designed.

Exhaust System Inspection

Next, inspect the exhaust system for leaks, loose or missing fasteners, and damaged components. Soot buildup is present on the driver side heat shield for the turbo inlet pipe. Gain access to the heat shield and remove it, and inspect and verify the soot buildup.

Smoke Test and Leak Location

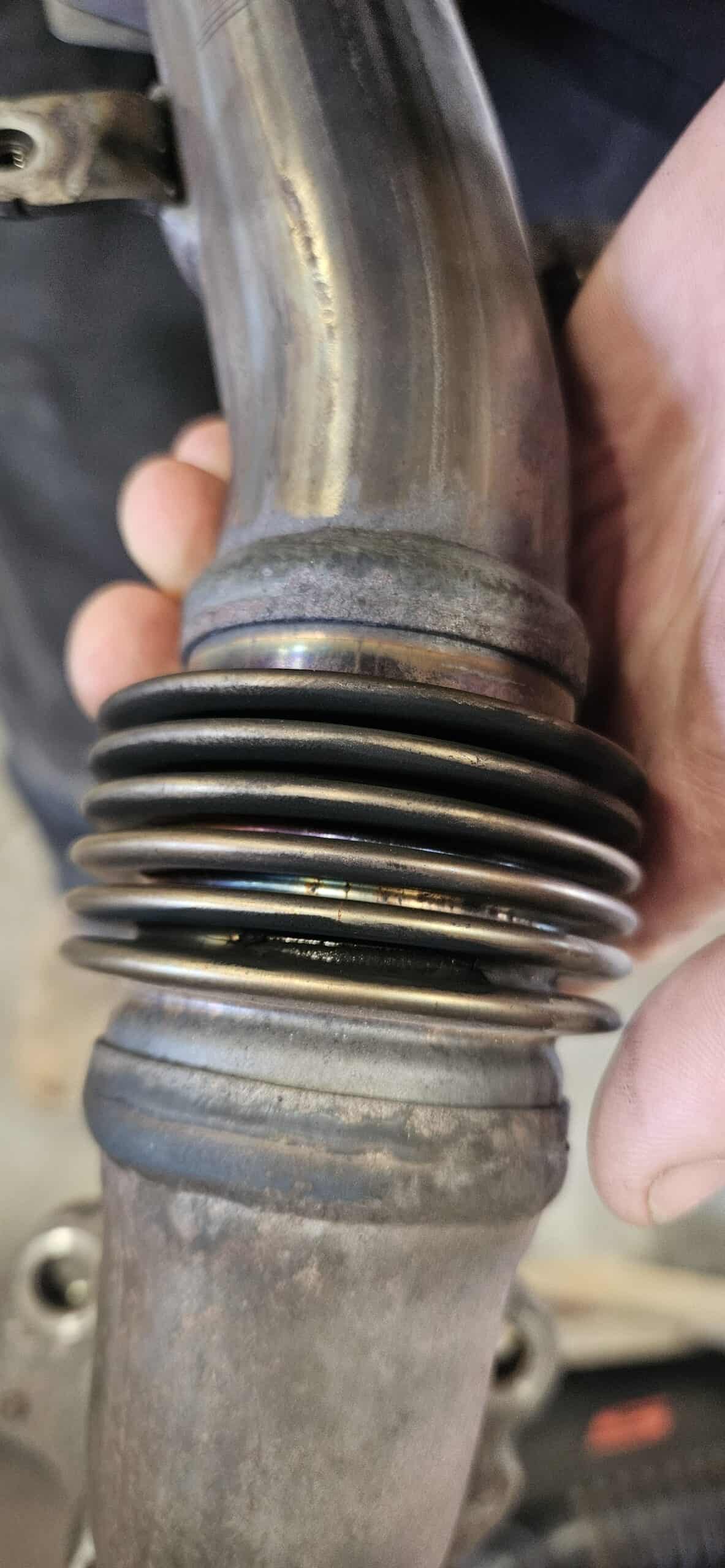

Install a smoke generator in the exhaust system at the tailpipe and inspect the system for smoke escaping. We found smoke leaking from the left driver-side turbo inlet pipe at the flex portion of the pipe. Below is a close-up of the cracked flex pipe where the leak was happening.

Repair Recommendation

Once I removed the turbo inlet pipe and inspected the crank found in it near the flex portion of the pipe, it was time to fix the issue. To fix the problem…
