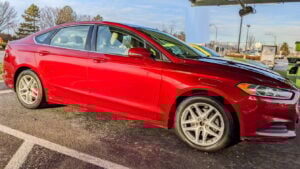

The Ford Fusion, spanning the 2013-2020 model years, continued to evolve as a versatile midsize sedan, offering a blend of style, comfort, and technology. Its exterior design adopted a sleek and modern appearance, setting it apart from the competition in its segment. The interior featured an ergonomic layout with high-quality materials and advanced infotainment systems. Ford’s SYNC system became more intuitive, allowing for improved connectivity and voice control. The Fusion also maintained a reputation for safety, with various available driver assistance features like adaptive cruise control and blind-spot monitoring. In addition to traditional gasoline engines, it offered hybrid and plug-in hybrid variants, catering to eco-conscious consumers. Its balanced handling and comfortable ride made it suitable for daily commuting and longer journeys. Overall, the Ford Fusion from this era was a well-rounded midsize sedan that appealed to many drivers due to its stylish design, technological advancements, and eco-friendly options.



Ford Fusion specification, engine oil capacity, spark plug gap, safety rating, fuel consumption, transmission, and light bulb sizes.

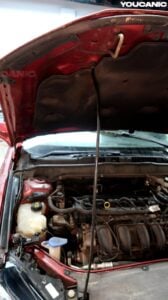

Engine 1.6L 4-Cylinder DOHC

  • Recommended oil viscosity: 5W-20
  • Oil certification: API
  • Drain plug torque: 21 ft-lbs
  • Oil capacity: 5.3 quarts

Spark Plug Gap

  • 2.5L 4-Cylinder: 0.032”

Engine 2.0L 4-Cylinder DOHC

  • Recommended oil viscosity: 5W-30
  • Drain plug torque: 20 ft-lbs
  • Oil capacity: 5.7 quarts

Spark Plug Gap

  • 3.0L 6-Cylinder: 0.032”

Engine 2.5L 4-Cylinder DOHC

  • Recommended oil viscosity: 5W-20
  • Drain plug torque: 21 ft-lbs
  • Oil capacity: 5.7 quarts

Spark Plug Gap

  • 3.5L 6-Cylinder: 0.052”

Brake (and clutch–if equipped) fluid

  • Type: Motorcraft High-Performance DOT 4 Motor Vehicle Brake Fluid/ PM-1-C / WSS M6C65-A2 and ISO 4925 Class 6
  • Capacity: PM-1-C / WSS-M6C62-A or WSS-M6C65-A1

Door latch, hood latch, auxiliary hood latch, door hinges, striker plates, seat tracks, and fuel filler door hinge

  • Type: Multi-Purpose Grease (Lithium grease) XG-4 or XL-5 or equivalent / ESB-M1C93-B

Lock cylinders

  • Type: Motorcraft Penetrating and Lock Lubricant XL-1

Automatic transmission fluid

  • Type: Motorcraft® MERCON® LV ATF XT-10-QLV MERCON® LV
  • Capacity: 9.0 qt (8.5 L)

Rear differential (AWD) fluid

  • Type: Motorcraft SAE 80W-90 Premium Rear Axle Lubricant / XY-80W90-QL /WSP-M2C197-A
  • Capacity: 1.2 qt (1.15 L)

Power Transfer Unit (PTU) fluid (AWD)

  • Type: Motorcraft SAE  75W-140 Synthetic Rear Axle Lubricant/ XY-75W140-QL / WSL-M2C192-A
  • Capacity: 11.8 fl oz (0.35 L)

Engine coolant

  • Type:
    • 2.0L EcoBoost
      • Motorcraft® Orange Antifreeze / Coolant Prediluted
        • VC-3DIL-B (U.S.)
        • CVC-3DIL-B
        • WSS-M97B44-D2
    • 1.6L EcoBoost
      • Motorcraft® Orange Antifreeze / Coolant Prediluted
        • VC-3DIL-B (U.S.)
        • CVC-3DIL-B
        • WSS-M97B44-D2
    • 2.5L engine
      • Motorcraft® Orange Antifreeze / Coolant Prediluted
        • VC-3DIL-B (U.S.)
        • CVC-3DIL-B
        • WSS-M97B44-D2
  • Capacity:
    • 2.0L EcoBoost:8.9 qt (8.4 L)
    • 1.6L EcoBoost: 6.9 qt (6.6 L)
    • 2.5L engine: 7.1 qt (6.8 L)

Windshield washer fluid

  • Type: WSB-M8B16-A2
    • Motorcraft Premium Windshield Washer Concentrate (U.S.) Premium Quality ZC-32-A (U.S.)
    • Windshield Washer Fluid (Canada) CXC-37- (A, B, D, and F)
  • Capacity: 101 oz (3.0L)

Fuel (FWD)

  • Capacity:  16.5 gal (62.5 L)

Fuel (AWD)

  • Capacity:  17.5 gal (66.2 L)

A/C Refrigerant

  • Type:
    • 2.5L Engine (EXCEPT E100)Motorcraft R-134a Refrigerant
    • 1.5L/1.6L, 2.0L and 2.5L (E1000 Engine): Motorcraft R-134a Refrigerant
      • YN-19 (U.S.)
      • CYN-16-R (Canada)
      • WSH-M1C231-A
  • Capacity:
    • 2.5L Engine (EXCEPT E100) :1.50 lb (0.68 kg)
    • 1.5L/1.6L, 2.0L and 2.5L (E1000 Engine): 1.23 lb (0.56 kg)

A/C Refrigerant Compressor Oil

  • Type: Motorcraft PAG Refrigerant Compressor Oil / YN-12-D / WSH-M1C231-B
  • Capacity: 5.2 oz (153.8 ml)



  • 1.5 L EcoBoost I4
  • 1.6 L EcoBoost I4
  • 2.0 L EcoBoost I4
  • 2.0 L Duratec I4 (Hybrid only)
  • 2.5 L Duratec I4
  • 2.7 L Ecoboost V6 (Sport only)


  • 6-speed Ford B6 manual (1.6 EcoBoost only)
  • 6-speed Ford 6F automatic (all engines)
  • eCVT: Ford HF35 (hybrid and PHEV)

Fuel Consumption


Safety Ratings

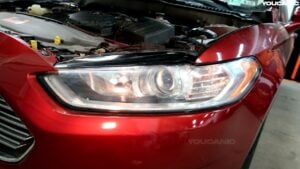

Front Lights

  • Front Fog Light Bulb:
    • H11-55W
  • Front Sidemarker Light Bulb: LED
  • Front Turn Signal Light Bulb: 12181NA
  • High Beam Headlight Bulb: H7LL
  • Low Beam Headlight Bulb: H11LL

Rear Lights

  • Back Up Light Bulb: 921
  • Brake Light Bulb: LED
  • Center High Mount Stop Light Bulb: LED
  • License Plate Light Bulb: 168
  • Parking Light Bulb: 168
  • Rear Sidemarker Light Bulb: LED
  • Rear Turn Signal Light Bulb: LED
  • Tail Light Bulb: LED

Interior Lights

  • Dome Light Bulb: LED
  • Map Light Bulb: LED
  • Trunk Light Bulb: 168
