Need to check the Fuses of your Mitsubishi Outlander? Check the list below to see all the fuses on your Mitsubishi Outlander.

Interior Fuses

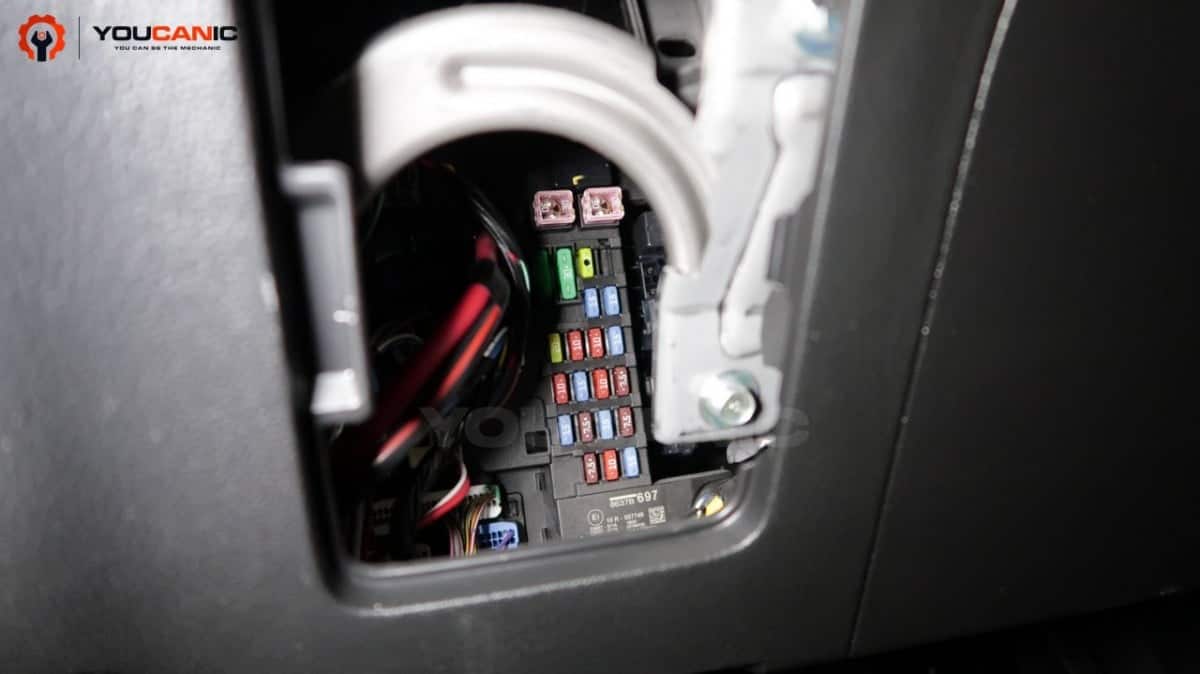

Mitsubishi outlander interior fuse location
Mitsubishi outlander interior fuse location

FuseSystemRating
1Power window control30A
2Defogger30A
3Heater30A
4Windshield wipers30A
5Door locks20A
6Rear fog light10A
712V power outlet15A
8Rear window wiper15A
9Sunroof20A
10Ignition switch10A
11Option10A
12Hazard warning flasher15A
134-wheel drive system10A
14Stoplights (Brake lights)15A
15Gauges10A
16SRS airbag7.5A
17Radio15A
18Control unit relay7.5A
19Interior lights (Room lights)15A
20Back-up lights7.5A
21Heated outside rearview mirrors7.5A
22Outside rearview mirrors10A
23Cigarette lighter/12 V power outlet15A
24Charge7.5A
 Heated steering wheel15A
25Power seat (Driver seat)30A
26Heated seats30A
27Power seats(Passenger seat)30A

Main Fuse Box

Mitsubishi outlander fuses
Mitsubishi outlander fuses
Mitsubishi outlander fuses

The following fuses can be found in the main fuse box in the engine bay.

FusesElectrical systemCapacity
SBF1Air conditioning condenser fan motor 30A
 VLC40A
SBF2Starter30A
SBF3Air conditioning condenser fan motor30A
SBF4Radiator fan motor40A
SBF5Anti-lock braking system40A
SBF6Electric parking brake50A
SBF7Anti-lock braking system30A
BF1Power liftgate30A
BF2Audio system amplifier30A
BF3IOD30A
BF4Diesel30A
F1Automatic transaxle20A
F2Wiper de-icer15A
F3Electric parking brake7.5A
F4Daytime running lights10A
F5Front fog lights15A
F6Air conditioner10A
F7Headlight washer20A
F8Security horn20A
F9Horn10A
F10ETV15A
F11Alternator7.5A
F12Engine7.5A
F13ENG/POWER20A
 Fuel line heater25A
F14Fuel pump15A
F15Ignition coil10A
F16ENG/POWER10A
F17Headlight(high beam)(left)10A
F18Headlight(high beam)(right)10A
F19Headlight(low beam)(left)(LED)20A
F20Headlight(low beam)(right)(LED)20A
F21Headlight(low beam)(left)(Halogen)10A
F22Headlight(low beam)(right)(Halogen)10A
F23Battery current sensor7.5A
FuseElectrical systemCapacity
SBF1Electric parking brake30A
SBF2Electric parking brake30A

We hope you find the 2014-2020 Mitsubishi Outlander Fuse List guide helpful. Check these troubleshooting and repair guides for more help on your Mitsubishi.
