Nissan Rogue Front Bumper Replacement

2017+ Nissan Rogue Sport Front Bumper Replacement

Is the front bumper of your Nissan Rogue broken? Learn how to fix the problem by replacing your vehicle’s front bumper. This guide is a step-by-step procedure for replacing the front bumper on a Nissan Rogue Sport 2017+.


What you will need

Bestseller No. 1
BUMPERS THAT DELIVER - Primered, Front Bumper Cover Fascia for 2008 2009 2010 Nissan Rogue 08 09 10,...
BUMPERS THAT DELIVER – Primered, Front Bumper Cover Fascia for 2008 2009 2010 Nissan Rogue 08 09 10,…
Direct Fit OE Replacement Part.; Ships Same Business Day if Ordered by Noon (12pm EST).; Lifetime Warranty.
$150.99
  • Nissan Rogue Front Bumper
  • Floor Jack
  • Jack Stands
  • Fastener Remover Tool
  • Philips Screwdriver
  • Mechanic Metric Toolset
    • 10mm 3/8″ Socket
    • 3/8″ Ratchet Wrench

Removal Video

Procedures

  1. Park the vehicle on ground level.The Nissan Rogue Sport 2017+.
  2. Jack up the vehicle’s front and support it with jack stands.
  3. Remove the engine splash shield by pulling out all the push clips holding the engine splash shield. Use a fastener remover tool to remove the push clips.Removing the engine splash shield of the Nissan Rogue Sport.
  4. Remove the two screws holding plastic trim on the front fender. Use a Philips screwdriver and turn it counterclockwise to remove the screws.The location of the two screws holding the plastic trim on the fender.
  5. Once the screws are removed, pull the plastic trim out from the vehicle’s fender.Removing the plastic trim on the vehicle's front fender.
  6. Remove the 10mm bolt inside the edge of the front bumper by turning it counterclockwise using a 10mm socket.Removing the 10mm bolt inside the edge of the front bumper.
  7. Pull the edge of the front bumper out from the fender and headlight assembly.Pulling the edge of the front bumper out from the fender.
  8. Repeat procedures 4-7 on the other side of the vehicle.Removing the plastic trim on the vehicle's front fender.Removing the 10mm bolt inside the edge of the front bumper.Pulling the edge of the front bumper out from the fender and headlight assembly.
  9. Remove the bumper support bracket by removing the push clips and screws holding to it. Use a Philips screwdriver and fastener remover tool to remove the screws and push clips. Removing the bumper support bracket out from the vehicle.
  10. Remove the two push clips behind the front bumper grille. Use a fastener remover tool to remove the push clips.Removing the two push clips behind the front bumper's grille.

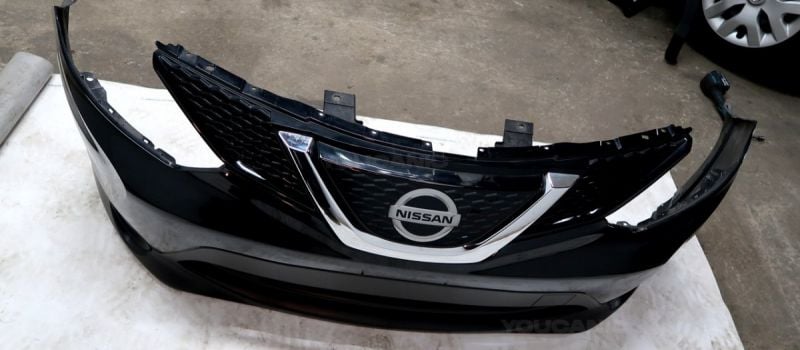

  11. Lift and remove the front bumper from the vehicle.Removing the front bumper of the Nissan Rogue Sport.Removing the front bumper of the Nissan Rogue Sport.

Installation Video

Procedures

  1. Line up the new/replacement front bumper to the vehicle and press it in to set the tabs holding to the front bumper.Installing the new/replacement front bumper of the Nissan Rogue Sport.Installing the new replacement front bumper of the Nissan Rogue Sport.
  2. Reinstall the two push clips behind the bumper grille by pressing the push clips into their installation ports.Reinstalling the two push clips behind the bumper grille.
  3. Line up the edges of the front bumper to the channels on the headlight assembly and fender. Then press the front bumper in until it snaps into place.Pushing the front bumper's edges until it snaps into place.Pushing the front bumper's edges until it snaps into place.
  4. Reinstall the 10mm bolt inside the edges of the front bumper by turning it clockwise using a 10mm socket.
  5. Place the plastic trim back to the vehicle’s fender and reinstall the two screws holding it.Reinstalling the plastic trim on the fender of the vehicle. Repeat the procedure on the other side of the vehicle.
  6. Place the bumper support bracket back on the vehicle. Then reinstall the screws and push clips to set the bumper support bracket.Reinstalling the bumper support bracket of the vehicle.
  7. Line up the engine splash shield under the vehicle and reinstall its push clips to secure it.

We hope you find the 2017+ Nissan Rogue Sport Front Bumper Replacement guide helpful. Check these troubleshooting and repair guides for more help on your Nissan.

Author

  • Rushit Hila • ASE Certified

    Rushit Hila, an ASE-certified engineer (G1 Automotive Maintenance and Repair), brings over two decades of hands-on experience in the automotive world to his writing. With a strong educational background, including a Master of Science in Engineering and a Bachelor of Science in Engineering, he has honed his skills and expertise through years of practical work. As a respected authority in the field, Mr. Hila is dedicated to offering insightful and valuable content that resonates with both vehicle owners and mechanics.
