How to Replace the Car Battery in a Volkswagen: A Step-by-Step Guide
Replacing the car battery in a Volkswagen vehicle is a straightforward process that can be done with the proper tools and a basic understanding of automotive electrical systems. To avoid potential hazards, it is important to ensure the engine is turned off and wear safety goggles before beginning the battery replacement process. This guide will walk you through the steps to safely and effectively change the car battery in your VW vehicle.
At a Glance
- Common sizes: H5 and H6 on most VW models. Match the size and specifications of the old battery.
- Tools: a 10 mm socket for the terminals and a 13 mm socket for the bracket.
- Disconnect the negative first and reconnect it last. Leave the battery monitoring sensor on the negative clamp.
- Register the new battery on VWs with stop start or a battery monitoring sensor, or it will be charged incorrectly.
- Warning lights afterwards are often stored low voltage faults. Read and clear them.
What you will need
- Replacement H5 or H6 12Volt Battery (check your owner’s manual; H5 and H6 are the most common sizes on VW vehicles)
- 10mm socket
- 13mm socket
- Ratchet wrench
- 4″ 3/8 Extension
- Battery Protector (Recommended)
- Battery Terminal Brush (Recommended)
How to Replace a Volkswagen Battery
Gather all the tools and allow the engine to cool down before you start.
- Park the Volkswagen on level ground. Turn off the ignition and set the parking brake.

- Pull the hood release under the dashboard. Go to the front of the vehicle, release the hood latch, and lift the hood. Secure the hood with the hood rod or ensure it stays up.

- Locate the battery and lift or remove the cover if your battery has one.

- Use a 10mm wrench to loosen the negative (-) battery terminal nut. Disconnect the negative battery terminal.

- Loosen the 10mm nut on the positive battery terminal. Disconnect the positive battery terminal.

- Remove the 13mm bolt for the battery bracket. Remove the bracket on the side of the battery. Be careful not to drop the bracket.

- Carefully remove the old battery from the car. Batteries are heavy; get someone to help you remove the old battery.
- Clean the battery tray area and place the new battery in the tray.
- Reinstall the battery bracket.
- Clean the battery terminals with a wire brush.
- Connect the positive battery terminal.
- Lastly, connect the negative battery.
- When you start the engine, you will notice that the traction control light and several other lights may be on. To reset the VW steering angle sensor, turn the steering wheel to the left and right several times.
The most important tip to keep in mind when replacing a Volkswagen battery is to ensure the battery is the same group size as the old battery and has very close specifications. This means Cranking Amps (CA) and Cold Cranking Amps (CCA) need to be similar to the old battery. Your owner’s manual lists the recommended battery size and specifications if the old battery is unavailable.
🔧 Find out what is actually wrong before you pay someone to guess
Dealer level diagnostics at home with the YOUCANIC UCAN-II Pro.
- ✔ Covers most makes and models, including many luxury brands. Send us your VIN and we will confirm your car before you order
- ✔ Reads every module, not just the engine, so you find the faults a basic reader says are not there
- ✔ Commands the car: test a fan or pump, bleed ABS, retract an electronic parking brake, register a battery
- ✔ No subscriptions. Free lifetime updates, so the price you pay is the whole price
- ✔ Backed by real mechanics in the USA you can email before and after you buy
Featured in The Wall Street Journal
How long does a VW car battery last?
On average, a new car battery will last four to five years. AGM batteries tend to last longer compared to lead acid. An AGM (absorbed glass mat) battery contains a special glass mat separator that wicks the electrolyte solution between the battery plates.
VW Battery Replacement Cost
The average cost to replace a Volkswagen battery at the dealer or mechanics is between $187 and $280. Doing it yourself, the battery alone typically costs $85 to $150, plus the cost of registering it if your car needs that. Many auto parts stores will install the battery for free if you buy it from them, although most cannot register it to the car.
Can I replace a Volkswagen battery myself?
Yes, you can replace the battery in your Volkswagen car yourself. Replacing the battery is a simple process that can be done with the right tools and a basic understanding of automotive electrical systems. However, following proper safety procedures and consulting your car’s owner’s manual for specific instructions for your vehicle model is important.
Do Volkswagen batteries need to be programmed?
Yes, on most modern Volkswagens it does, and this is the step most often skipped. Any VW with stop start, and many built in roughly the last fifteen years, uses a battery energy management system that tracks the age and condition of the battery and adjusts the charging voltage accordingly. It deliberately undercharges an older battery to protect it from gassing.
Fit a new battery without telling the car and the system carries on using the profile of the worn out one it believes is still installed. The new battery is then permanently undercharged, sulfates and fails long before its warranty expires. People usually blame the battery brand. The coding is what was missing.
Registering the battery means writing its serial number, its capacity in amp hours, its technology and its manufacturer into the module with diagnostic software. If the chemistry changed, for example a conventional flooded battery replaced with an AGM, that has to be recorded too, because the charging strategy for the two is different. The procedure takes a couple of minutes with the right tool and cannot be done with a basic code reader.
Older Volkswagens without stop start and without an intelligent charging system genuinely do not need it, so the answer does depend on the car. If you are unsure, the quickest check is whether the vehicle has stop start or a battery monitoring sensor clamped to the negative battery terminal. If either is present, register the battery. A full system scanner that supports Volkswagen can perform the registration, and it is worth doing before you fit an expensive battery rather than after it has failed.
Do not clamp the ground lead to the battery negative post
Related to the point above, and worth knowing before you disconnect anything. If your Volkswagen has a battery monitoring sensor, it is the small module bolted directly to the negative battery terminal. Everything the charging system knows about the battery passes through it.

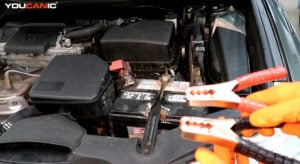

Two consequences follow. When you disconnect the battery, release the clamp from the post in the normal way rather than unbolting the sensor from the clamp, and make sure the sensor is refitted exactly as it came off. And if you ever jump start the car, connect the ground lead to the designated ground point in the engine bay rather than to the battery negative terminal, because clamping past the sensor hides the current from it and can damage it.
What to expect once power is restored
Expect the clock and the radio presets to be lost, and on some models the radio to ask for a security code, so find that before you start. The automatic up and down function on the windows and the sunroof is commonly lost and is restored by holding each switch at the end of its travel for a few seconds in each direction.
Modules also log low voltage faults while the power is off, and those do not always clear themselves. A warning light that appeared immediately after the battery change is usually one of those rather than a new problem, so read and clear the codes before chasing anything. On some models the steering angle sensor also needs recalibrating, which shows up as an ESP or traction control light that will not go out.
Finally, work out why the old battery died. One that gave five years simply reached the end of its life. One that failed at two is telling you something else, and fitting a replacement without finding out means doing this again next year. Have the charging output measured and check for a parasitic drain if the car goes dead after standing for a few days, since a module that will not go to sleep will flatten a brand new battery overnight.
Conclusion

When replacing a Volkswagen car battery, it’s important to take safety precautions such as wearing protective gear and turning off the engine and all electrical systems. Ensure you have the correct replacement battery by checking the owner’s manual or the battery specifications under the hood. Label the cables before removing them, and clean the battery terminals and cable ends to prevent corrosion. Tighten the cable connections securely, dispose of the old battery properly at a designated recycling center, and consider checking the alternator if you’ve recently had battery issues.
Related guides: Volkswagen Key Not Detected Fix
