Mercedes Turbo Supercharger Wastegate Solenoid Replacement

Is your Mercedes-Benz Check Engine Light on due to a bad turbo wastegate solenoid? By following the procedures below, learn how to fix the problem by replacing the Turbo Supercharger Wastegate Solenoid of your Mercedes-Benz.

A pulse width modulated (PWM) signal is sent from the ECU to activate the wastegate solenoid on vehicles with turbo or superchargers. Mercedes-Benz vehicles equipped with turbochargers or superchargers, check engine lights may come on if the wastegate solenoid fails or if a wire harness issue.

Symptoms

• Check engine light on
• Loss of power
• Bost limited exceeded or reduced.
• Warning message on dashboard

Related fault codes P0243, P0244, P0250, P0245, P0246.

Common Causes

Wastegate boost pressure control solenoid may sometimes be called boost bypass solenoid. In addition to the turbocharger/supercharger wastegate solenoid, the problem could also be:

★★★★★ 4.8/5 (130+ Verified Reviews)

Professional Diagnostics Made Easy All Systems. All Makes. No Subscription.

• ✓ Complete Access to All Vehicle Systems
• ✓ Free Lifetime Updates – No Hidden Fees
• ✓ Live Data + Advanced Bi-Directional Controls

Why DIYers Trust YOUCANIC:

✓ US-Based Technical Support

✓ Detailed Diagnostic Guides

✓ 30-Day Money-Back Guarantee

Read User Review & Check Price →

Free Express Shipping • Trusted by 3,500+ DIYers & Mechanics

• damaged wires
• short to ground
• bad connector
• corroded contacts
• defective ECU

What you will need

• Mercedes Wastegate Solenoid
  • PN: 0001531159, 0001531859
• 5mm Allen wrench

Procedure

1. Park your Mercedes-Benz on level ground and allow the engine to cool down.
2. Set the parking brakes, then pull the hood release under the dashboard to open the hood.
3. Remove the air intake pipe. Twist the plastic screw to unlock the plastic screw. Then pull away from the intake pipe.
4. Disconnect the electrical connector from the wastegate solenoid. First, you will need to release the small locking tab the pull on the connector.

   Verify that power is going to the solenoid. Use a digital multimeter to check if there is a 12-volt going to the solenoid. Rember to turn on the ignition when you check the voltage.

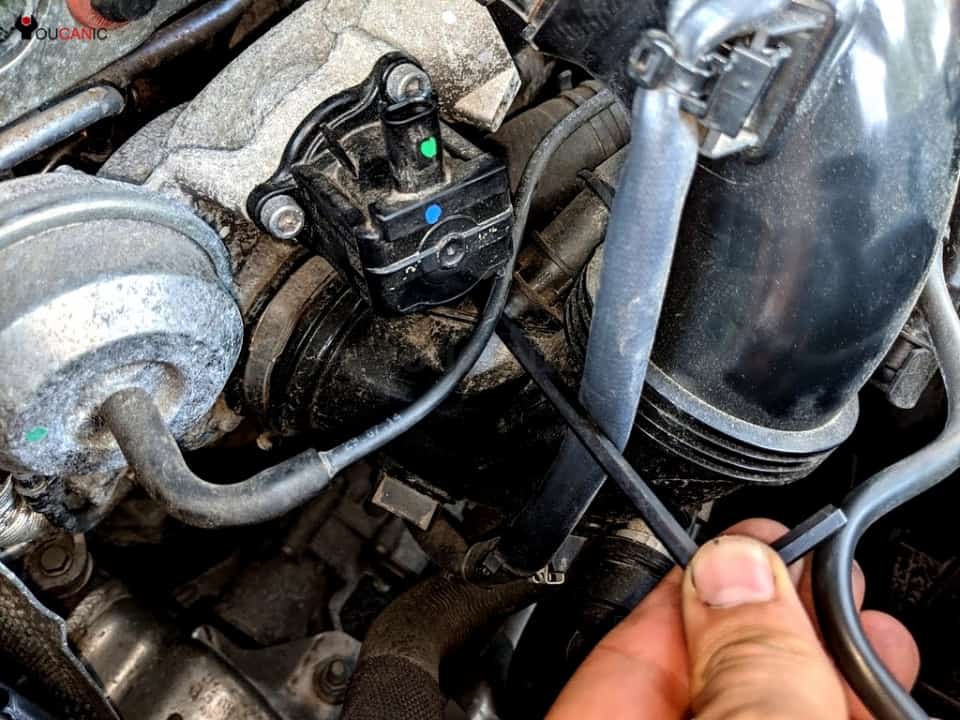

5. Remove all bolts that secure the waste solenoid to the engine block. In this case, we have three bolts that need to be removed with a 5mm Allen key.
6. Remove the wastegate solenoid from the engine.
7. Install the new Turbocharger/Wastegate control solenoid valve. Make sure the O ring or gasket is seated properly.
8. Thread all the bolts by hand, then torque to 14 ft-lb.

We hope you find the Mercedes Turbo Supercharger Wastegate Solenoid Replacement guide helpful. Check these troubleshooting and repair guides for more help on your Mercedes-Benz.
