2007 to 2012 Honda Fit Battery Replacement
Reviewed/Verified by:
Can you not start your Honda Fit due to a dead battery? Find out how to rectify the issue by replacing the battery. This guide provides a step-by-step procedure for cleaning and replacing the battery on a Honda Fit, 2007 to 2012.
At a Glance
- Vehicle: 2007 to 2012 Honda Fit
- Battery: Group 151R, at least 370 CCA
- Location: Driver’s side of the engine compartment
- Tools: 10mm wrench, terminal brush
- Order: Negative off first, negative on last
- Time: About 15 minutes
Signs Your Honda Fit Battery Is Failing
- Slow or labored cranking, especially on cold mornings
- Clicking when you turn the key or press start, with dim dash lights
- Electrical glitches: flickering lights, radio resets or random warning lights
- A battery warning light or a battery older than about four to five years
- Swollen case, leaking acid or heavy corrosion on the terminals
Confirm the Battery Is the Problem
- With the engine off, a healthy battery reads about 12.6 volts. Below about 12.2 volts it is significantly discharged.
- Most parts stores will load test the battery for free.
- With the engine running, voltage should read roughly 13.5 to 14.8 volts. If not, check the alternator before replacing the battery.
- Clean corroded terminals first; a poor connection can mimic a dead battery.
A scan tool such as the YOUCANIC UCAN-II Pro shows live battery and charging voltage on supported models, which helps you tell a worn battery from a charging problem.
What you will need
- 10mm Wrench
- Car Battery
- Group size: 151R
- Cold Cranking Amps: 370A min
- Battery Corrosion Brush
Procedure
- Pull the hood release lever below the dashboard and go in front. After, release the hood latch and raise it to open.
- Find the battery on the driver’s side of the engine compartment.
- Detach the negative terminal by unfastening the 10mm nut and lifting the terminal off the battery post.
- Remove the positive cable from the battery using the same steps mentioned previously.
- Remove the battery bracket to pull the battery out of the vehicle.
- Use an appropriate battery corrosion brush to clean the battery terminals for better terminal connections.
- Get the new battery or clean the battery post using the battery corrosion brush and recharge the battery.
- Place the battery back on the battery tray and reinstall the bracket.
- Connect the positive terminal back to the battery terminal post and retighten the 10mm nut.

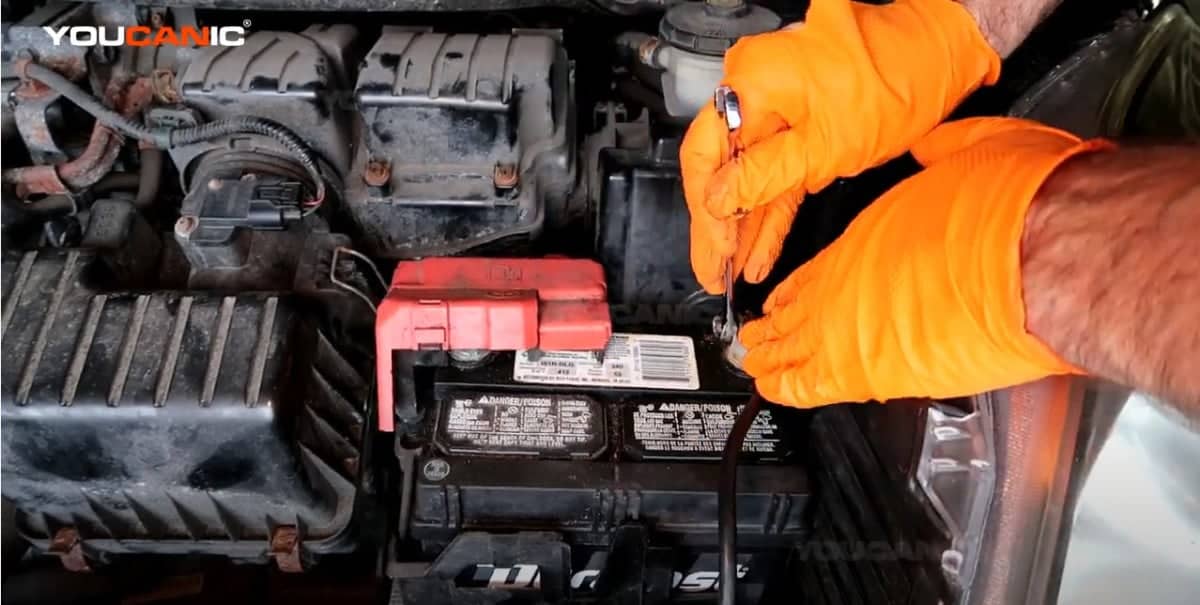

- Lastly, reconnect the negative terminal back, fasten, and secure the 10mm nut.
For more help with your Honda, check these troubleshooting and repair guides.
🔧 Find out what is actually wrong before you pay someone to guess
Dealer level diagnostics at home with the YOUCANIC UCAN-II Pro.
- ✔ Covers most makes and models, including many luxury brands. Send us your VIN and we will confirm your car before you order
- ✔ Reads every module, not just the engine, so you find the faults a basic reader says are not there
- ✔ Commands the car: test a fan or pump, bleed ABS, retract an electronic parking brake, register a battery
- ✔ No subscriptions. Free lifetime updates, so the price you pay is the whole price
- ✔ Backed by real mechanics in the USA you can email before and after you buy
Featured in The Wall Street Journal
Frequently Asked Questions
What size battery does a 2007 to 2012 Honda Fit use?
Group size 151R with at least 370 cold cranking amps.
Where is the battery in a Honda Fit?
On the driver’s side of the engine compartment.
How do I know my Honda Fit battery is bad?
Slow cranking, clicking, dim lights and a resting voltage below about 12.2 volts are common signs. A free load test confirms it.
Do I need to reset anything after replacing the battery?
You may need to reset the clock and radio presets, and enter the radio code if your car asks for one.
