Removing the door panel of the Honda Fit.

Honda Fit Remove/Reinstall Door Panel

Need to replace the door panel of your Honda Fit? By following the procedures, learn the step-by-step procedures to remove and install the door panel on a 2007-2013 Honda Fit/Jazz GE.


What you will need

Bestseller No. 1
Phoneix 4Pcs Carbon Fiber Pattern Interior Door Armrest Panel Trim Cover Set Texture ABS Accessories...
Phoneix 4Pcs Carbon Fiber Pattern Interior Door Armrest Panel Trim Cover Set Texture ABS Accessories…
【Fashion Design】 Carbon fiber printing makes your car look fancy and unique.
$28.99
  • Philips screwdriver
  • Prying tool
  • Pick tool
  • Honda fit door panel

Procedure

  1. Unlock the vehicle and open the driver’s door.

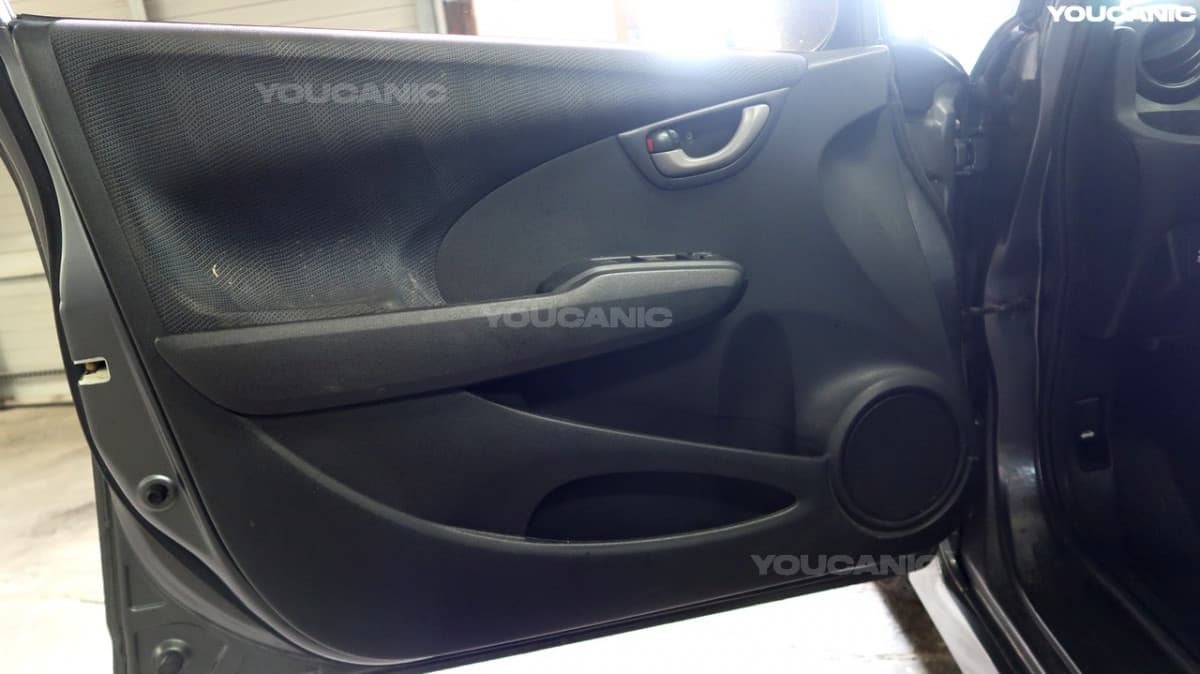

    Opening the door of the Honda Fit.

  2. Remove the screw on the inner door handle using a Philips screwdriver.
    Removing the screw on the inner door handle.

    3. Pry out the armrest cover using a flat screwdriver or a prying tool. Use the Prying tool to pull the three tabs that hold the armrest coverPrying the arm rest cover out using a pick tool.

Removing the arm rest cover on the door panel.

4. Remove the screw inside the armrest near the window switch.

Removing the screw inside the arm rest.

5. Disconnect the electrical connector of the window switch by pushing the clip and pulling the connector out.

Disconnecting the electrical connector of the window switch.

6. Pry out the edges of the door panel to unlock the tabs holding to it.

Prying out the edges of the door panel.

7. Pull the door panel out. Then twist the inner door handle and pull it out from the door panel.

Removing the inner door handle from the door panel.
Removing the door panel of the Honda Fit.

8. Hold the door panel and insert the inner door handle into the door panel.

Installing the door panel back to the door.

9. Line up the door panel to the door and push the edges of the door panel to set it into place.

Installing the door panel back to the door.

10. Reinstall the screws back to the armrest and inner door handle.

Reinstalling the screw back to the arm rest.
Reinstalling the screw back to the inner door handle.

11. Reconnect the electrical connector of the window switch.

Reconnecting the electrical connector of the window switch.

12. Line up the armrest cover back to its original position and push it in to lock it into place.

Reinstalling the arm rest cover back to the door panel.

We hope you find the Honda Fit Remove/Reinstall Door Panel guide helpful. Check these troubleshooting and repair guides for more help on your Honda.
