Hyundai Blind Spot Warning Light: Diagnosis & Fix with OBD-II Scanner

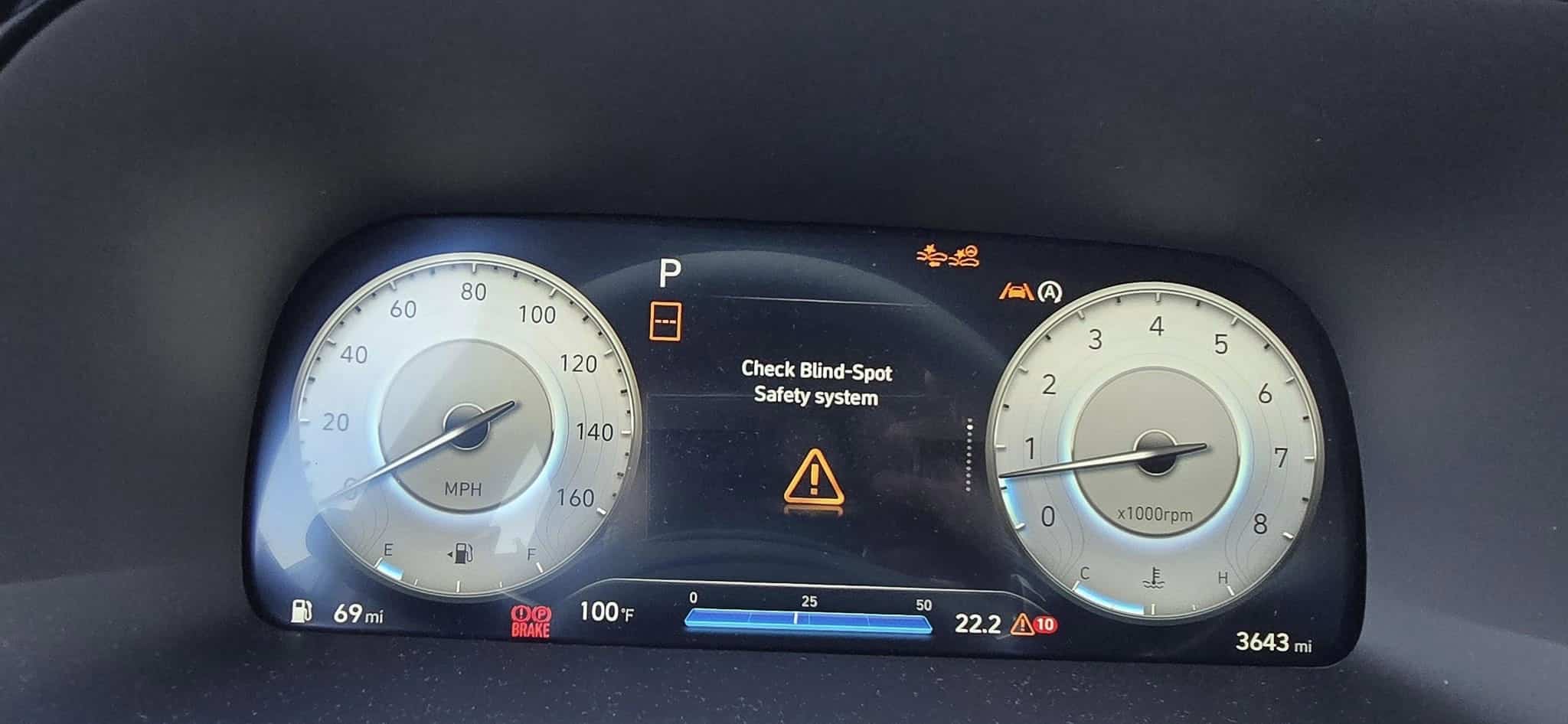

When the “Check Blind Spot Safety System” warning comes on in your Hyundai, it means there is an issue with the vehicle’s blind spot safety system. Ignoring this warning can lead to an increased risk of accidents due to compromised safety features, disrupting other driver-assistance and safety systems, and reducing the reliability of the car as a whole. It is important to diagnose and fix the problem as soon as possible.
What Does the Check Blind Spot Safety System Mean?
The Blind Spot Safety System lets the driver know when a vehicle is in their blind spot and enables braking when a collision is imminent. It consists of two features: the Blind Spot Collision Warning and the Blind Spot Collision Avoidance Assist. When the warning message “Check Blind Spot Safety System” appears on your dashboard, it means that one of these features is not functioning properly.
⚠️ Why You Should Fix It As Soon As Possible:
- Safety Risk—The risk of colliding with vehicles in the blind spot increases when the blind spot assist is malfunctioning. Without a functioning Blind Spot Safety System, the driver cannot be alerted to vehicles in that area, raising the chances of a close call or accident.
- Costly Repairs—Ignoring the issue could result in accumulated damages over time. The repair costs might include around $100 to $200 for a diagnostic check—which you could do yourself with the proper tools—$450 for a new wire harness and $1,000 or more to replace one of the rear radar sensors.
Common Causes for the Check Blind Spot Safety System Error
- Weak 12V battery: Low voltage can cause many system errors and unexpected warning lights since many safety features in modern cars require electricity. Car batteries should be replaced every 3-5 years. If you have recently replaced your battery and are experiencing electrical issues, the problem could be your alternator.
- Faulty Radar Sensor: The rear radar sensors and front-view camera could be blocked. Dirt, mud, rainwater, or snow on the rear sensors can prevent them from reading data correctly, and a dirty or damaged windscreen can cause the front-view camera to misread information. These sensors, when misaligned, can also trigger the warning message on the dashboard.
- Loose or Corroded Wires: Bad connections can cause intermittent faults, leading to warning lights appearing on your dashboard. Also check for blown fuses.
- Low Fluid Levels: Some Hyundai drivers notice the Blind Spot Warning message and the ABS and ESC lights flashing on their dashboard. Checking the brake system fluids is crucial for optimal vehicle performance.
- Malfunctioning Modules: A bad ECU or ABS control module could trigger false alerts.
- Software Update: Sometimes, the warning message is caused by a system glitch, which can be resolved with a software update at the dealership.
- Faulty Wheel Speed Sensor: Depending on the status of the ESC (Electronic Stability Control), the brake control may not operate correctly. A faulty wheel speed sensor could be the cause. It can send wrong data to control modules, causing false dashboard warnings and potentially activating safety brakes unnecessarily. Some drivers have reported that the dashboard falsely warns of an impending collision, even when the car is safely parked in the garage.
🛠️ Pro Tip: Use an OBD-II scanner to check for error codes related to the issue.
Troubleshooting & Fixes
Before taking your car to a mechanic, try these DIY fixes:
- Check Battery Health – Use a battery tester, multimeter, tool, or scanner to check for low voltage (below 12.4V). Keep track of when you last replaced your battery; car batteries typically last 3-5 years and must be replaced after that time.
- Inspect Wiring & Connections – Look for loose or frayed wires around your rear bumper, the side mirror assembly, the front-view camera, and the wire harnesses passing through these components.
- Inspect Fuses – look for damaged or melted fuses in your vehicle’s fuse box. This could be an indicator of an electrical issue in your car.
ONLY REPLACE OLD FUSES WITH NEW ONES OF THE SAME AMPERAGE. - Inspect sensors for dirt and damage. – Sensors can become damaged or dirty over time. Check the rear radar sensors in the corners of your rear bumper and front-view camera for dirt, water damage, or loose wiring, as this might be the reason for the problem.
- Top-Off Fluids – Make sure your brake fluid is at the correct level. Low brake fluid levels will affect the ABS, possibly triggering the “Check Blind Spot Safety System” warning on the dashboard.
- Use an OBD-II scanner – Read and clear error codes to see if the issue is temporary or a system glitch. Use a high-quality scanner like the YOUCANIC Scanner. Inexpensive scanners might not access the modules needed to diagnose issues like wheel speed sensor problems.
If you suspect a wheel speed sensor is causing the issue, you can easily find the faulty sensor by performing live data monitoring with your scanner while the vehicle is running.
- Reset the System – If the warning light/error message was caused by a glitch in the system, it can also be cleared by disconnecting the battery for 30 minutes.
Common OBD-II Fault Codes for Check Blind Spot Safety System
If you scan your vehicle with an OBD-II scan tool, you may see one of these codes:
- C270354 – Control Module Slave Missing Calibration
- C120D15 – Left Led Circuit Short To B
- C120B15 – Right Led Circuit Short To B Or Open
- C160A88 – BSD Local CAN bus off
- C1862-86 – Invalid signal of smart cruise control (SCC)
- C1642-81 – CAN Message failure – Brake
- C1675-81 – Signal of the wheel (FLR/FR/RL/RR) Invalid
- C1693-81 – ESC Signal Error
- C1682-86 – Wheel Speed Check/Alive counter error
- C1835-86 – CAN Signal Error IEB
- C1741-81 – ESC Vehicle Safety Management(VSM)unavailable (Check ESC)
FAQs
Can I still drive with the “Check Blind Spot Safety System” warning?
Yes, you can still drive with this message on. However, the safety feature that alerts you to vehicles in your blind spot will not be activated, especially during lane changes. This increases the risk of collision and accident. You are advised to drive with caution until the error is fixed.
How do I reset the warning message?
Battery Disconnect – Disconnect the negative terminal of the battery for about 30 minutes, then reconnect it.
OBD-II Scanner – Use an OBD-II scanner to read and clear the error codes.
Driving Cycle—Some systems reset after completing a certain driving cycle. Some newly installed modules may recalibrate or relearn independently while driving. Drive for a few miles, turn off the engine, and restart it to check if the warning comes back.
What happens if I ignore this warning?
Ignoring this warning will disable the Blind Spot Safety System, increasing the risk of accidents during lane changes. The warning message may be linked to systems like the ESC, ABS, and Collision Assist, often due to a faulty wheel speed sensor. This means there is always the possibility of more serious issues than just the warning message that flashes on your dashboard, and the only way to know is to have it checked immediately.
Do I need a mechanic, or can I fix this myself?
You can check for basic issues by following the troubleshooting steps above, inspecting dirty sensors, or loose wiring yourself. If you have an OBD-II scanner, you can use it to read error codes or reset the system. However, for deeper problems like defective sensors or wiring, you will need professional help from a mechanic or dealership.
Final Thoughts
The Check Blind Spot Safety System warning message should not be ignored, especially if you rely on it to keep you safe while changing lanes, as it could indicate a serious issue with your vehicle’s Safety Systems. By following these troubleshooting steps and scanning for fault codes, you can save time and money while ensuring your car remains safe and reliable.
