Mercedes-Benz Active Hood Bonnet Malfunction

Mercedes-Benz Active Hood Bonnet Malfunction

Is your Mercedes-Benz has an Active Hood/Bonnet Malfunction shown on your dashboard? Know the causes of why the active bonnet malfunction warning is shown on your dashboard and learn the possible solutions by following the procedures below.

Active Bonnet Malfunction See Owner’s Manual – UK, Europe
Active Hood Malfunctions See Owner’s Manual – USA

Typically, this error message is displayed when:

  • the vehicle is involved in an accident
  • during an emergency braking situation where the auto brake is engaged
  • you hit a pothole or pit on the road

The hood will usually pop up 5 cm (2 inches) at the back near the windshield. While not all Mercedes-Benz models have an active bonnet feature installed, it has become standard equipment on newer models. This feature was initially available as an option on the early 2010 models such as R172 SLK but is become standard equipment on models such as S-Class W222.

What is the active hood/bonnet?

The active bonnet system minimizes pedestrian injuries by lifting the hood’s rear edge when involved in an accident. Raising the hood creates additional space that can cushion between the hood and the engine. Active bonnet improves pedestrian protection.

How to reset Mercedes’s active hood?

mercedes active bonnet reset

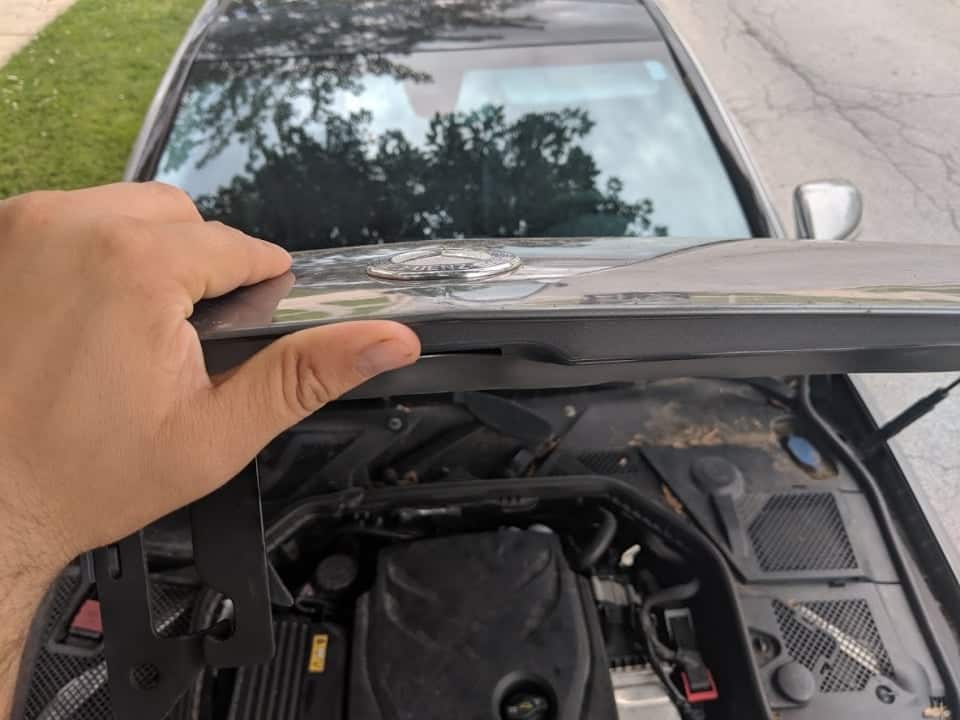

If the hood pops up at the back, follow these steps to close the hood.

  1. Pull the hood release and open the hood.
  2. Keep your hands at the front of the hood and push up until the hinges get pushed down and click.
  3. Close the hood.

If the active hood warning message was triggered, you might need to replace your Mercedes hood actuators.

It is important to have the Mercedes-Benz diagnosed before replacing any parts. Use a Mercedes-Benz scanner such as iCarsoft MB II, Foxwell for Benz, Autel MAXICOM, or YOUCANIC Full System Scanner to read and clear the fault codes from the SRS module. Once the codes are cleared, pedestrian protection will be restored.

Common Causes

The active bonnet feature is activated and controlled primarily by the SRS / Airbag module and accelerator sensors installed at the front of the vehicle.

Hood Actuator

mercedes hood actuator

The most common problem that triggers Active Hood Malfunctions See Owner’s Manual error message is the hood actuator that is either damaged or deployed after an accident.

The passenger side has a simple latch and release mechanism. The driver side has a hood latch, actuator, and microswitch.

Replacing a Mercedes-Benz hood actuator is an easy procedure. You will need a couple of screws to replace it. Clear the codes from the SRS module may also be needed depending on the issue.

Sensors

Two acceleration sensors in the bumper and one in the cross member may be damaged or disconnected. Any acceleration sensors may be the culprit if you get the error message Active Hood Malfunctions. See the Owner’s Manual and the hood is closed properly, or you were never involved in an accident.

Hood Latch

Active Bonnet Malfunction error message | Mercedes-Benz Owners

The latch that secures the hood and prevents it from opening has a built-in switch. For example, if the latch gets bent or misaligned from an accident, it may prevent the switch from operating correctly. The hood or latch switch is rarely the culprit for the Active Hood Malfunctions. See Owner’s Manual warning message.

SRS Module

mercedes slk active bonnet malfunction

If the airbag light is on, you may get an active hood warning message on the dashboard even though the hood is closed.

The issue could be because of:

  • the wire harness to the hood actuator,
  • the hood actuator has previously deployed
  • the airbag module has been unlocked with a professional diagnostic during diagnostics.

Ignited hood bonnet actuators will need to be replaced and fault codes cleared from the SRS module.

Further diagnostics

If the airbag light is on and you are getting Active Hood Malfunctions, See the Owner’s Manual error message. We recommend you start by reading the fault codes from the SRS module.

You will need a scanner such as Star Diagnostic or if that is not available, use a Mercedes-Benz-specific scanner such as:

Pay attention to fault codes related to Active Bonnet actuators.

We hope you find the Mercedes-Benz Active Hood Bonnet Malfunction guide helpful. Check these troubleshooting and repair guides for more help on your Mercedes-Benz.
