2012-2021

1 - 33 of 33 guides.

Third generation (GF/GG/ZJ/ZK/ZL)
2014 Mitsubishi Outlander (ZJ MY14) LS 2WD wagon (2016-07-07) 01.jpg
Mitsubishi Outlander (pre-facelift)
Overview
Production 2012–2022
Model years 2013–2021
Assembly Japan: Okazaki, Aichi (Nagoya Plant), Sakahogi, Gifu (Pajero Manufacturing Co., Ltd.) China: Changsha (GMMC) Malaysia: Kuala Lumpur (TCMA) Russia: Kaluga (PCMA Rus) Taiwan: Taoyuan (CMC) Thailand: Laem Chabang (MMTh, PHEV) Vietnam: Dĩ An, Bình Dương (MMV)
Designer Hideaki Kanazawa Norihiko Yoshimine and Yuichiro Ishizuka (2015 facelift)
Body and chassis
Platform Mitsubishi GS platform
Powertrain
Engine
  • Petrol
    • 2.0 L 4J11 I4
    • 2.4 L 4B12 I4
    • 2.4 L 4J12 I4
    • 3.0 L 6B31 V6
  • Petrol
  • PHEV
    • 2.0 L 4B11 I4
    • 2.4 L 4B12 I4
  • Diesel:
    • 2.3 L 4N14 I4 turbo[30]
Electric motor Meiden S61 / Y61 AC Synchronous Permanent Magnetic Motor (PHEV Version)
Transmission 5-speed manual 6-speed manual 6-speed automatic Jatco INVECS-III CVT6 GKN Multi-Mode eTransmssion (PHEV)
Battery 13.8 kWh Li-ion
Dimensions
Wheelbase 2,670 mm (105.1 in)
Length 4,695 mm (184.8 in)
Width 1,810 mm (71.3 in)
Height 1,710 mm (67.3 in)
Curb weight 1,395–1,820 kg (3,075–4,012 lb)



Engine 2.4L 4-Cylinder SOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain plug torque: 26-32 ft-lbs

  • Oil capacity: 4.5 quarts

Spark Plug Gap

  • 2.4L 4-Cylinder: 0.048"

Engine Coolant

  • Type: Mitsubishi Motors Genuine Super Long Life Coolant Premium” or equivalent

  • Capacity: 6.3 qt (6.0 L)

Oil

  • Type: ILSAC CERTIFICATION

  • Capacity: 4.5 qt (4.3 L)

Fuel

  • Capacity:16.6 gal (63 L)

Automatic transaxle

  • Capacity: 8.7 qt (8.2 L)

Continuously variable transmission (CVT)

  • Capacity: 7.2 qt (6.9 L)

Transfer oil

  • Type: Mitsubishi Motors Genuine Super Hypoid Gear Oil API GL-5 SAE 80

  • Capacity: .50 qt (0.47 L)

Differential Rear axle

  • Type: Mitsubishi Motors Genuine Super Hypoid Gear Oil API GL-5 SAE 80

  • Capacity: .42 qt (0.4 L)

Brake

  • ​​​​​​​Type: DOT3 or DOT4

​​​​​​​Washer Fluid

  • Capacity: ​​​​​​​4.8 qt (4.5 L)

​​​​​​​​​​​​​​Refrigerant (air conditioning)

  • Type: ​​​​​​​HFO-1234yf


​​​​​​​​​​​​​​​​​​​​​Powertrain

Engine

  • 2.5 L Nissan PR25DD I4
  • Petrol PHEV:
  • 2.4 L 4B12 I4 (GN0W)

Transmission

  • Jatco CVT8 INVECS-III CVT

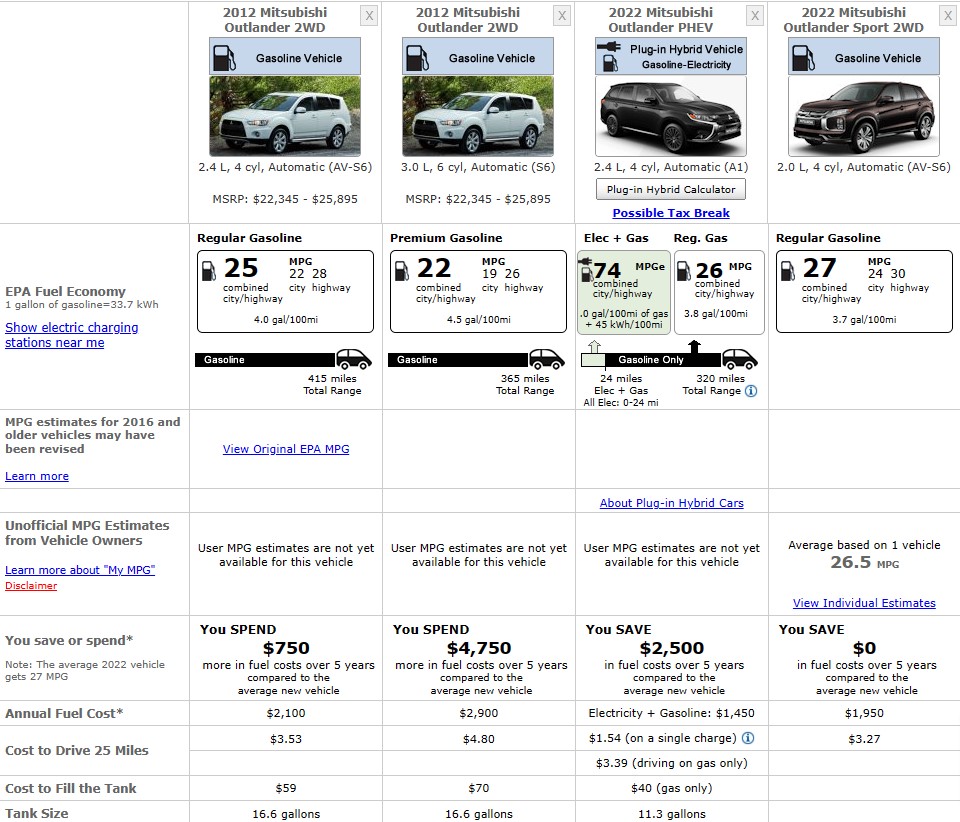

Fuel Consumption

20122022 OUTLANDER FUEL ECONOMY

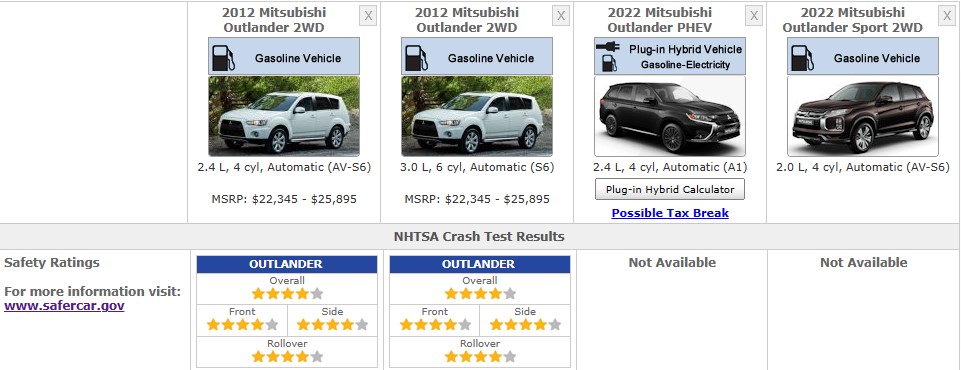

Safety Ratings

safety ratings oulander

References

  1. 2020 Mitsubishi Outlander Owners Manual
  2. Mitsubishi Outlander - Wikipedia.org
  3. US Department of Energy - FuelEconomy.gov
  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Front Lights

  • Daytime Running Light Bulb: LED

  • Front Fog Light Bulb: H16

  • Front Sidemarker Light Bulb: 2825

  • Front Turn Signal Light Bulb: 12496

  • High Beam Headlight Bulb:

    • 9005

    • LED

  • Low Beam Headlight Bulb:

    • H7-55W

    • LED

  • Stepwell Light Bulb: LED

Rear Lights

  • Back-Up Light Bulb: 921

  • Brake Light Bulb: LED

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 2825

  • Parking Light Bulb: LED

  • Rear Sidemarker Light Bulb: LED

  • Rear Turn Signal Light Bulb: 7440NA

  • Tail Light Bulb: LED

Interior Lights

  • Dome Light Bulb: DE3175

  • Floor Console Compartment Light Bulb: LED

  • Glove Box Light Bulb: 74

  • Luggage Compartment Light Bulb: DE3175

  • Map Light Bulb: DE3175

Every Month

  • Check engine oil level.
  • The function of all interior and exterior lights.
  • Check tires for wear and proper pressure.
  • Windshield washer fluid.

Every 6 Months

  • Battery connections. Clean if necessary
  • Body and door drain holes for obstructions. Clean if necessary.
  • Cooling system fluid level and coolant strength.
  • Door weatherstrips for wear. Lubricate if necessary.
  • Hinges, latches, and outside locks for proper operation. Lubricate if necessary
  • Parking brake for proper operation.
  • Safety belts and seat latches for wear and function.
  • Safety warning lamps (brake, ABS, airbag, and safety belt) for operation.
  • Washer spray and wiper operation. Clean or replace blades as necessary.

Oil Change Interval

This vehicle is equipped with an Intelligent Oil-Life Monitor that determines when you should change the engine oil based on how your vehicle is used. By using several important factors in its calculations, the  the monitor helps reduce the cost of owning your vehicle and reduces environmental waste at the same time.

Ford fusion oil change interval

This means you do not have to remember to change the oil on a mileage-based schedule. Your vehicle lets you know when an oil change is due by displaying ENGINE OIL CHANGE DUE or OIL CHANGE REQUIRED in the information display.

oil change interval

The following table provides examples of vehicle use and its impact on oil change intervals. It is a guideline only. Actual oil change intervals depend on several factors and generally decrease with the severity of use.

At every oil change interval as indicated by the information display.

Cabin Air Filter

  • Every 20000 miles

Engine Air Filter

  • Every 30000 miles

Change Engine Coolant

  • At 100000 miles

Replace Spark Plugs

  • Every 100000 miles

Inspect Accessory Drive Belt

  • Every 100000 miles

Every 150000 miles

  • Change automatic transmission fluid.
  • Replace accessory drive belt(s).
These are recommended intervals for all vehicles. Intervals in your owner's manual supersede these values.
